R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
619User Manual 1173.9163.02 ─ 62
Evaluation Range...
The "Evaluation Range..." button opens the Evaluation Range dialog that allows you to
restrict the frequency range of auto length (and loss) calculations.
5.13.2.2 Fixture Compensation dialog
This dialog allows you to correct the measurement result for the effects of a test fixture.
Access:
●
Channel – [Offset Embed] > "Offset" > "Fixture Compensation..."
●
Channel – [Offset Embed] > "One Way Loss" > "Fixture Compensation..."
Background Information
Refer to Chapter 4.6.1.5, "Fixture Compensation", on page 206.

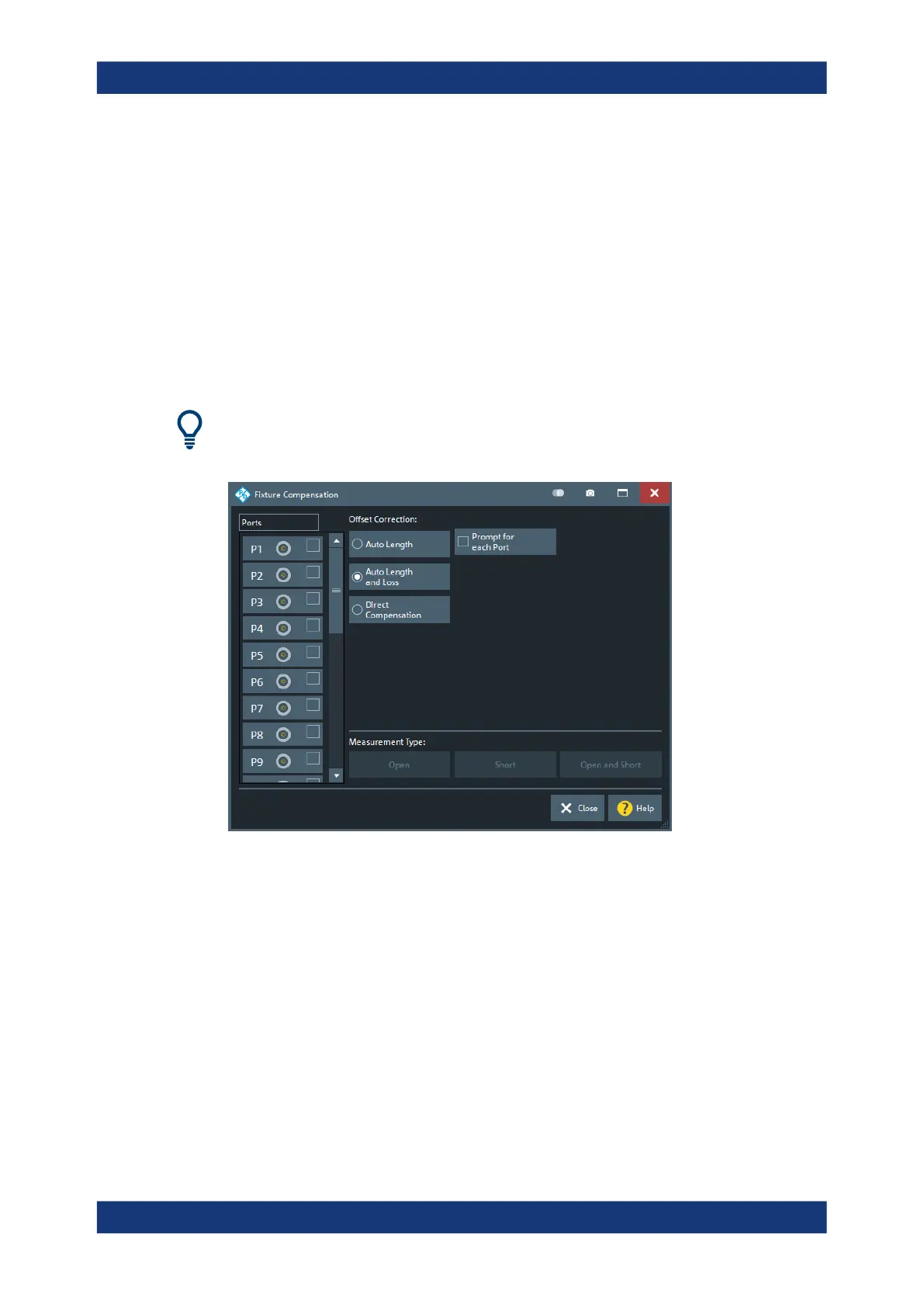

Figure 5-55: Fixture Compensation dialog (for >4 ports)
Ports
Selects the ports for whom fixture compensation data shall be acquired.
Auto Length / Auto Length and Loss
"Auto Length" or "Auto Length and Loss" implies that a global electrical length offset
and loss is determined in analogy to the general offset compensation (see Chap-
ter 4.6.1.3, "Auto Length", on page 204 and Chapter 4.6.1.4, "Auto Length and Loss",
on page 205).
Remote command:
[SENSe:]CORRection:COLLect:FIXTure:LMParameter:LOSS[:STATe]
Offset Embed softtool
