Export to File... ← Contents

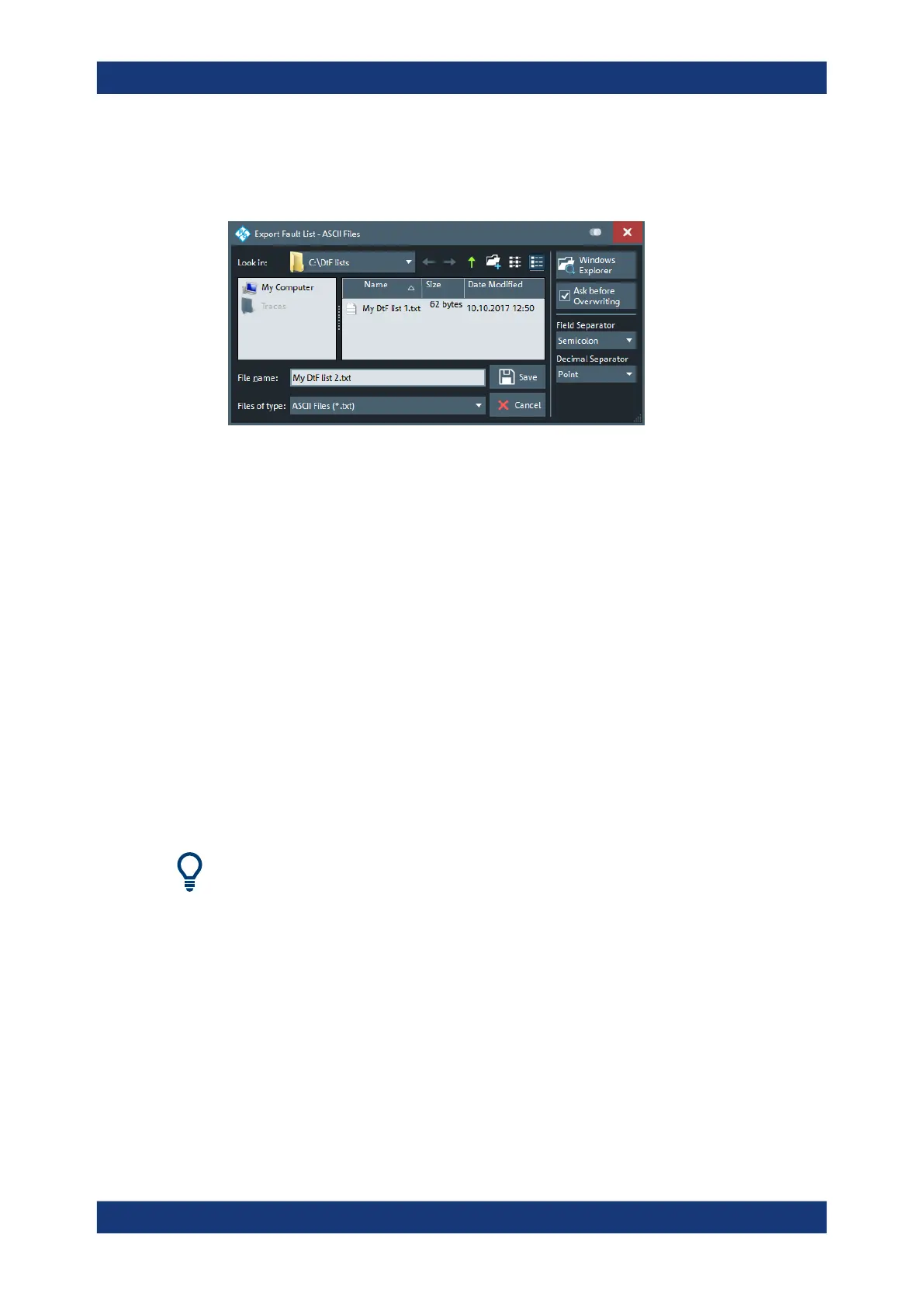

Opens a dialog that allows to export the (filtered) content of the fault list to an ASCII file
with configurable "Field Separator" and "Decimal Separator".
This CSV type file contains one line (terminated by CR+LF) per fault. With ";" as "Field
Separator" and "." as "Decimal Separator", the fault list of Figure 5-86 is exported to
1; Trc1; 457.2 mm; -8.56 dB
2; Trc1; 1.539 m; -9.24 dB
For an explanation of the possible filters, see "Contents" on page 734).
Tracking Enabled
If checked (default), the "Fault Table" on page 734 is cleared at every sweep start and
populated in real time. Uncheck "Tracking Enabled" to freeze the table contents.
5.17 Display softtool
The "Display" softtool provides all display settings and the functions for activating,
modifying and arranging different diagrams.
Access: System – [Display]
Related information
Refer to the following sections:
●
Chapter 4.1.3, "Traces, channels and diagrams", on page 88
●
Chapter 4.2.1, "Display elements of a diagram", on page 102
●
Chapter 3.3.5, "Handling diagrams, traces, and markers", on page 66
5.17.1 Diagram tab
Selects a diagram as the active diagram, defines a title, deletes or adds diagrams and
arranges them on the screen. Many of the functions are unavailable if the active recall
set contains only one diagram.
Display softtool
To Next Page
