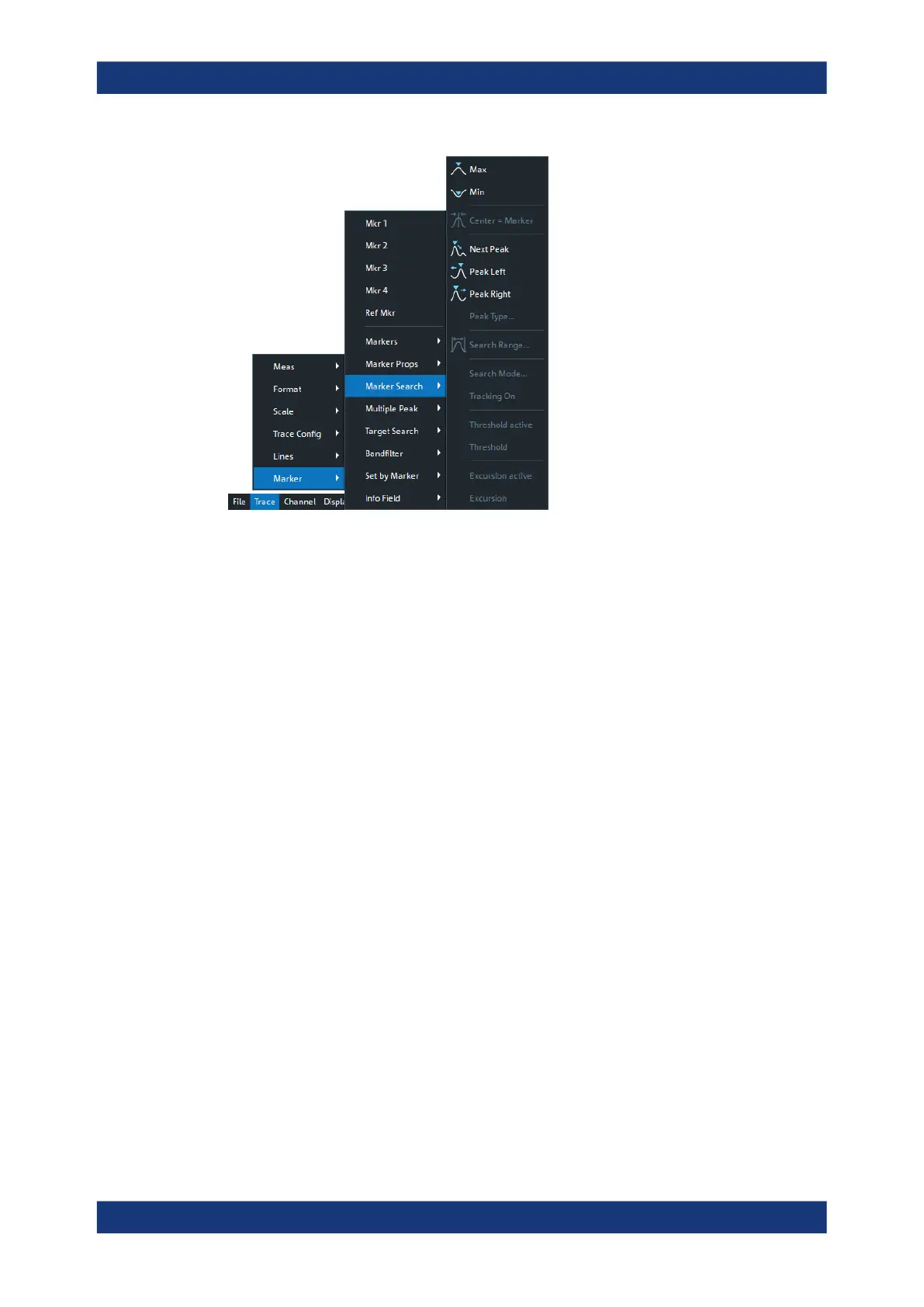

A menu command with a right arrow expands a submenu with further related set-

tings.

Example: "Marker" expands a submenu with marker-related properties.

●

A menu command with three dots appended calls up a dialog providing several

related settings.

Example: "Search Range" opens a dialog to define the search range for the

marker search.

●

A menu command with no arrow or dots initiates an immediate action.

Example: "Max" sets the active marker to the maximum of the active trace.

3.3.2.6 Hardkey panel

The (virtual) "Hard Key" panel provides on-screen access to the function keys (plus the

[Undo] and [Redo] key) that are available at the front panel of a R&S ZNB. Most of the

function keys open a related softtool. For a short description, refer to section Chap-

ter 3.2.1.2, "Function keys", on page 40.
