Make sure to deactivate "Simulation Noise" before exporting traces to file. Otherwise
your exported results comprise an "artificial" random component.
Exit
Persists the current state of all opened setups and ends the analyzer session. These
states are automatically recalled when the analyzer application is restarted.
Tip: This button is equivalent to the Windows
®
"Close window" command and to the
close icon in the title bar of the main firmware application window.
5.14.7 Configure Additional Simulation Data dialog
The "Configure Additional Simulation Data" allows you to define port-specific S-param-
eter data for the current channel (see Chapter 4.7.31.1, "Simulation data",
on page 279).
Access: System – [File] > "More" > "Config Additional Simulation Data..."
5.14.7.1 Configure Additional Imports tab

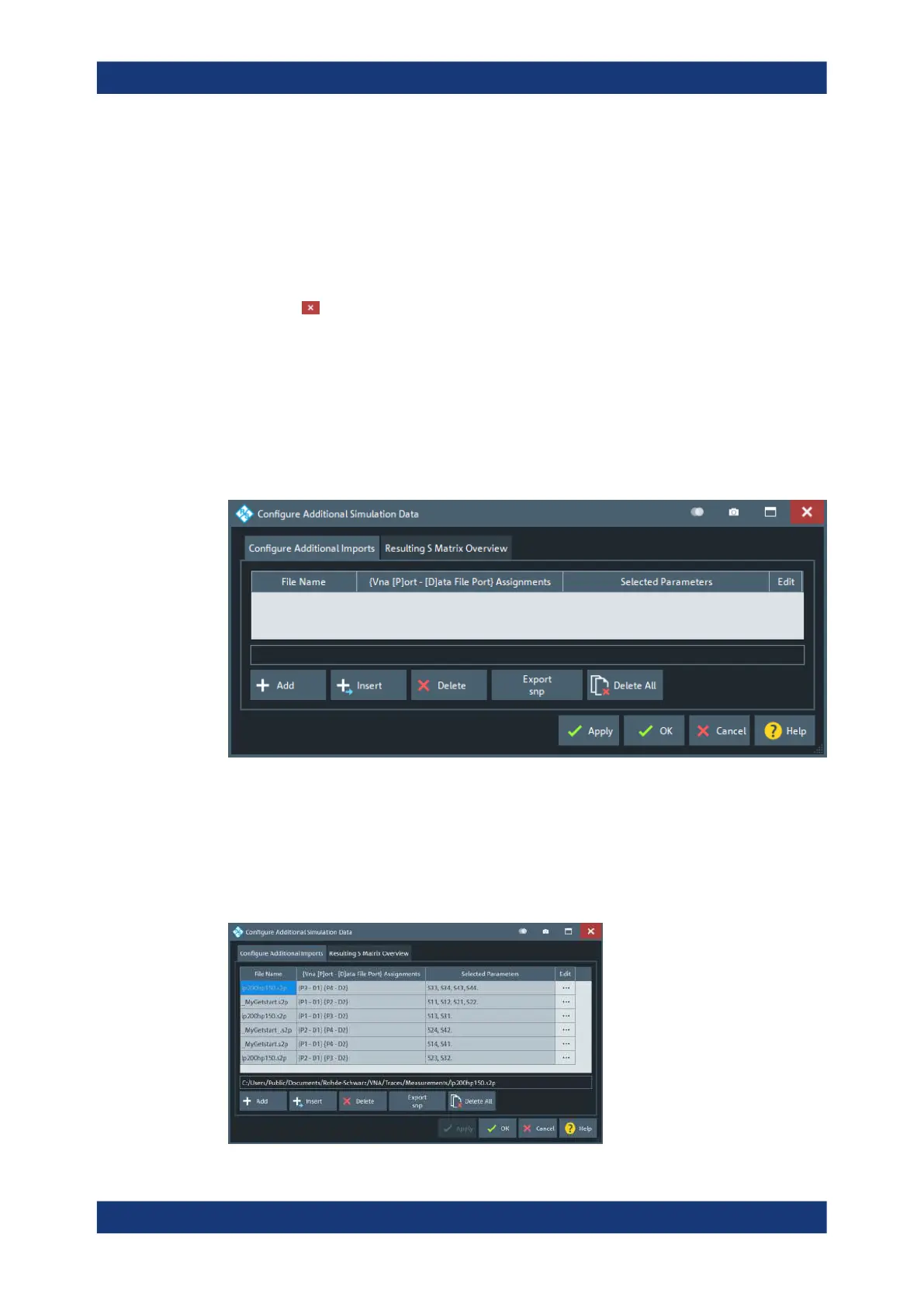

On the "Configure Additional Imports" tab, you can load additional Touchstone files and
overwrite the current channel's S-parameter data by selected S-parameter traces from
these files. These data take precedence over global, setup-specific, and channel-spe-
cific data (see "Load Simulation Data..." on page 677).
