GUI reference
R&S
®
ZNB/ZNBT
621User Manual 1173.9163.02 ─ 62

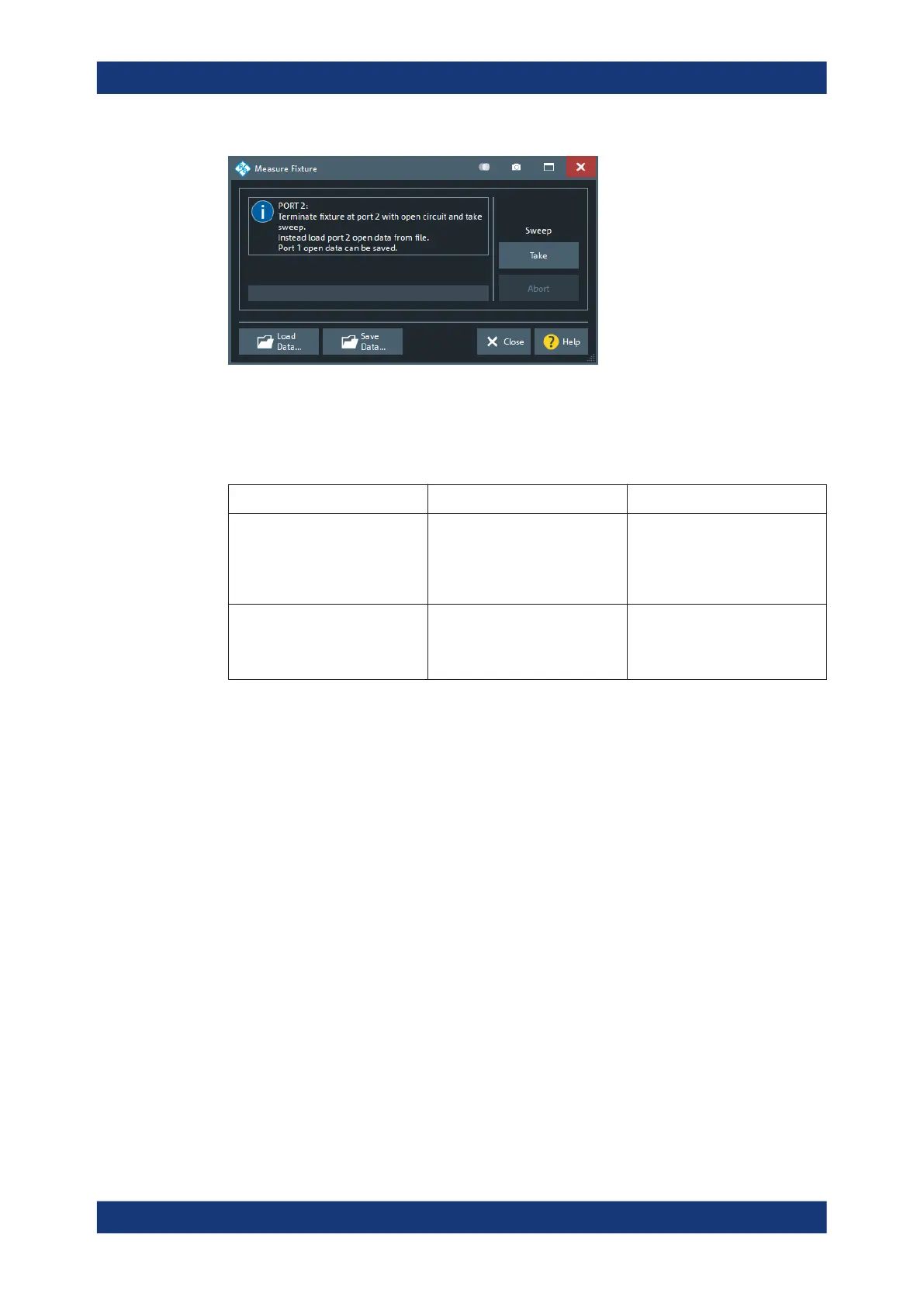

Figure 5-57: Measure Fixture dialog: Direct Compensation (and Prompt for Each Port)
"Direct Compensation" data files are standard trace files, containing reflection parame-
ter traces for the related port and standard:
Table 5-5: Direct Compensation data
Prompt for Each Port File Type Description
disabled csv One csv trace file per standard,
containing reflection traces for all
selected ports; see Chap-
ter 4.4.2.2, "ASCII (*.csv) files",
on page 159
enabled s1p One 1-port Touchstone file per
standard and port (see Chap-
ter 4.4.2.1, "Touchstone files",
on page 152)
Tip: Remote control provides additional flexibility. You can:
Measure the same ports repeatedly without changing the standards and attribute
the results to different channels.
Calculate the compensation data for different ports, using mixed Open and Short
standards.
Refer to the program example for [SENSe<Ch>:]CORRection:COLLect:
FIXTure[:ACQuire].
Remote command:
[SENSe<Ch>:]CORRection:COLLect:FIXTure:STARt
[SENSe<Ch>:]CORRection:COLLect:FIXTure[:ACQuire]
[SENSe<Ch>:]CORRection:COLLect:FIXTure:SAVE
[SENSe<Ch>:]CORRection:COLLect:FIXTure:EXPort
[SENSe<Ch>:]CORRection:COLLect:FIXTure:IMPort
5.13.3 One Way Loss tab
Defines loss parameters for each physical port.
Use the complementary dock widget to activate or deactivate length/loss compensation
for selected ports (see Chapter 5.13.1.2, "Offset panel", on page 606).
Offset Embed softtool
