The "Trace Manager..." button opens the Trace Manager dialog.
Couple All Traces / Couple Trc ... To Trace
Applies the scale settings of the reference trace ("To Trace") to all traces / to the active
trace.
Remote command:
n/a
Decouple All Traces / Decouple Trc
Assigns independent scale settings to all traces / to the active trace.
Remote command:
n/a
5.4.3 Zoom tab
Provides graphical and stimulus zoom functions for cartesian diagrams.
The graphical zoom magnifies a (paraxial) rectangular portion of a diagram without
modifying any sweep parameters. The stimulus zoom also magnifies the selected rect-
angle, but at the same time narrows the sweep range of the active channel to the rec-
tangle's horizontal range.

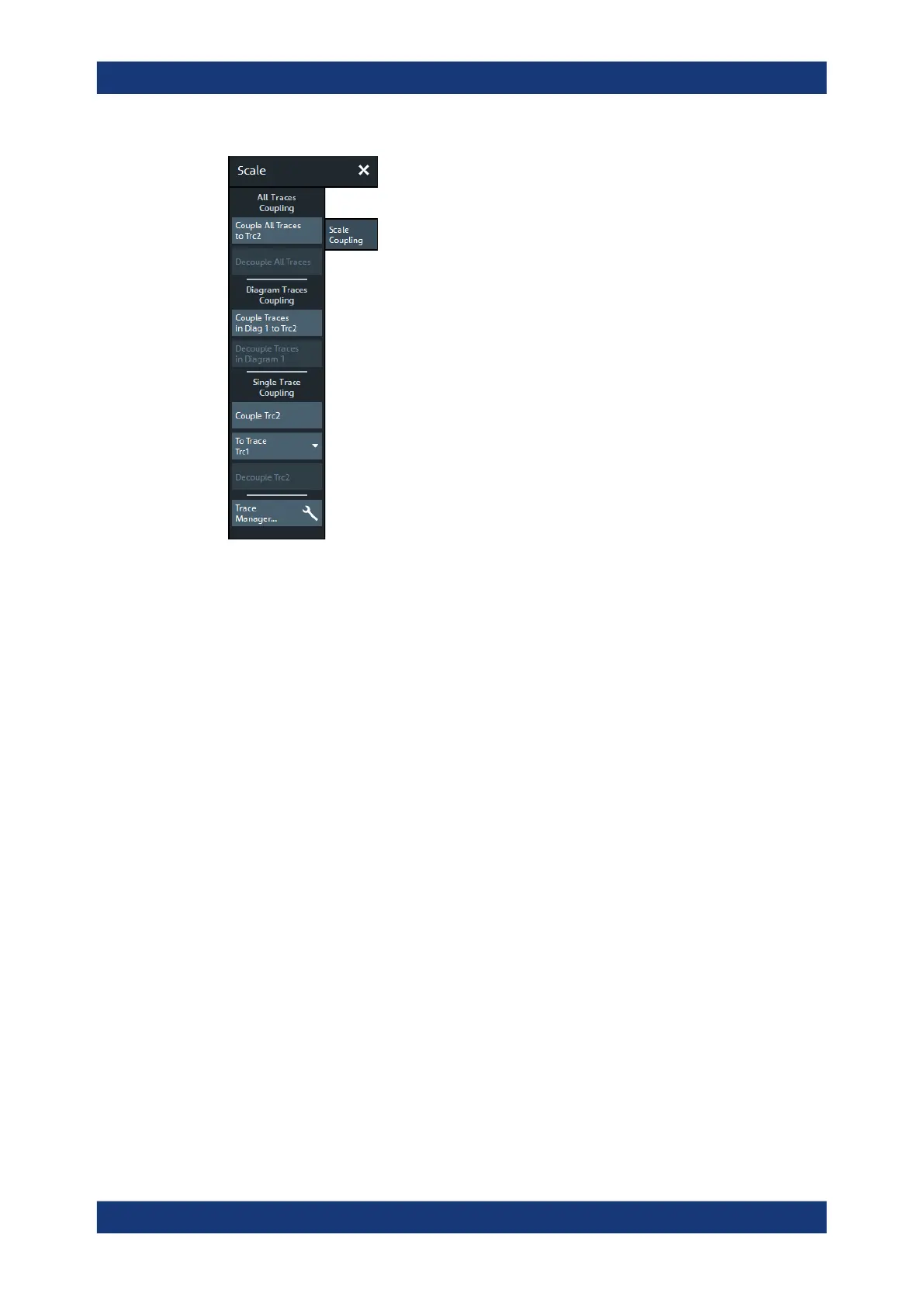

Scale softtool
