Step 2: Connectors and Cal Kits
Selects the connector type and gender for all ports and allows you to import a calibra-
tion kit.
Background information
Refer to Chapter 4.5.2, "Calibration standards and calibration kits", on page 174.
Messages in the dialog
An information message (or error message) is displayed, if one of the following hap-
pens:
●
One of the selected calibration kits is described by ideal kit parameters or typical
values.
●
One of the selected calibration kits does not contain all standards that are required
for the previously selected calibration type.
●
Different connector types are defined at the ports but the selected calibration type
requires uniform connectors.
●
A cal kit standard does not cover the entire calibrated frequency range.
●
The selected power meter does not cover the entire calibrated frequency range.

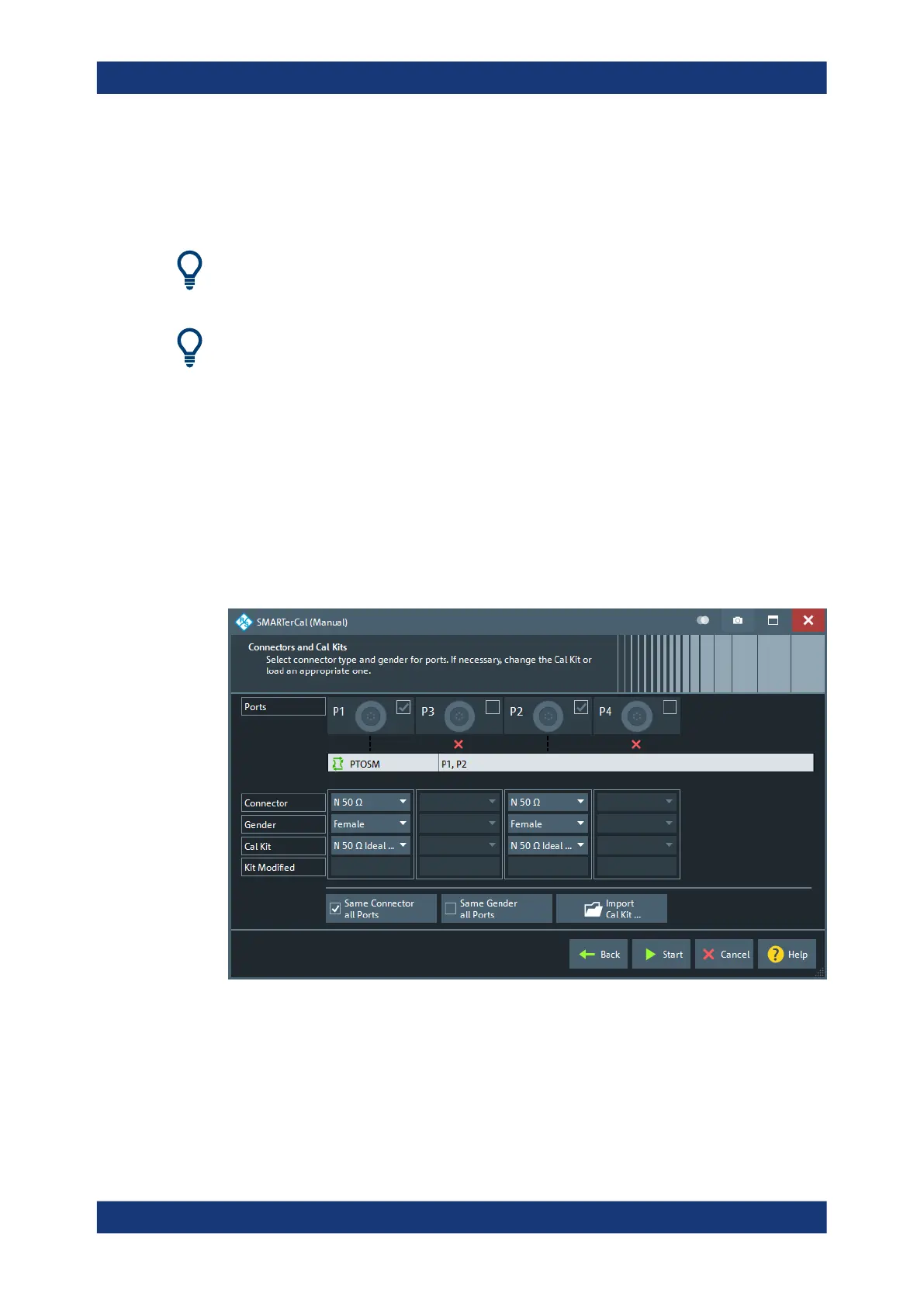

Figure 5-37: SMARTerCal(Manual), Step 2: Connectors and Cal Kits
The layout of the main panel depends on the number of test ports available.
Cal softtool
