R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
768User Manual 1173.9163.02 ─ 62

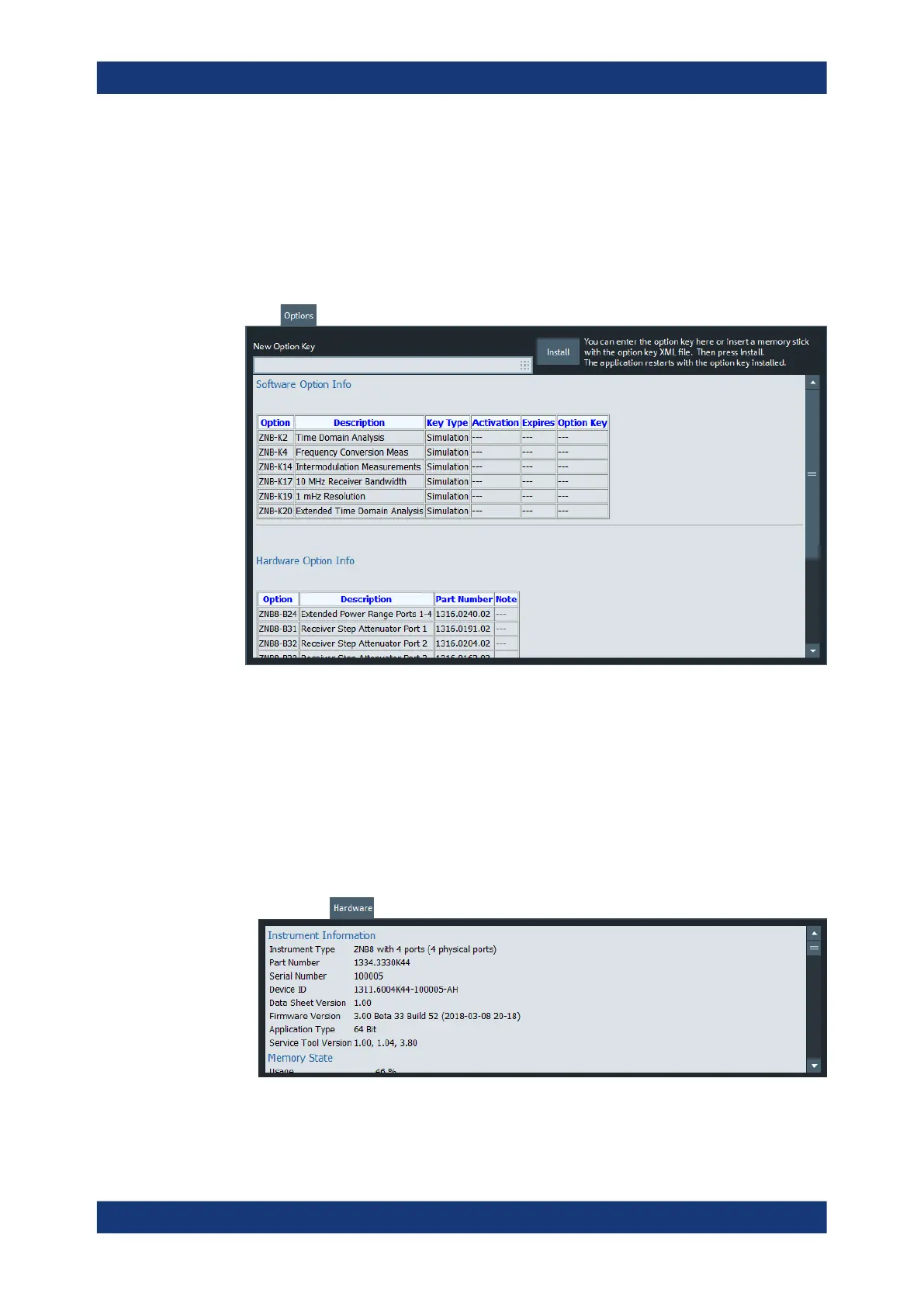

Options tab
Shows the installed software and hardware options. You can also enable additional
software options using the option key supplied with the option. Proceed according to
the instructions in the dialog.
For an overview of options, refer to Chapter 4.7, "Optional extensions and accesso-
ries", on page 221.
Software Option Info
Software options are listed with their name and description, the option key and key
type, and the activation and expiration date (if applicable).
Remote command:
DIAGnostic:PRODuct:OPTion:INFO?
Hardware tab
Gives an overview of the analyzer's hardware configuration and basic hardware-related
instrument settings.
Setup softtool
