GUI reference

R&S

ZNB/ZNBT

711User Manual 1173.9163.02 ─ 62

Access: System – [Applic] > "TDR" > "Y Axis"

This tab is only visible if the

Extended time domain analysis option R&S ZNB/ZNBT-

K20 is available.

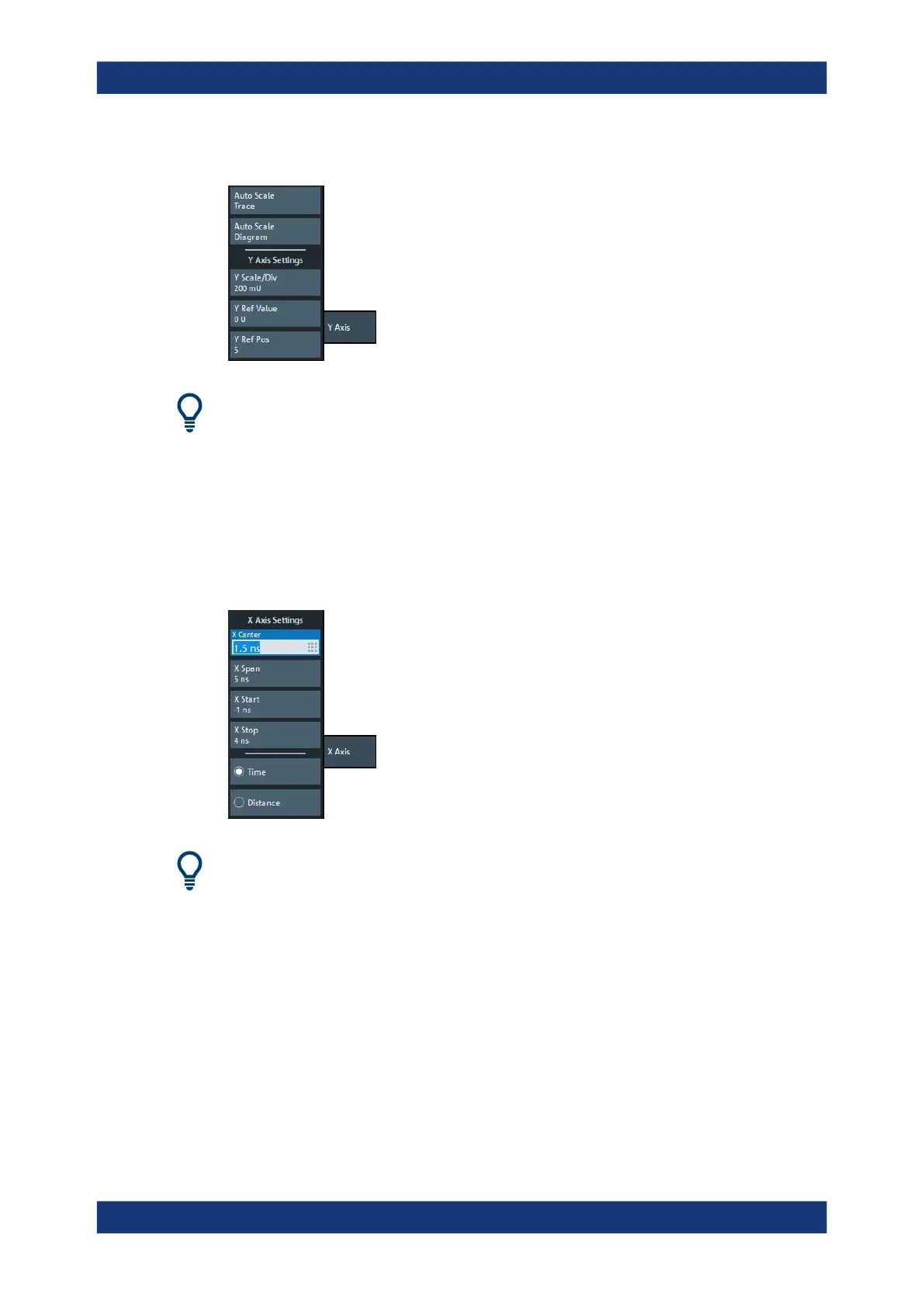

5.16.2.13 X Axis tab

The "X Axis" tab allows you to define the x axis scaling of the active diagram. The scal-

ing logic is the same as for all other diagram types, see Chapter 5.4, "Scale softtool",

on page 328.

Access: System – [Applic] > "TDR" > "X Axis"

●

This tab is only visible if the Extended time domain analysis option R&S ZNB/

ZNBT-K20 is available.

●

If the active trace is represented as an eye diagram, the "X Axis Settings" are

grayed out, as shown above.

If the active trace is represented as a rise time or skew diagram, the "X Axis Set-

tings" allow you to adjust the center/span or start/stop, no matter if the X axis rep-

resents "Time" or "Distance" (see " Time / Distance" on page 419).

5.16.3 DUT Centric application

The "DUT Centric" application provides functions for configuring and managing DUTs

and for a DUT-centric measurement setup and calibration.

Applic softtool
