Sweep Controller

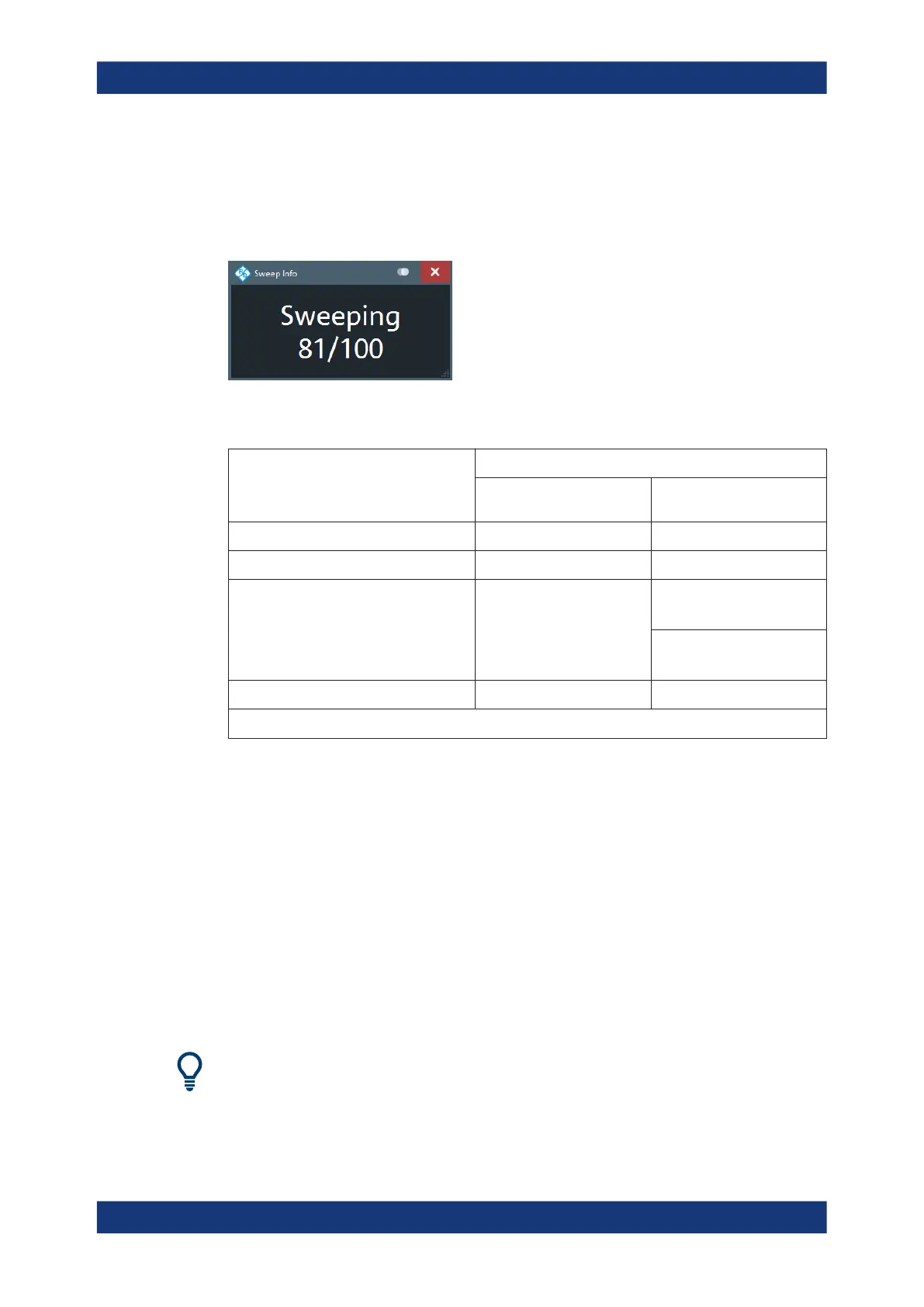

Activates/deactivates the (resizable) "Sweep Info" dialog, which displays the current

sweep stage. The "Sweep Info" dialog is particularly useful for long duration sweeps

that are executed in single sweep mode: by observing the dialog, it is easy to realize

when the sweep is done.

The possible sweep stages and how they are displayed partly depend on the selected

sweep mode (see "Continuous / Single" on page 442):

Sweep stage Sweep controller display

in "Continuous" sweep

mode

in "Single" sweep mode

No ongoing sweep Idle Idle

Sweep is being prepared Preparing Preparing

Ongoing sweep

Continuous Sweeping

if #Sweeps = 1

Sweeping m/n

if n = #Sweeps > 1

Measurement results are being calculated Continuous calculation Calculation

The VNA is sweeping or waits for a trigger signal.

Pipelining

Allows you to activate pipelining of measurement data for alternated Driving Mode. See

Chapter 4.1.4.2, "Pipelining of measurement data", on page 92.

Remote command:

INITiate:PIPelining:STATe

(CALCulate:PIPelining:DATA?)

5.10.4.2 Restart Manager dialog

The "Restart Manager" dialog defines the Restart Sweep behavior in "Single" sweep

mode.

Access: Channel – [Sweep] > "Sweep Control" > "Restart Manager..."

Related information

Refer to Chapter 4.1.4, "Sweep control", on page 90.

Sweep Softtool

R&S ZNB Series User Manual
