SOURce<Ch>:POWer:CORRection:DATA:PORT<PhyPt>
[SENSe<Chn>:]CORRection:PSTate?
Power Cal dialog – Ref. Receiver
In Ref. Receiver mode, the "Power Cal" dialog guides you through a reference receiver
calibration.

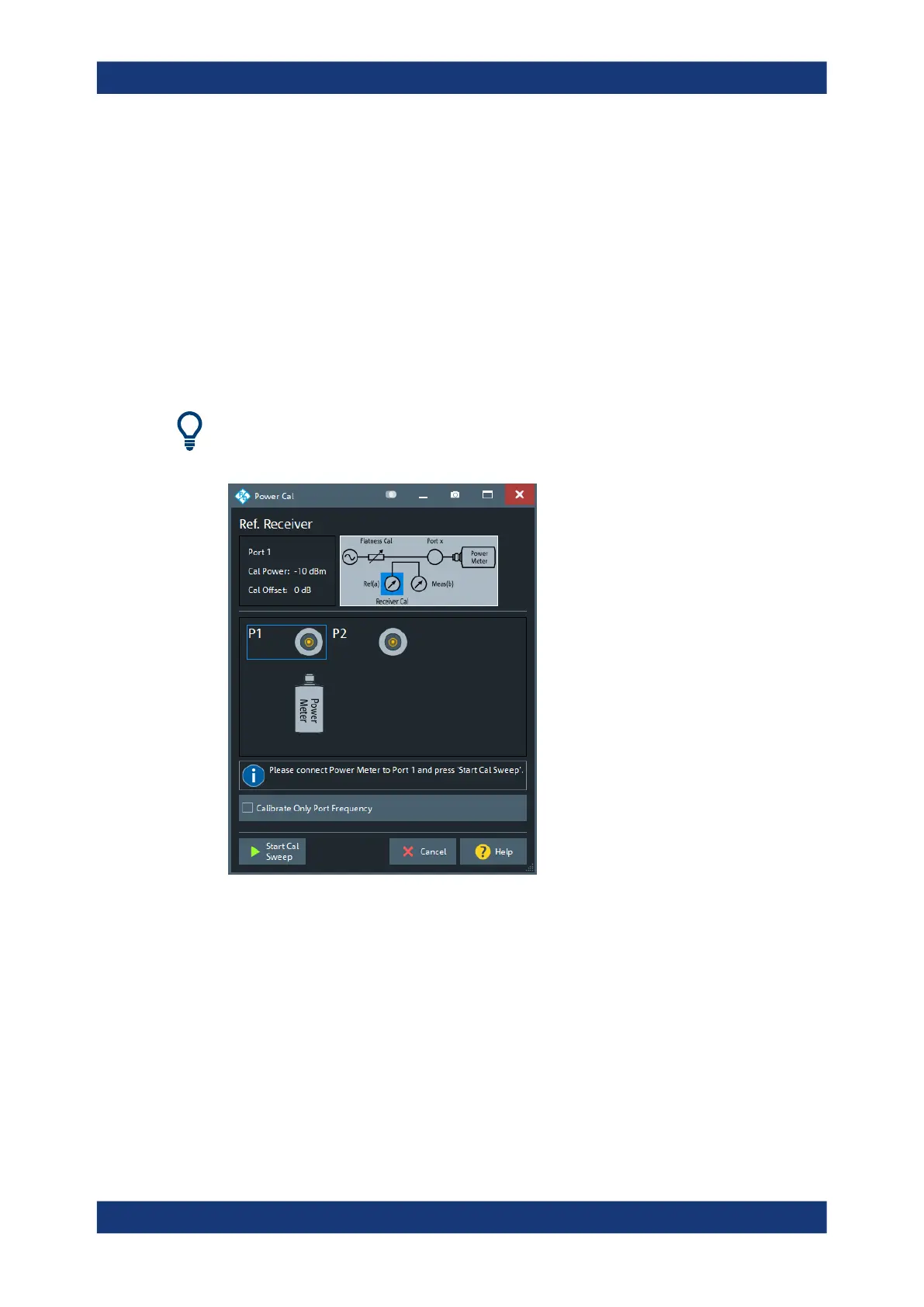

The selected source port is displayed with its cal power settings (see Chapter 5.11.3.2,
"Modify Cal Power dialog", on page 527). A circuit diagram visualizes the connectivity.
A power meter must be connected to the calibrated source port.
Access: Power Cal wizard > Ref. Receiver
Background information
Refer to Chapter 4.5.6.1, "Source power calibration", on page 195.
Start Cal Sweep
Starts the calibration sweeps for the selected port and power calibration settings and
closes the dialog. The calibration is performed as described in "Calibration procedure"
on page 195.
Open the Pwr Cal Settings tab if you wish to modify the calibration procedure.
Remote command:
SOURce<Ch>:POWer:CORRection[:ACQuire]
SOURce<Ch>:POWer<PhyPt>:CORRection:COLLect[:ACQuire]
