R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
661User Manual 1173.9163.02 ─ 62
The deembedding of single-ended and decoupled ports is assigned as Single Ended,
the deembedding of balanced ports as Balanced, and the deembedding of coupled as
Port Sets deembedding.
Remote command:
CALCulate:FMODel:DEASsistant:IMPCorrect
CALCulate:FMODel:DEASsistant:DUT:PORT
CALCulate:FMODel:DEASsistant:DUT:MEASure
CALCulate:FMODel:DEASsistant:RUN

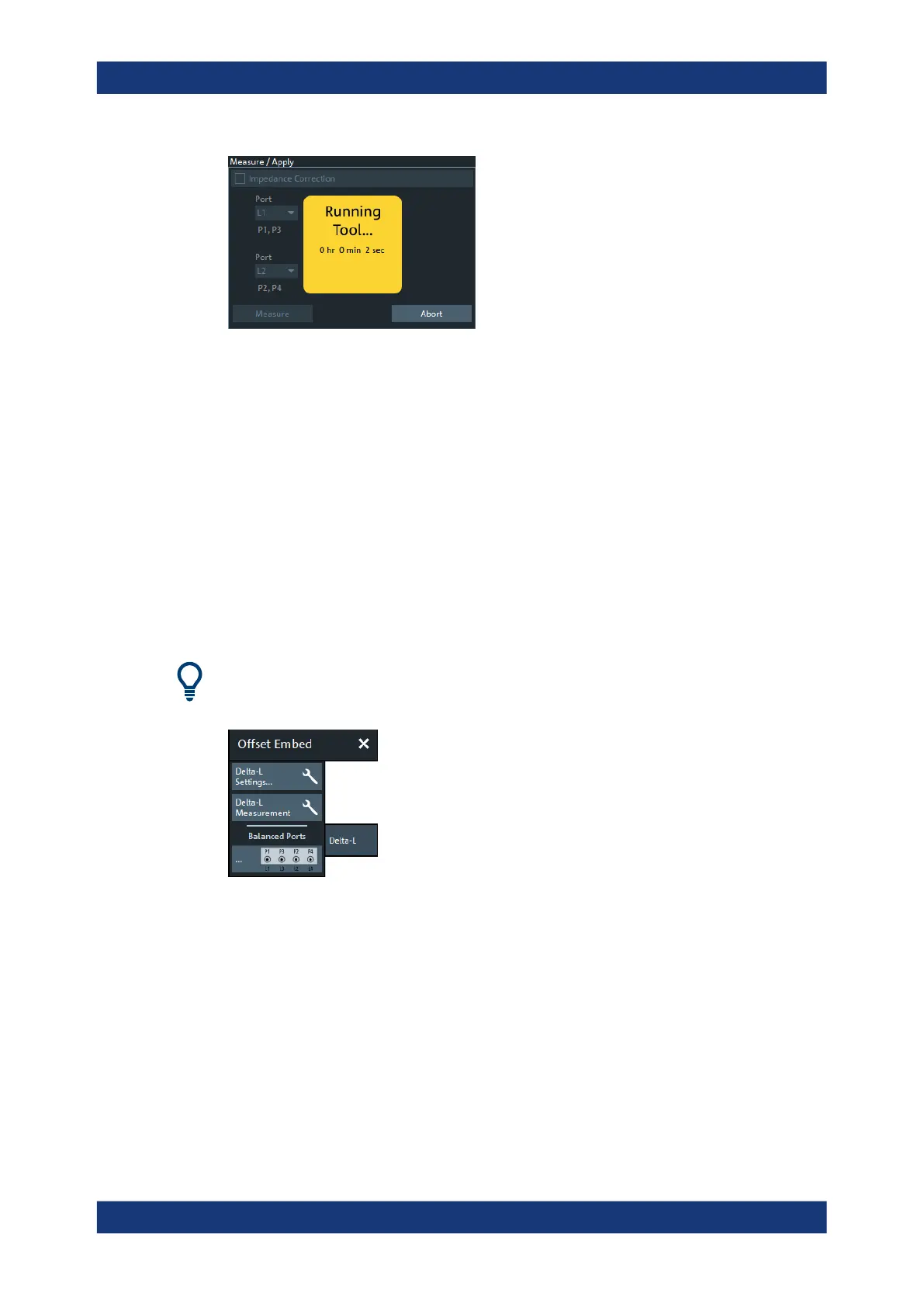

5.13.12 Delta-L tab
The controls on the "Delta-L" tab allow you to set up and perform a Delta-L PCB char-
acterization.
The "Delta-L" tab is only visible if option R&S ZNB/ZNBT-K231 is installed on the
instrument. See Chapter 4.7.11, "Delta-L 4.0 PCB characterization", on page 252.
●
The "Delta-L Settings..." button opens the Delta-L Settings dialog, which allows you
to configure a Delta-L measurement.
●
The "Delta-L Measurement" button runs the configured measurement.
●
The "Balanced Ports..." button opens a dialog that allows you to enable/disable
physical ports and to define logical ports (balanced or unbalanced) in the active
channel. See Chapter 5.2.1.3, "Balanced Ports dialog", on page 289.
Offset Embed softtool
