Parameters:
<CircuitModel> FIMPort | CSL | LSC | CSC | LSL | SLC | SCL | SCC | SLL |
SHLC | GSL | LSG | GSG | SLG | SGL | SGG
Possible circuit models (character data); see Table 7-6
*RST: CSL
Example: See CALCulate<Ch>:TRANsform:VNETworks:SENDed:
EMBedding<PhyPt>[:STATe]
Manual operation: See "Network" on page 625
CALCulate<Ch>:TRANsform:VNETworks:WAVes
<Boolean>
Defines whether the wave-based, or the classical S parameter-based de-/embedding
calculation is used in channel <Ch>.
Suffix:
<Ch>
.
Channel number
Parameters:
<Boolean> ON (1)
Wave-based calculation (default)
OFF (0)
S parameter-based calculation
Manual operation: See "Offset > Wave De-/Embed." on page 651
CALCulate:TRANsform... (other)
CALCulate<Chn>:TRANsform:COMPlex <Result>
Converts S-parameters into converted (matched-circuit) Y-parameters or Z-parameters
and vice versa, assuming that port no. i is terminated with Z
0i
so that the three parame-

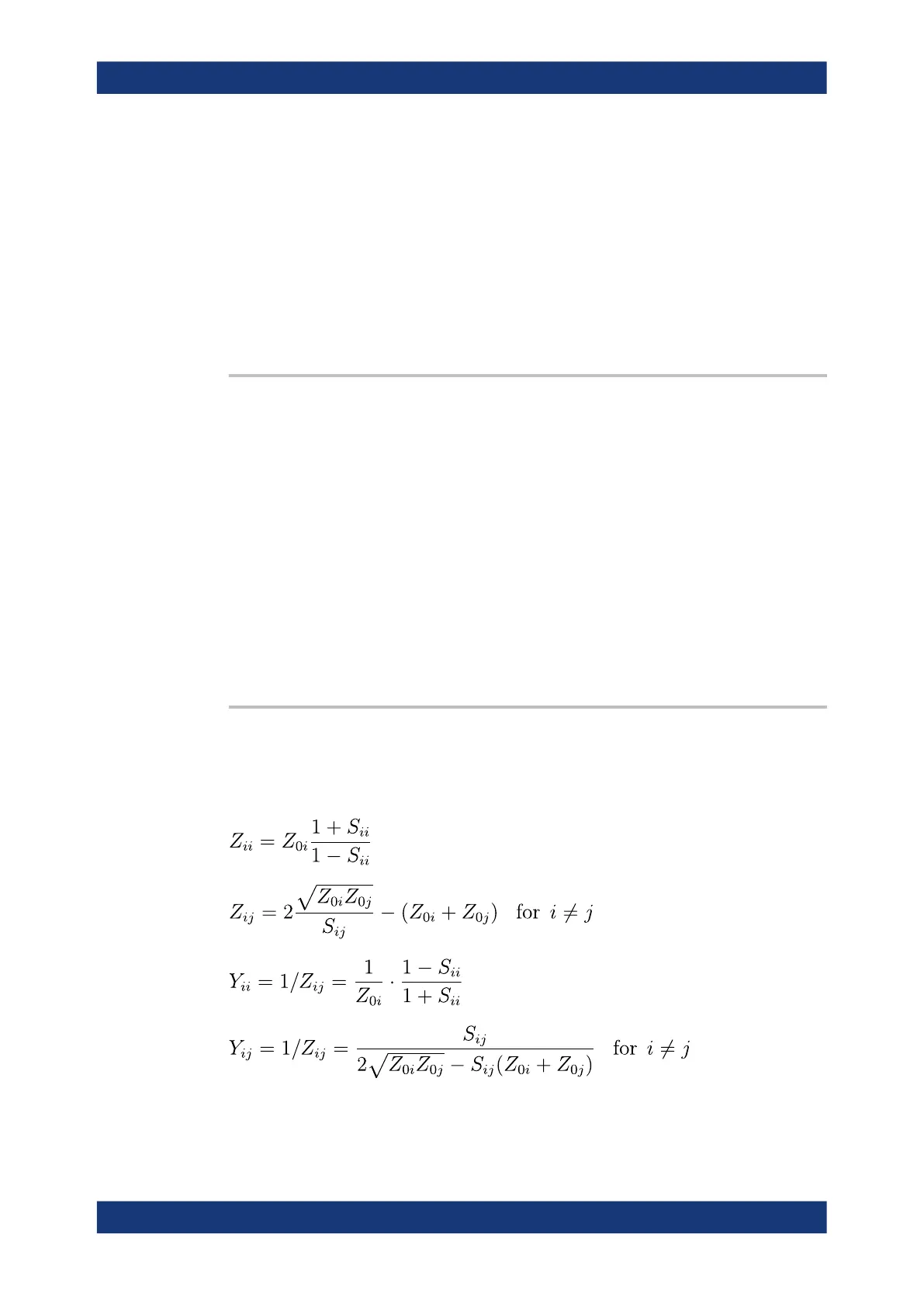

ter sets are equivalent and the following formulas apply:
Suffix:
<Chn>
.
Channel number used to identify the active trace
