R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
390User Manual 1173.9163.02 ─ 62

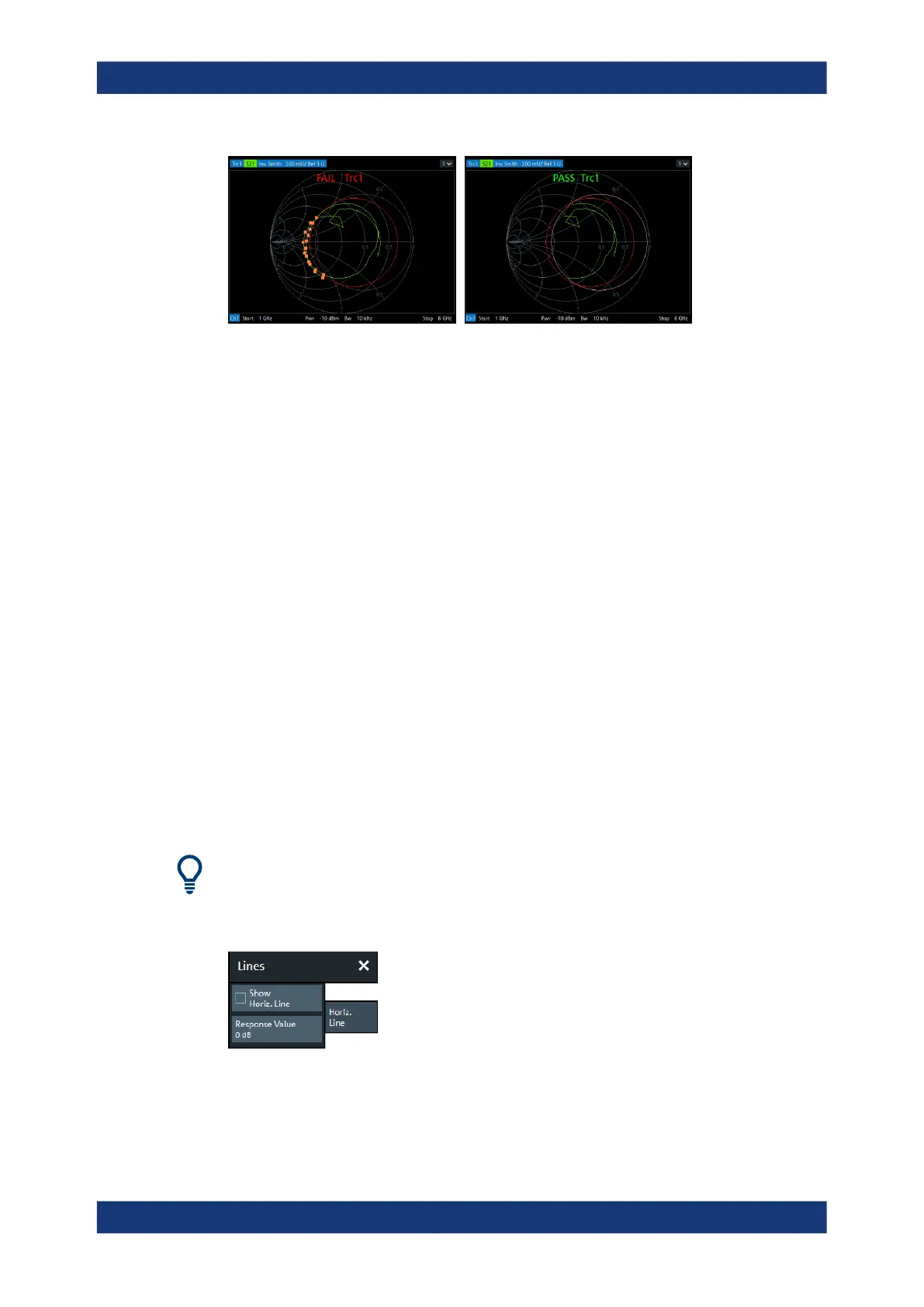

left ("FAIL") = "Circle Test" enabled, but not limited to "Display Circle"
right ("PASS") = "Circle Test" enabled, but limited to "Display Circle"
Remote command:
CALCulate<Chn>:LIMit:DCIRcle[:STATe]
Clear Circle
Resets the "Display Circle" to its default configuration (unit circle; show border: off; limit
to circle: off)
Remote command:
CALCulate<Chn>:LIMit:DCIRcle:CLEar
Draw Circle / Radius, Center X, Center Y
Defines the Display Circle – either by drawing it in the diagram area or by providing its
radius and center.
Remote command:
CALCulate<Chn>:LIMit:DCIRcle:DATA
5.6.5 Horiz. Line tab
Shows or hides a horizontal line associated to the active trace in a cartesian diagram
area. The line can be moved to particular trace points to retrieve the response values.
It also shows which parts of a trace are above or below a definite response value.
●
The controls on this tab are only active if the active trace is displayed in cartesian
format.
●
If another trace format is selected, the line (position) is deleted.
Show Horiz. Line
Displays or hides the horizontal line.
Lines softtool
