GUI reference

R&S

ZNB/ZNBT

410User Manual 1173.9163.02 ─ 62

●

"Absolute Level:" The bandpass (bandstop) is the tallest (lowest) peak in the

search range. To be valid, the peak must be above (below) -"Bandwidth". The

Lower Band Edge and Upper Band Edge values are given by the frequencies

where the trace is equal to -"Bandwidth".

●

"None": "Bandfilter" search switched off, result off.

Remote command:

CALCulate<Chn>:MARKer<Mk>:FUNCtion:BWIDth:MODE

Tracking

Causes the active "Bandfilter" search to be repeated after each sweep: When tracking

mode is active, the markers typically change their horizontal and vertical positions as

the measurement proceeds.

Tracking mode properties

Tracking modes are available for all search modes. The tracking modes for minimum/

maximum/peak search and target search are coupled; tracking for "Bandfilter" search

can be activated separately. Tracking is activated automatically when one of the "Band-

filter" search modes is selected.

Remote command:

"Bandfilter" tracking and marker/target search tracking are controlled with the same

command:

CALCulate<Chn>:MARKer<Mk>:SEARch:TRACking

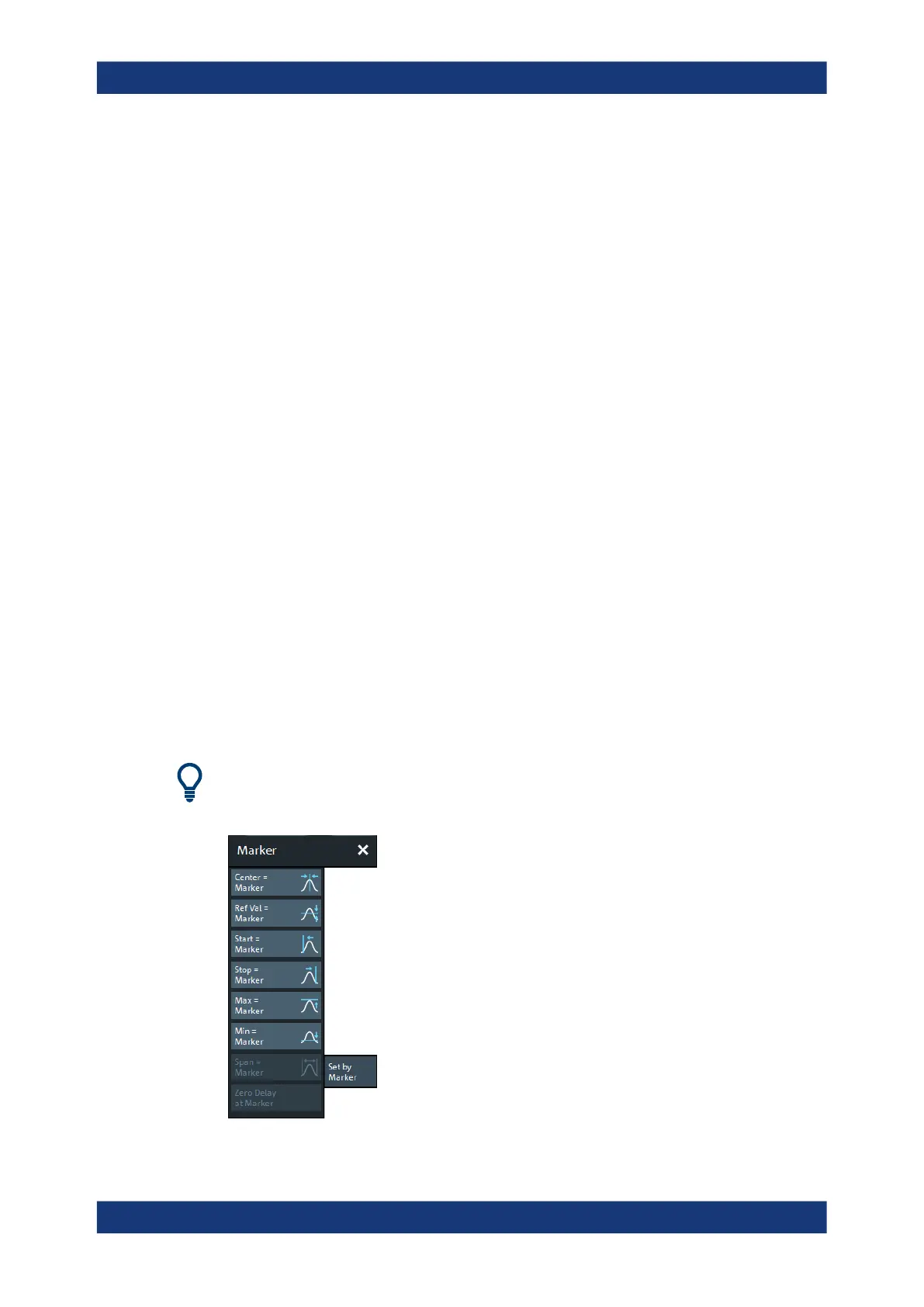

5.7.7 Set by Marker tab

The "Set by Marker" functions use the active marker to define the sweep range, scale

the diagram and introduce an electrical length offset. The functions are unavailable if

the active trace contains no markers (e.g. after "All Markers Off").

Examples

Refer to Chapter 3.3.7.6, "Set by marker", on page 76.

Marker softtool
