GUI reference
R&S
®
ZNB/ZNBT
720
User Manual 1
173.9163.02 ─ 62

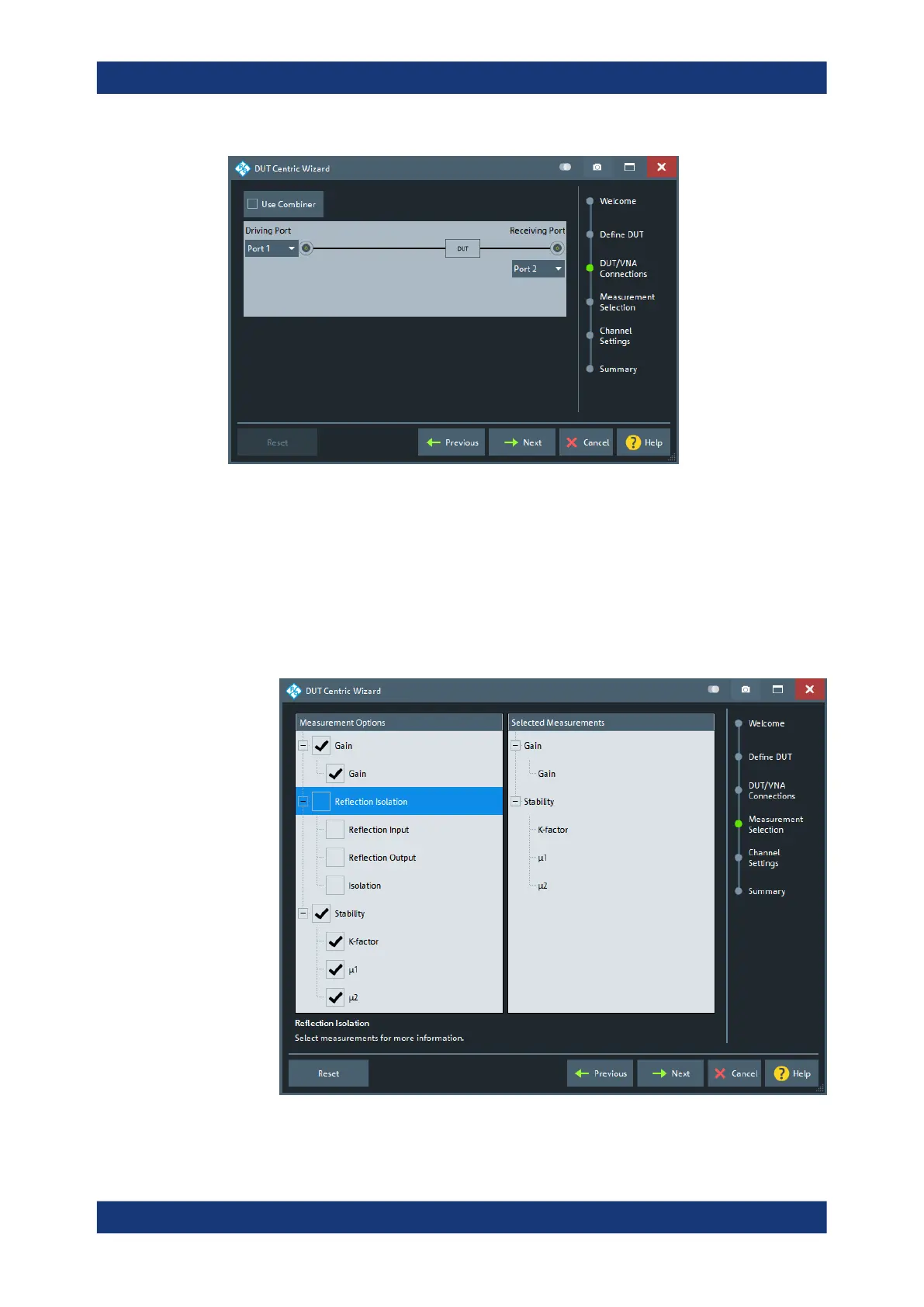

Figure 5-85: Amplifier/VNA connections
Which connections are actually possible, depends on the number of ports (on the ana-
lyzer and connected
switch matrices
) and the number of independent sources (
on the
VNA
and connected
external generators
).
Measurement Selection
The "Measurement Selection" page of the "DUT Centric Wizard" allows you to select
the amplifier properties to be measured.
Applic softtool
719
721
