Save

Stores the trace data, according to the selected options.

Tip: Note the conditions described in "Conditions for Touchstone file export"

on page 158.

Remote command:

MMEMory:STORe:TRACe:PORTs

MMEMory:STORe:TRACe

MMEMory:STORe:TRACe:CHANnel

Comment Added to File

Defines a comment to be added to the exported trace data file.

If empty (←"Delete"), no comment is added.

Remote command:

MMEMory:STORe:TRACe:OPTion:COMMent

5.5.11.3 Select Parameter dialog

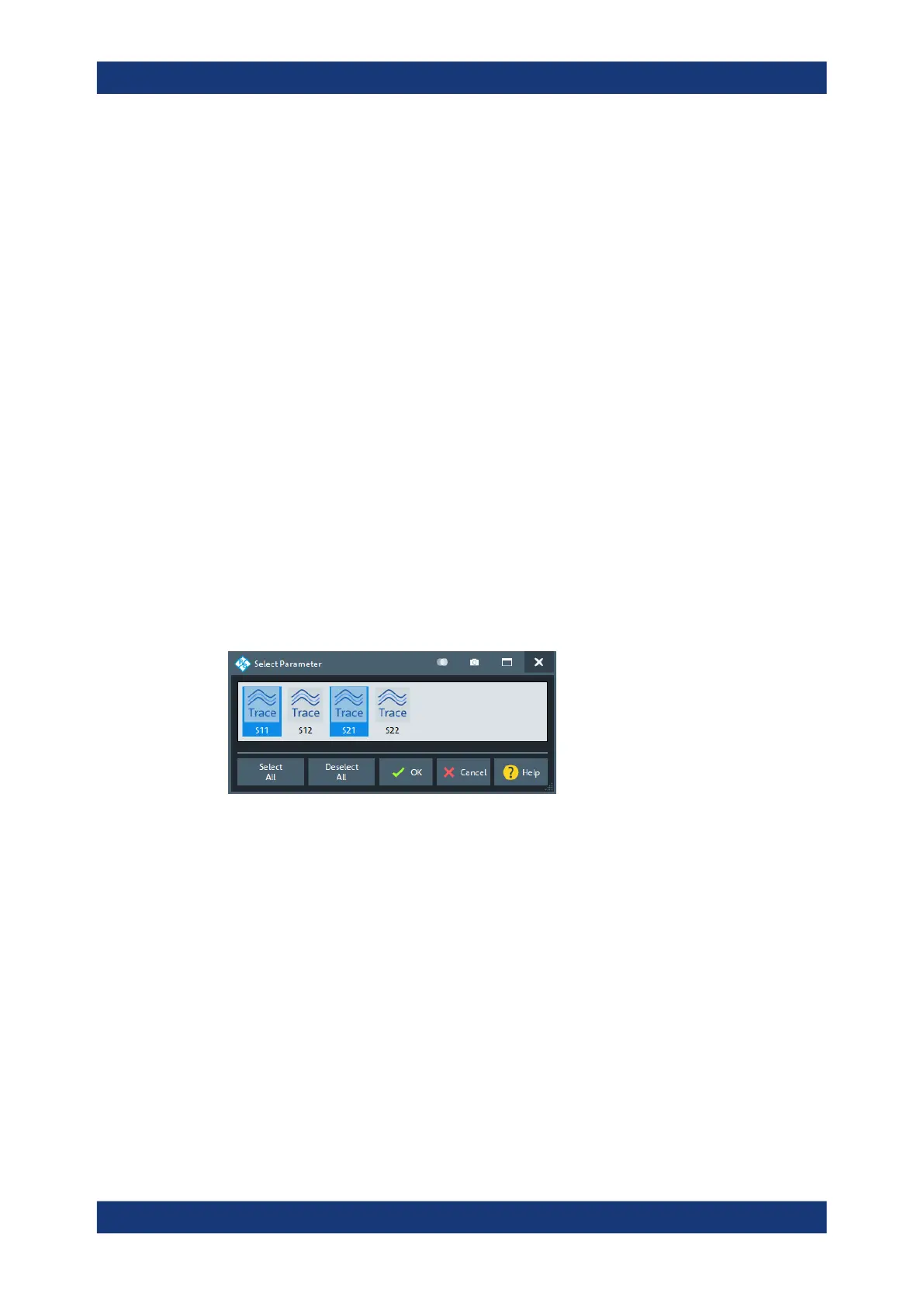

The "Select Parameter" dialog provides a selection of measurement results (e.g. S-

parameters) or traces, e.g. for trace import, import of power correction coefficients, limit

line import.

Access: The dialog may be called from several dialogs, for example on pressing

"Open" in the Import Complex Data dialog.

Select All / Deselect All

During trace data import, selects/deselects all traces contained in the opened trace file.

Auto Distribute

Available for trace data import only.

If checked, a selected trace S

is imported as a memory trace for all data traces in the

current recall set that are measuring S

Remote command:

MMEMory:LOAD:TRACe:AUTO

5.5.11.4 Select Ports dialog

The "Select Ports" dialog defines the port assignment for the created Touchstone

(*.s<n>p) file.

Trace Config softtool
