Mixer Configuration dialog

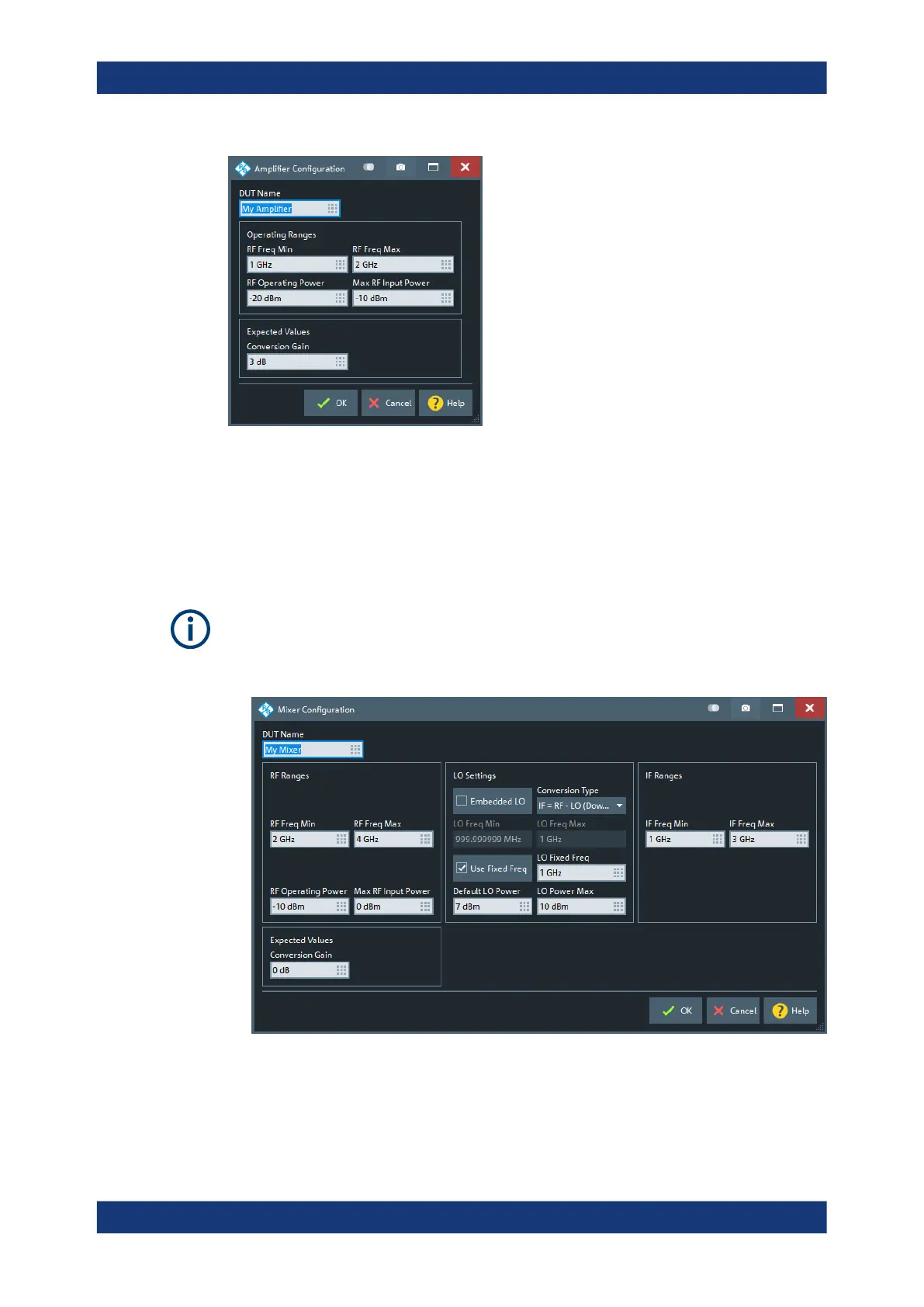

The "Mixer Configuration" dialog allows you to set up the fundamental properties of a
mixer.
Access: DUT Manager dialog > "Edit..." with a DUT of type "Mixer" selected
The DUT type "Mixer" is only availble if the instrument is equipped with software
optionR&S ZNB/ZNBT-K4. See Chapter 4.7.4, "Frequency conversion measurements",
on page 236.
Most of the mixer properties are straight-forward
Applic softtool
