A cal unit characterization can be performed in a frequency sweep. The "Characterize

Cal Unit" dialog is unavailable while a "Power", "CW Mode", or "Time" sweep is active.

The analyzer always uses a fixed source power of -10 dBm to acquire the characteri-

zation data.

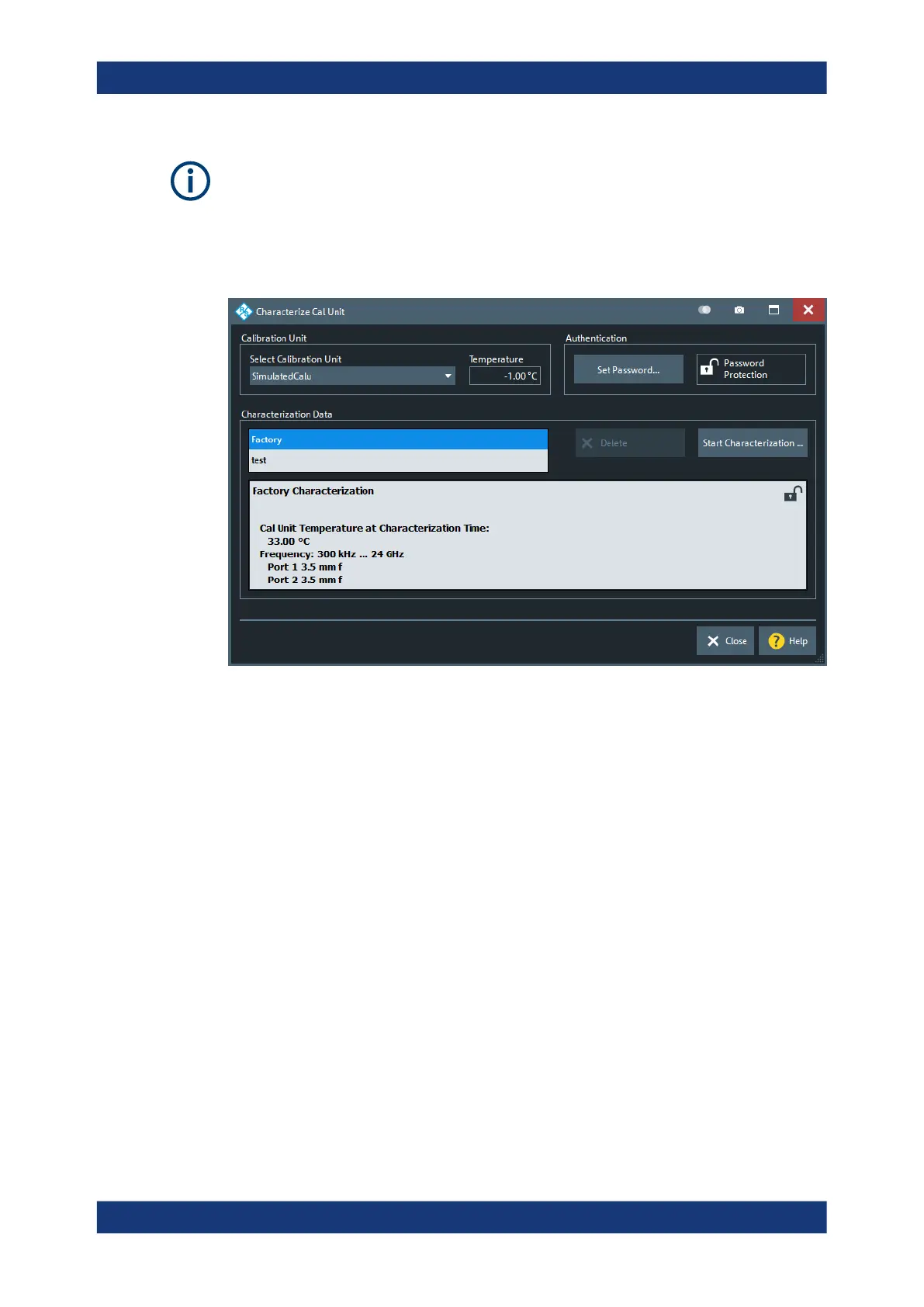

Controls in the Characterize Cal Unit dialog

Calibration Unit

Displays the connected calibration units. The R&S ZNB/ZNBT auto-detects all calibra-

tion units which are connected to one of its USB ports. If several cal units are connec-

ted, one of them must be selected for characterization (active cal unit).

Remote command:

SYSTem:COMMunicate:RDEVice:AKAL:ADDRess:ALL?

SYSTem:COMMunicate:RDEVice:AKAL:ADDRess

Authentication

Allows you to set a password to protect the characterization dialog and the Characteri-

zation wizard from unauthorized access and operation. "Set Password..." opens a dia-

log to enter the password and activate password protection at the next time the "Set

Password" dialog is opened. Enter an empty string (no password) to deactivate pass-

word protection.

Tip: A password also blocks a switchover of the active characterization during calibra-

tion; see "Characterization" on page 451.

Remote command:

[SENSe:]CORRection:COLLect:AUTO:CKIT:PASSword

Cal softtool
