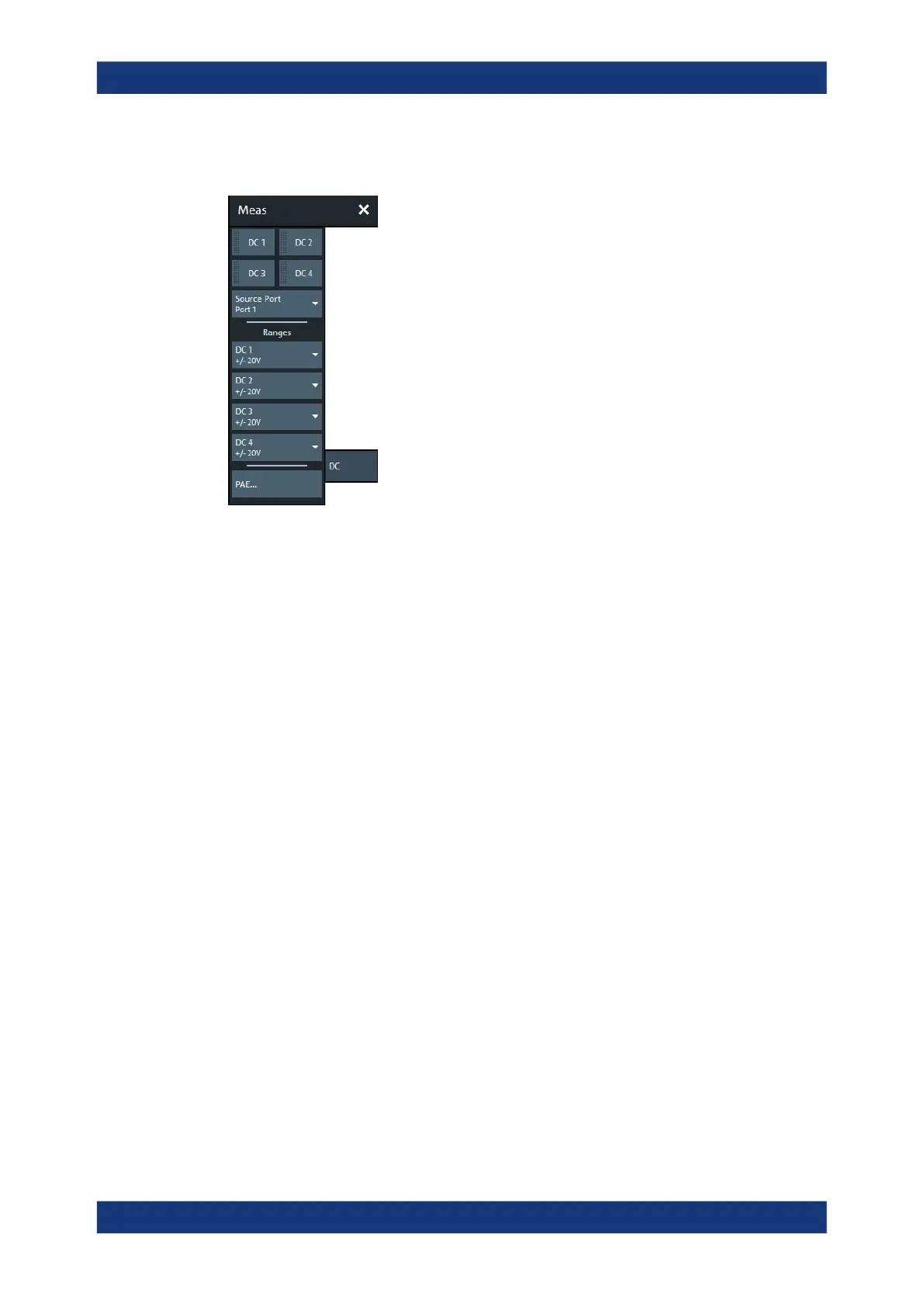

5.2.11.1 Controls on the DC tab

The "PAE..." button opens the Power Added Efficiency dialog.

DC 1/DC 2/DC 3/DC 4/Source Port

Selects a DC INPUT and the drive port for the active trace.

The DC voltages "DC 1", ..., "DC 4" are measured at the rear panel connectors DC

Input 1, ..., 4, respectively. For best accuracy, it is recommended to adjust the

"Ranges" to the measured signal.

Remote command:

CALCulate<Ch>:PARameter:MEASure "<Trace_Name>", "DC1d1" |

"DC2d1" | ...

CALCulate<Ch>:PARameter:SDEFine "<Trace_Name>", "DC1d1" |

"DC2d1" | ...

Ranges

"DC 1", ..., "DC 4" in the "Ranges" section configure the measurement ranges of DC

Input 1, ..., 4, respectively. For best accuracy, adjust the ranges to the measured sig-

nals. To protect the instrument, all ranges are pre-set to "+/- 20 V" (the widest range).

If the actual voltage of the input signal exceeds the selected range, the measurement

is incorrect, and a DC overload message is displayed.

Remote command:

[SENSe<Ch>:]DC<DCInp>:RANGe

5.2.11.2 Power Added Efficiency (PAE) dialog

The "Power Added Efficiency (PAE)" dialog configures the measurement of the PAE of

an active 2-port device.

Access: Trace – [Meas] > "DC" > "PAE..."

Meas softtool
