5.14.4 Printer Setup dialog

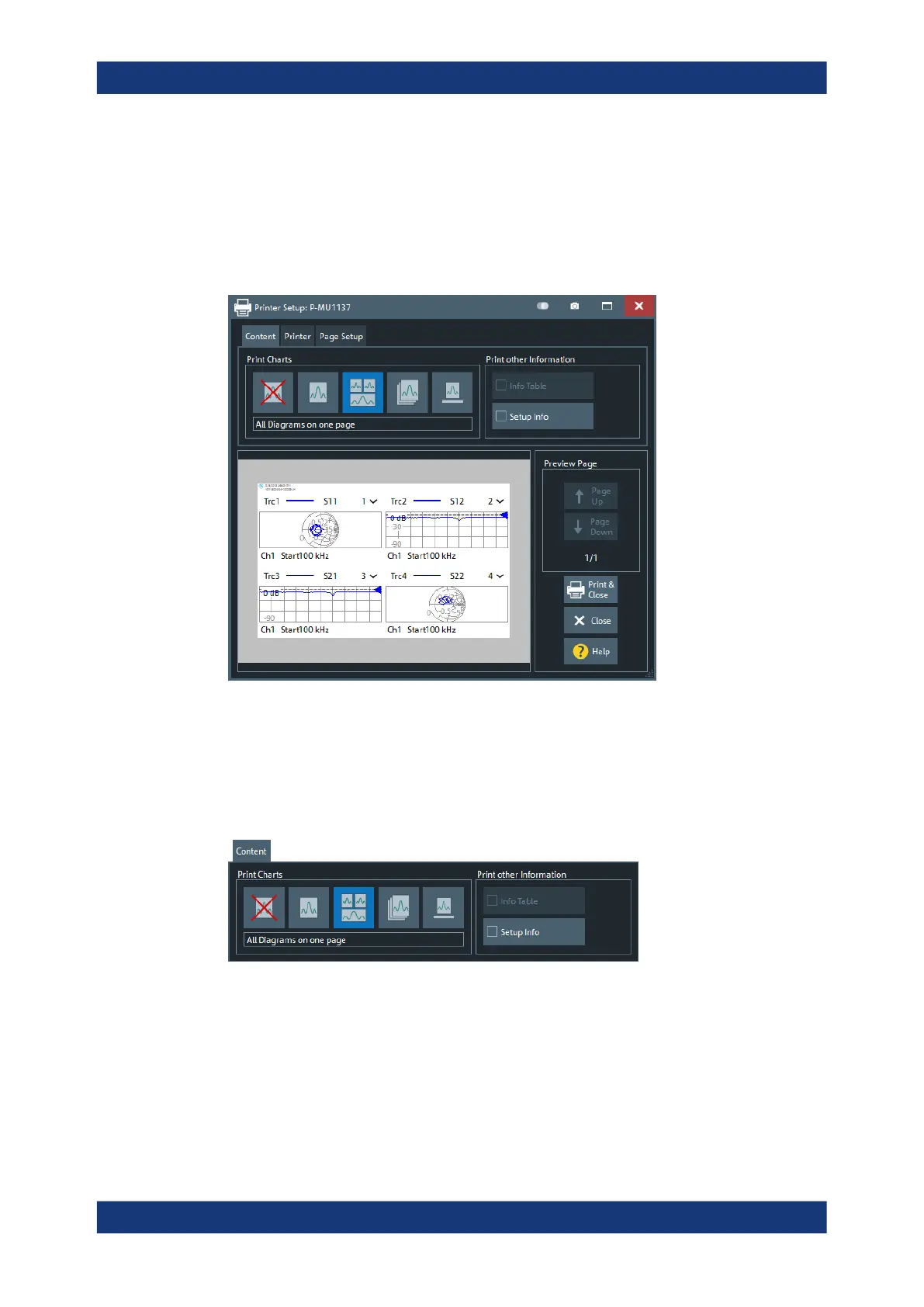

The "Printer Setup" dialog specifies how the diagram content of, and/or other informa-

tion on the active recall set is printed. Printer options are specified in three tabs. The

lower part of the dialog shows a preview of the print.

Access: System – [File] > "Print" > "Print..."

The HCOPy... commands provide the printer settings; see Chapter 7.3.7, "HCOPy

commands", on page 1126.

5.14.4.1 Content tab

The "Content" tab allows you to select the diagram content to be printed.

The selected item in the " Print Charts" group specifies how the diagram area of the

active recall set is printed. Currently the following options are offered: "No Diagram at

all", "Active Diagram only", "All diagrams on one page", "All diagrams on their own

page" and "Hard copy of diagram area". The latter is a screenshot of the diagram area,

which preserves colors and layout.

Note that the " Print Charts" setting also affects the To File... and To Clipboard actions

of the Print tab.
