R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
710User Manual 1173.9163.02 ─ 62
Remote command:
CALCulate<Chn>:DTIMe:POSition
Extended Info
Defines whether the info field for the skew measurement shall only provide basic infor-
mation (default) or extended information:

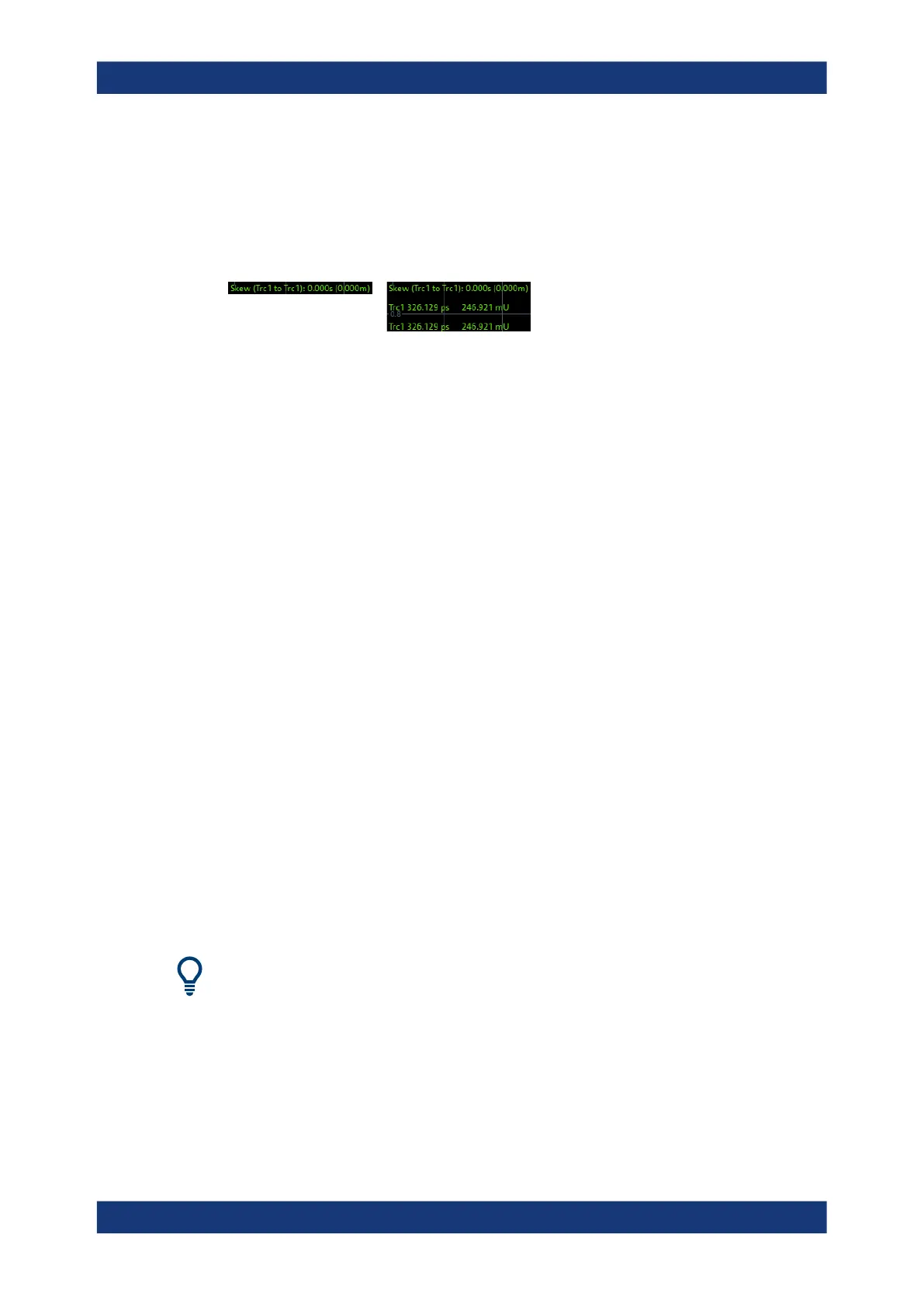

Figure 5-81: Skew info, basic vs. extended
The displayed skew values are positive, if, at the defined Skew Position, the active
trace is to the right of the Reference Trace.
Remote command:
CALCulate<Chn>:DTIMe:DATA?
Skew Check On
Enables the skew check with the specified Skew Limit.
Remote command:
CALCulate<Chn>:DTIMe:LIMit:STATe
Skew Limit
Defines the limit value for the skew check. The unit depends on the current format of
the X axis (see " Time / Distance" on page 419).
A TTL signal indicating pass or fail can be generated in addition.
Remote command:
CALCulate<Chn>:DTIMe:LIMit:LIMit
Global Check, TTL1 Pass, TTL2 Pass
see Chapter 5.6.1, "Limit Test tab", on page 373
5.16.2.11 Time Gate tab
Replicates the "Time Gate" tab of the "Trace Config" softtool (see Chapter 5.5.6, "Time
Gate tab", on page 353).
Access: System – [Applic] > "TDR" > "Time Gate"
Since for the eye diagram, the time axis always equals two times the symbol time, the
display of the time gate range lines ("Show Range Lines") does not make sense, and is
therefore not available.
5.16.2.12 Y Axis tab
The "Y Axis" tab allows you to define the y axis scaling of the active diagram. The scal-
ing logic is the same as for all other diagram types, see Chapter 5.4, "Scale softtool",
on page 328.
