GUI reference
R&S
®
ZNB/ZNBT
686
User Manual 1
173.9163.02 ─ 62

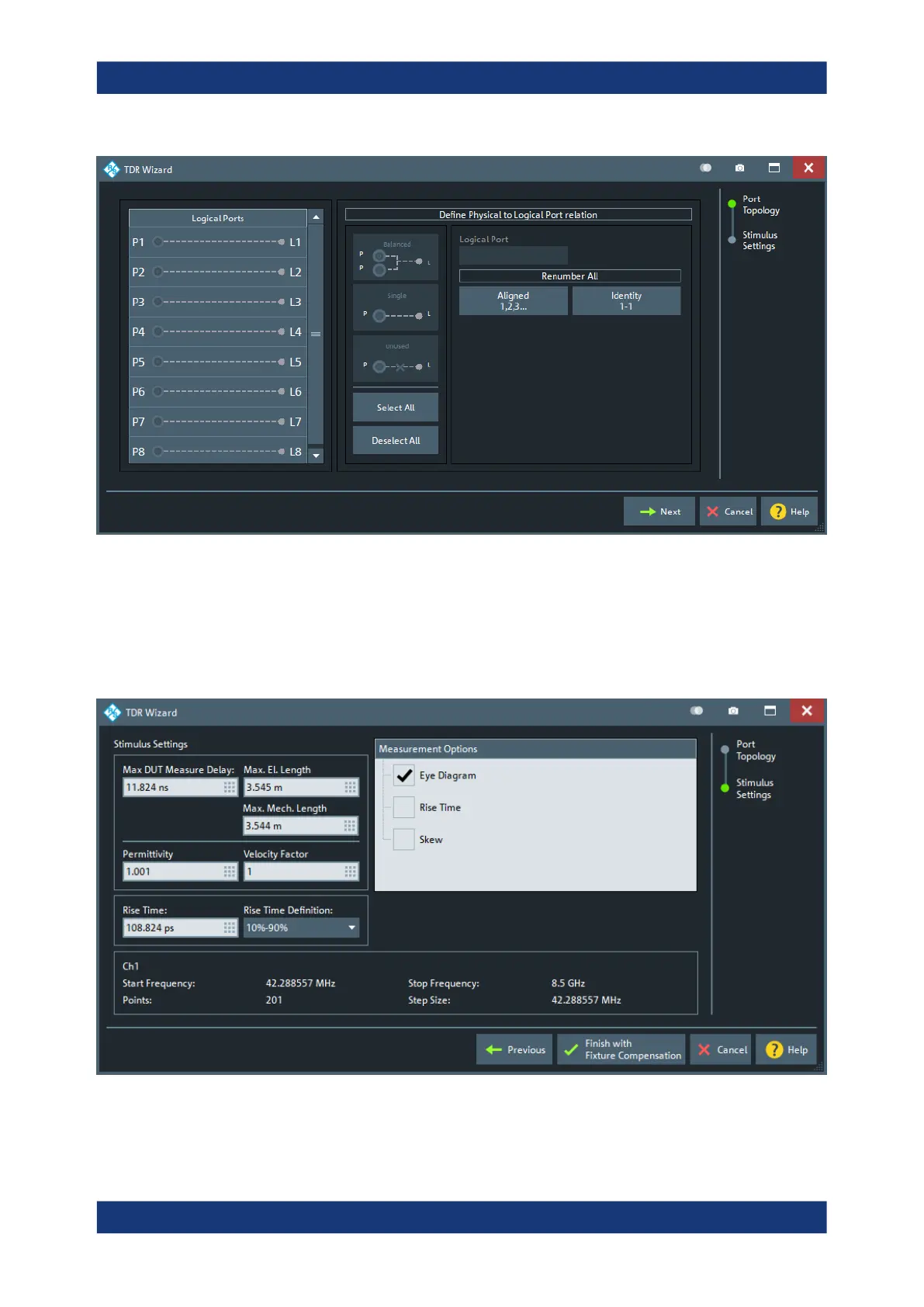

Figure 5-72: Port T
opology step (> 4 physical ports)
Step 2: Stimulus Settings
The "Stimulus Settings" step gives access to the basic settings of the
TDR Stimulus
Settings dialog
and allows you to select the time domain measurements to be per-
formed.
Once you have selected a measurement, you can finish the wizard and proceed to the
Fixture Compensation dialog
using the "Finish with Fixture Compensation" button.
Applic softtool
685
687
