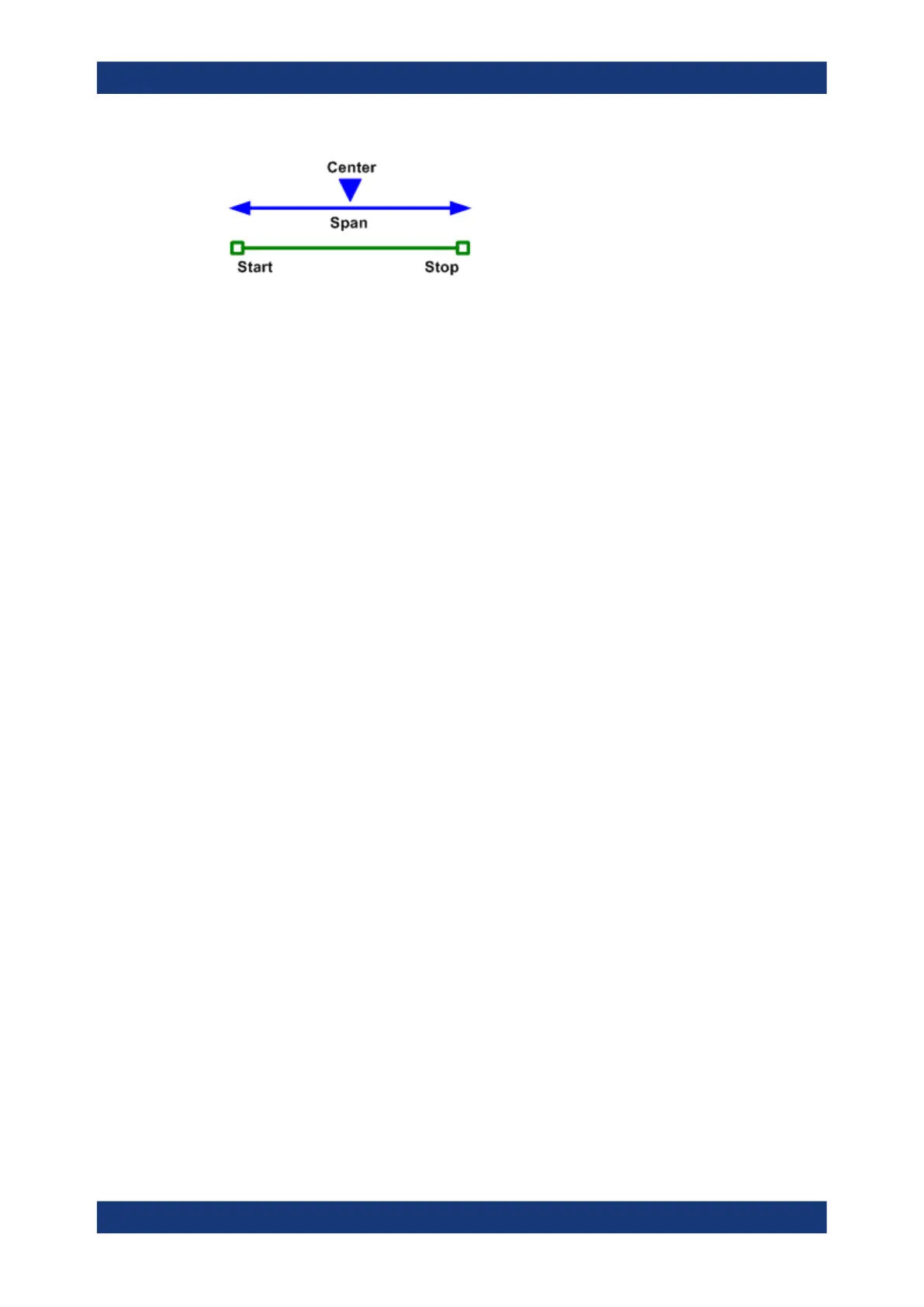

For a Log Freq only "Start Frequency" and "Stop Frequency" can be set.

Note: For segmented frequency sweeps the start and stop frequencies and the num-

ber of sweep points are defined per segment. See Chapter 5.10.2.2, "Define Segments

dialog", on page 431.

Remote command:

[SENSe<Ch>:]FREQuency:STARt

[SENSe<Ch>:]FREQuency:STOP

[SENSe<Ch>:]FREQuency:CENTer

[SENSe<Ch>:]FREQuency:SPAN

SYSTem:FREQuency? (query frequency range of the network analyzer)

Number of Points

Sets the total number of measurement points for CW Mode sweeps.

This value can also be set on the "Sweep Params" tab of the "Sweep"softtool (see

"Number of Points" on page 423).

Remote command:

[SENSe<Ch>:]SWEep:POINts

Stop Time

Defines the sweep range for Time sweeps.

Remote command:

[SENSe<Ch>:]SWEep:TIME

CW Frequency

Sets the fixed frequency for Power, CW Mode, and Time sweeps.

The "CW Frequency" is also used as the channel base frequency for frequency-con-

verting measurements; see Chapter 4.7.4, "Frequency conversion measurements",

on page 236.

Remote command:

[SENSe<Ch>:]FREQuency:FIXed

[SENSe<Ch>:]FREQuency[:CW]

SOURce<Ch>:FREQuency<PhyPt>:FIXed

SOURce<Ch>:FREQuency<PhyPt>[:CW]

5.8.2 Power tab

The "Power" tab provides settings related to transmit and receive power. It is also dis-

played on the "Power Bw Avg" softtool.

Stimulus softtool
