GUI reference

R&S

ZNB/ZNBT

404User Manual 1173.9163.02 ─ 62

Excursion Settings

Defines a minimum excursion for multiple peak searches and activates it.

If "Active", only peaks with an excursion above the configured "Excursion" value are

considered. By definition, the excursion of a peak is the smaller of the absolute differ-

ences in measured values from the adjoining peaks of opposite polarity.

The unit is derived from the active trace format and cannot be modified. Changing the

trace format resets the "Excursion" to a format-specific default value.

Remote command:

CALCulate<Chn>:MARKer:MPEak:EXCursion

CALCulate<Chn>:MARKer:MPEak:EXCursion:STATe

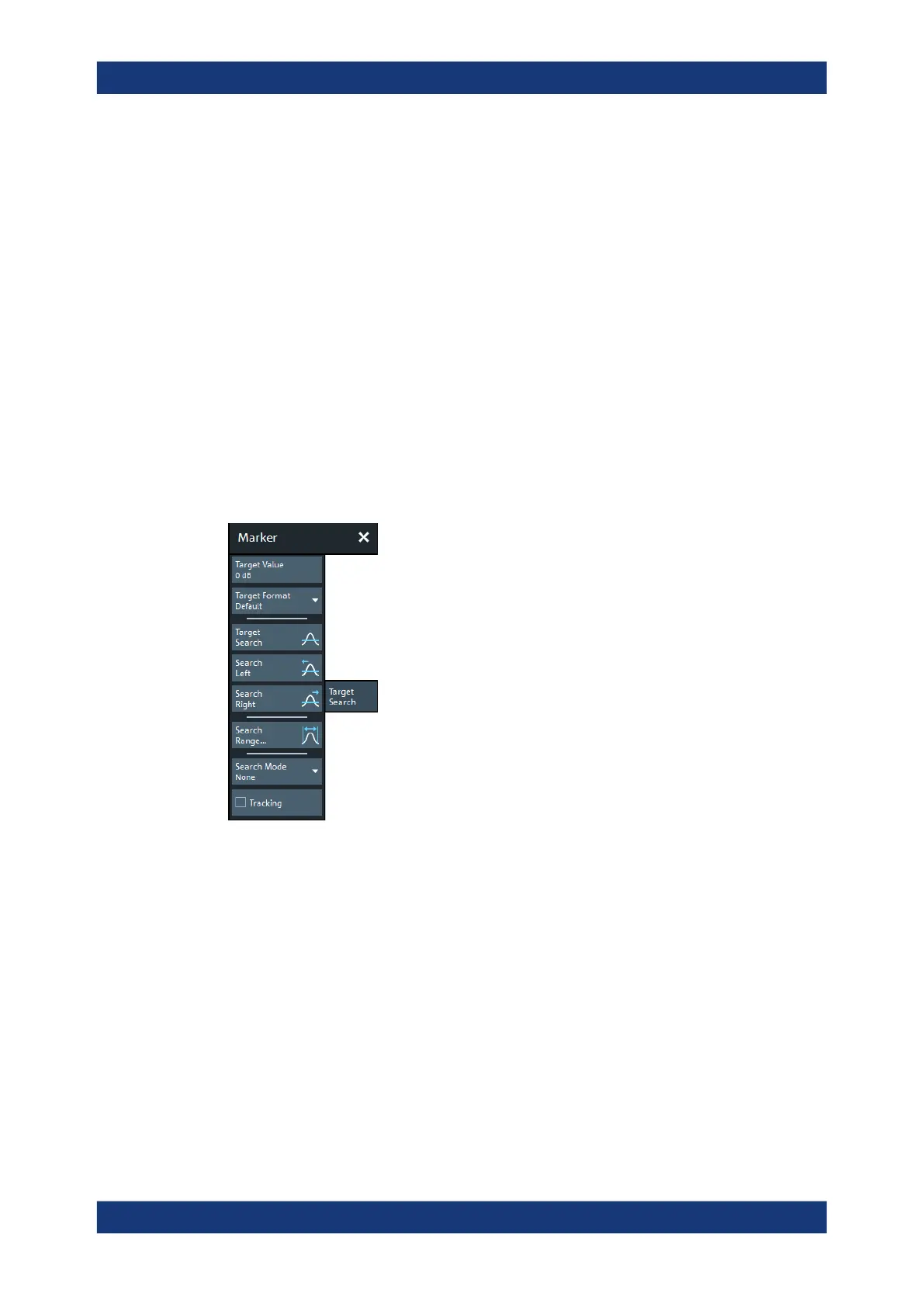

5.7.5 Target Search tab

The "Target Search" functions use markers to locate trace points with a specific

response value ("Target Value"). The functions are unavailable if the active trace con-

tains no markers (e.g. after "All Markers Off").

Some of the "Target Search" functions are equal to other marker search functions.

Refer to the following sections:

●

Chapter 5.7.3.2, "Search Range dialog", on page 399

●

"Tracking" on page 398

Target Value

Specifies the target value for the search.

The VNA software allows you to specify the target value in different formats (see Tar-

get Format below). For example, you can search for a particular phase value in a

Smith chart.

Remote command:

CALCulate<Chn>:MARKer<Mk>:TARGet

CALCulate<Chn>:MARKer<Mk>:REFerence:TARGet

Marker softtool
