GUI reference
R&S
®
ZNB/ZNBT
685
User Manual 1
173.9163.02 ─ 62
Step 1: Port T
opology
The "Port T
opology" step allows you to set up the (balanced) port configuration.

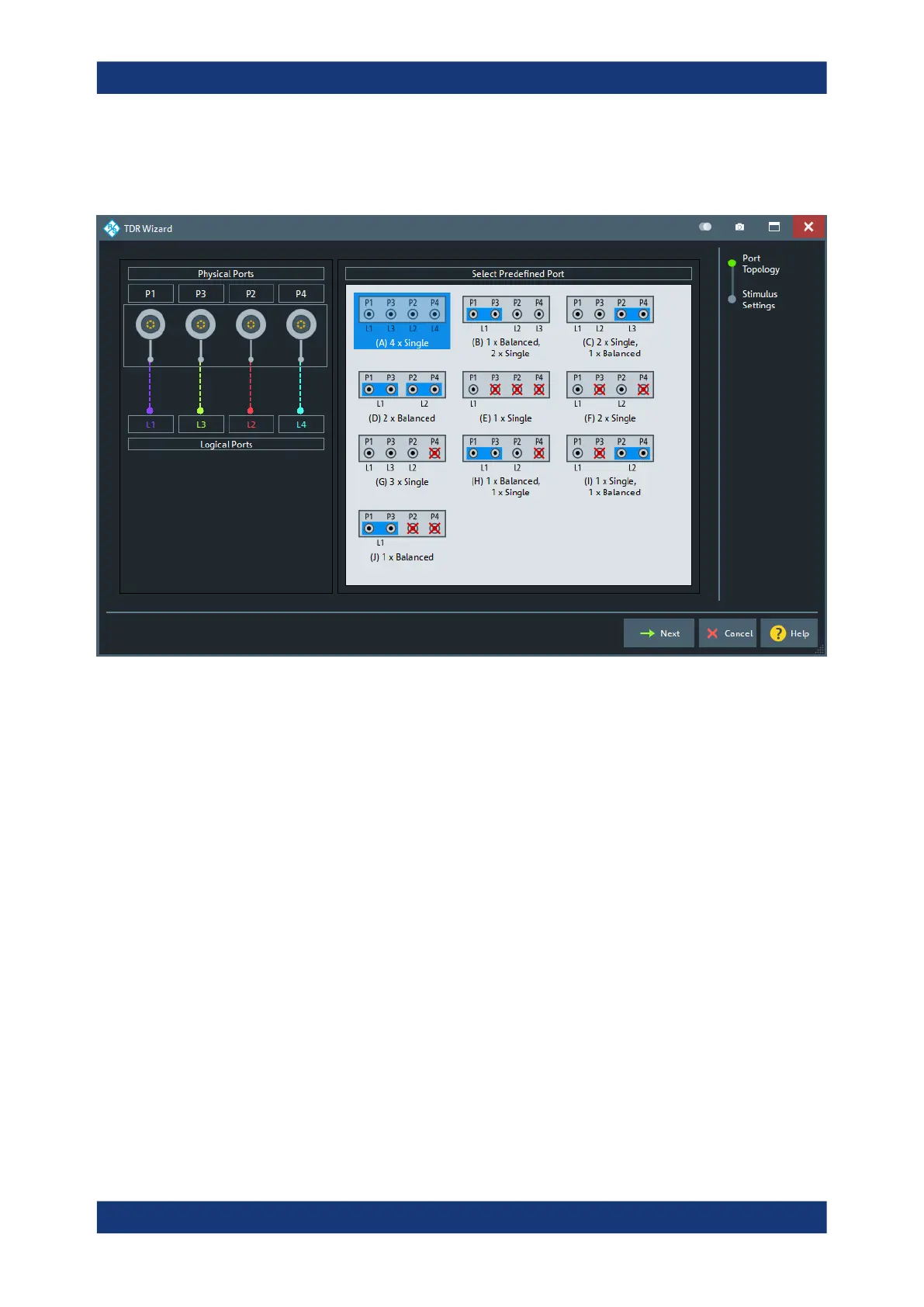

Figure 5-71: Port T
opology step (
≤
4 physical ports)
The port configurations are the same as the ones offered on the "Predefined Config"
tab of the
Balanced Ports dialog
.
Applic softtool
684
686
