R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
353User Manual 1173.9163.02 ─ 62
CALCulate<Chn>:TRANsform:TIME:LPASs:DCSParam:EXTRapolate
CALCulate<Chn>:TRANsform:TIME:LPFRequency

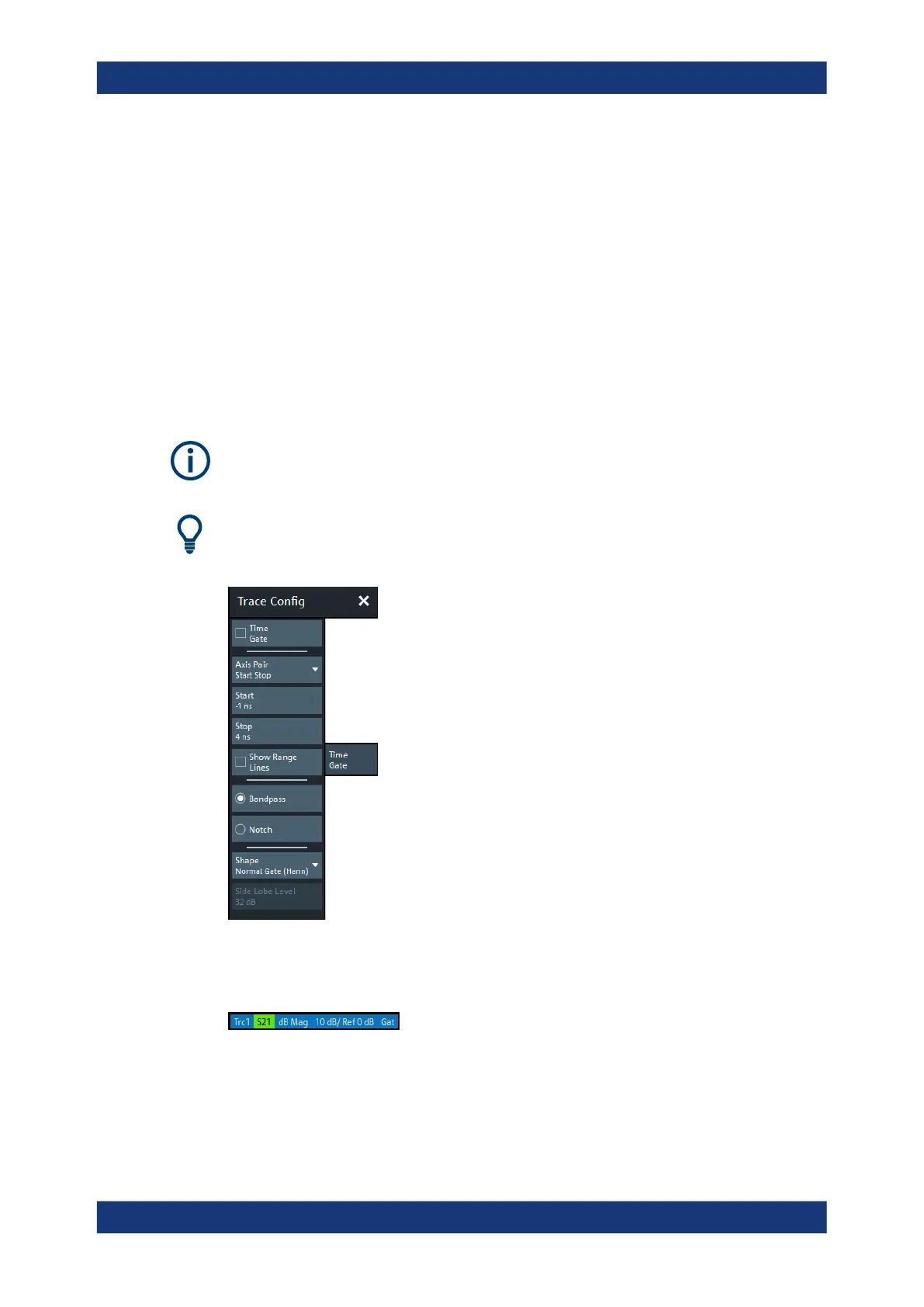

5.5.6 Time Gate tab
Defines and activates a gate in the time domain. An active time gate acts on the trace
in time domain and in frequency domain representation. In time domain representation,
you can use the time gate settings to eliminate unwanted responses in your signal.
After switching back to the frequency domain, you will receive the frequency response
of your DUT without the contribution of the unwanted responses. The time gate is inde-
pendent of the frequency window used to filter the trace before transforming it to time
domain.
Time domain analysis requires option R&S ZNB-K2 / R&S ZNBT-K2. If this option is
not installed, the Time Domain tab and "Time Gate" tabs are hidden.
Background information
Refer to Chapter 4.7.2.5, "Time gates", on page 227.
Time Gate
Enables or disables the time gate for the time domain and frequency domain traces.
"Gat" is displayed in the trace list while the time gate is active.
Remote command:
CALCulate<Chn>:FILTer[:GATE]:TIME:STATe
Trace Config softtool
