R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
594User Manual 1173.9163.02 ─ 62

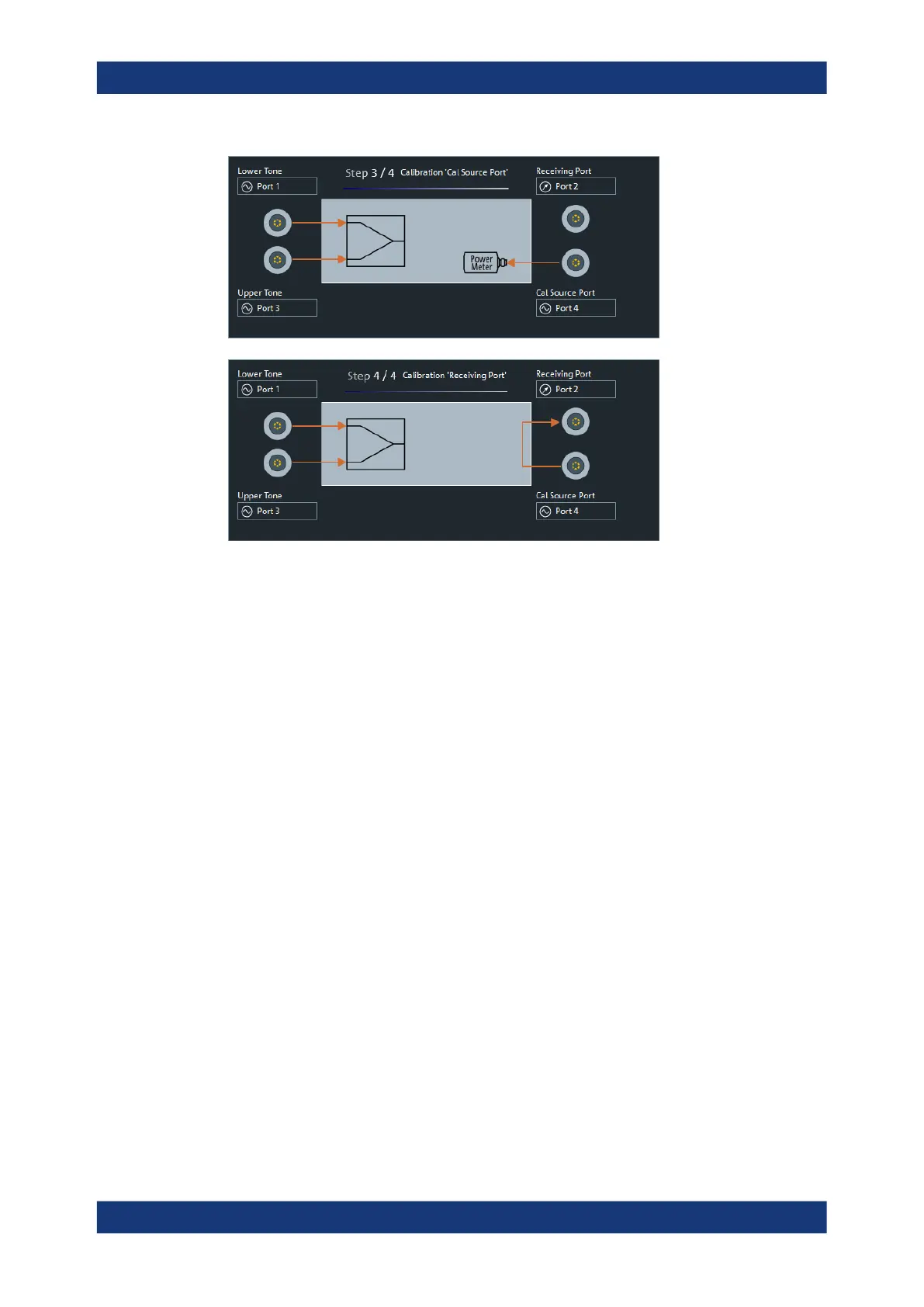

The progress of the calibration is monitored in the calibration sweep diagram, in close
analogy to an ordinary power sweep; see "Calibration Sweep Diagram" on page 477.
Remote command:
SOURce<Ch>:POWer<PhyPt>:CORRection:IMODulation:LTONe[:ACQuire]
SOURce<Ch>:POWer<PhyPt>:CORRection:IMODulation:UTONe[:ACQuire]
SOURce<Ch>:POWer:CORRection[:ACQuire]
[SENSe<Ch>:]CORRection:POWer<PhyPt>:IMODulation:ACQuire
Apply
After all calibration steps have finished successfully, "Apply" activates the resulting
power calibrations and closes the "Intermod. Pwr. Cal" wizard.
5.12.5 Pwr Cal Settings tab
Replicates the "Pwr Cal Settings" tab of the "Cal" softtool (see Chapter 5.11.3, "Pwr
Cal Settings tab", on page 524).
5.12.6 Mixer Mode tab
Controls the measurement of the mixing products generated by a mixer under test
(MUT) that is supplied with two independent RF signals. The scalar mixer mode is
included in option R&S ZNB/ZNBT-K4. An extension to a two-stage mixer system is
possible.
Two dedicated "SMARTerCal" wizards facilitate the channel calibration.
Channel Config softtool
