5.14.3 Print tab

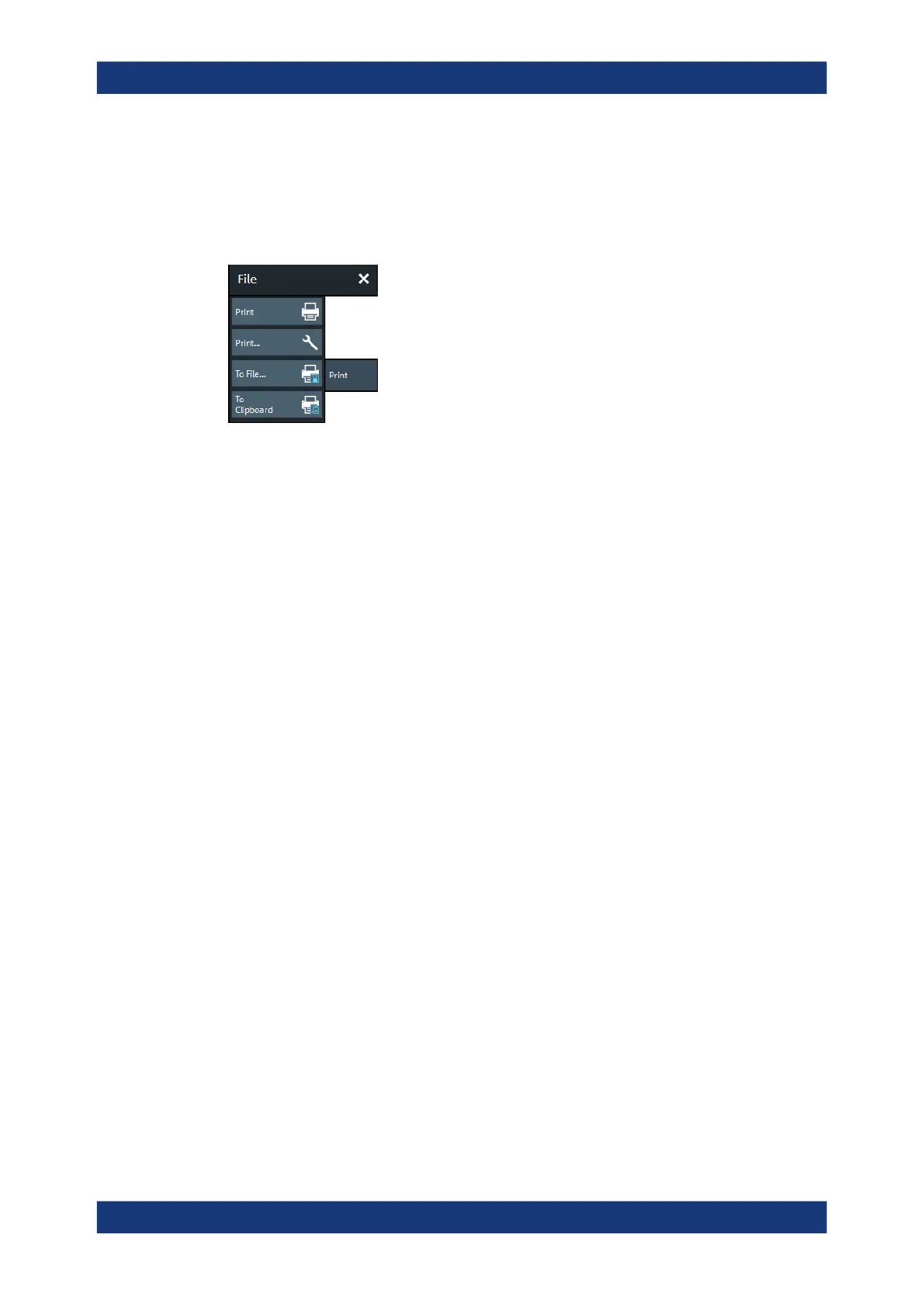

The buttons on the "Print" tab allow you to send the diagrams of the active setup to an

external printer, to a file or to the clipboard. Content and layout can be defined in the

Printer Setup dialog.

Prints the diagrams using the current content, printer and page settings (see Chap-

ter 5.14.4, "Printer Setup dialog", on page 675).

Remote command:

The HCOPy... commands provide the printer settings; see HCOPy commands.

HCOPy[:IMMediate] initiates printing.

Print...

Opens a dialog that allows to define the content, printer and page settings (see Chap-

ter 5.14.4, "Printer Setup dialog", on page 675).

To File...

Opens the "Save Image" dialog that allows you to select a graphics file type

(*.bmp, *.jpg | *.jpeg, *.pdf, *.png, *.svg) and to save diagram con-

tent to a file of this type (see also "Save Dialog" on page 115).

Note that the diagram content to be saved can be configured in the Content tab >

"Print Charts" group of the "Printer Setup" dialog. E.g., if you select "All diagrams on

their own page" there, then only the content of the active diagram is saved to file. If you

select "No diagram at all", then "To File..." is disabled.

Remote command:

HCOPy:DESTination

To Clipboard

Copies diagram content to the clipboard, from where you can paste it into another

application.

Note that the diagram content to be copied can be configured in the Content tab >

"Print Charts" group of the "Printer Setup" dialog. E.g., if you select "All diagrams on

their own page" there, then only the content of the active diagram is copied to clip-

board. If you select "No diagram at all", then "To Clipboard" is disabled.
