The available GUI elements for the limit line definition are the same as in the general-
purpose limit line setup dialog. For their description, see Chapter 5.6.1.2, "Define Limit
Lines dialog", on page 377.
Prompt before every port check
This option comes in handy if you want to connect a particular device such as a reflec-
tion standard to the related port before you execute or repeat the test.
Execute/Repeat
Executes or repeats the "Active" port power tests with their current limit line and power

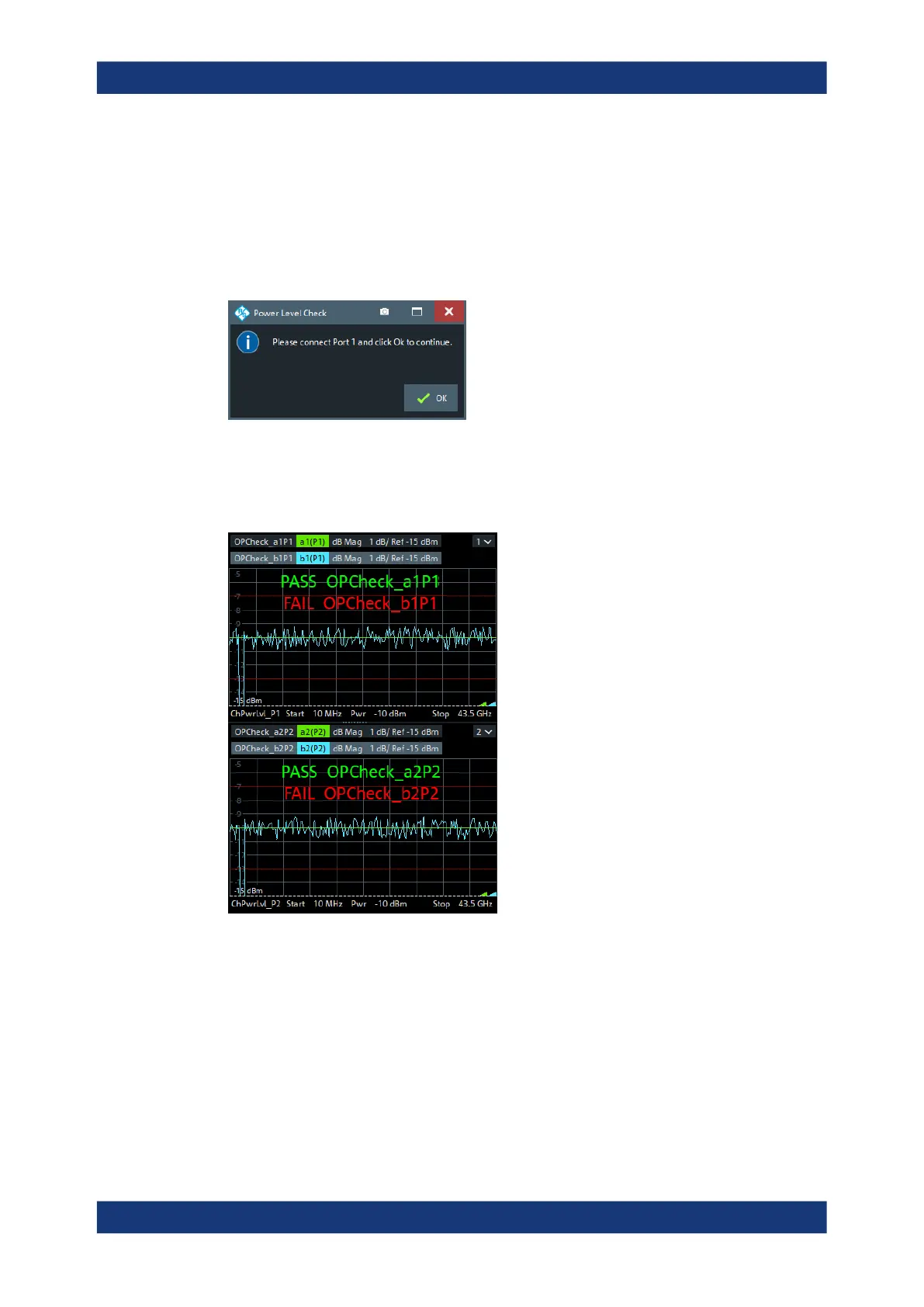

level settings. The firmware displays the relevant a- and b-wave traces, limit lines and
PASS/FAIL results and in the diagram area:
The PASS/FAIL results are also written to the
Log area.
Remote command:
SYSTem:OPCHeck:PLEVel:PORT<Port>?
Summary page
Summarizes the check results and allows you to print them.
Setup softtool
