5.11.5 METAS Cal tab

The controls on the "METAS Cal" tab allow you to set up the instrument for real-time

measurement uncertainty analysis. It is only visible if option R&S ZNB-K50 "Measure-

ment Uncertainty Analysis" and METAS VNA Tools (version 2.2.3 or higher) are instal-

led on the instrument.

For background information, see Chapter 4.7.7, "Measurement uncertainty analysis",

on page 247.

●

For the R&S ZNBT, the "Measurement Uncertainty Analysis" option is not availa-

ble.

●

If external switch matrices are used, measurement uncertainty analysis is not sup-

ported.

●

METAS calibration and verification is not fully supported via remote control. Some

actions must be performed from the VNA GUI.

5.11.5.1 Controls on the METAS Cal tab (option K50)

METAS Cal Active

After a successful METAS calibration, this checkbox enables or disables the uncer-

tainty calculation for the related channel.

●

If enabled, measurement results and uncertainties are calculated by METAS VNA

Tools.

●

If disabled, the VNA calculates the measurement results based on standard sys-

tem error correction data (without uncertainties)

Remote command:

[SENSe<Ch>:]CORRection:METas[:STATe]

METAS Calibration – Start... (Manual)

Opens the METAS Calibration (Manual) dialog. A successful METAS calibration is acti-

vated immediately.

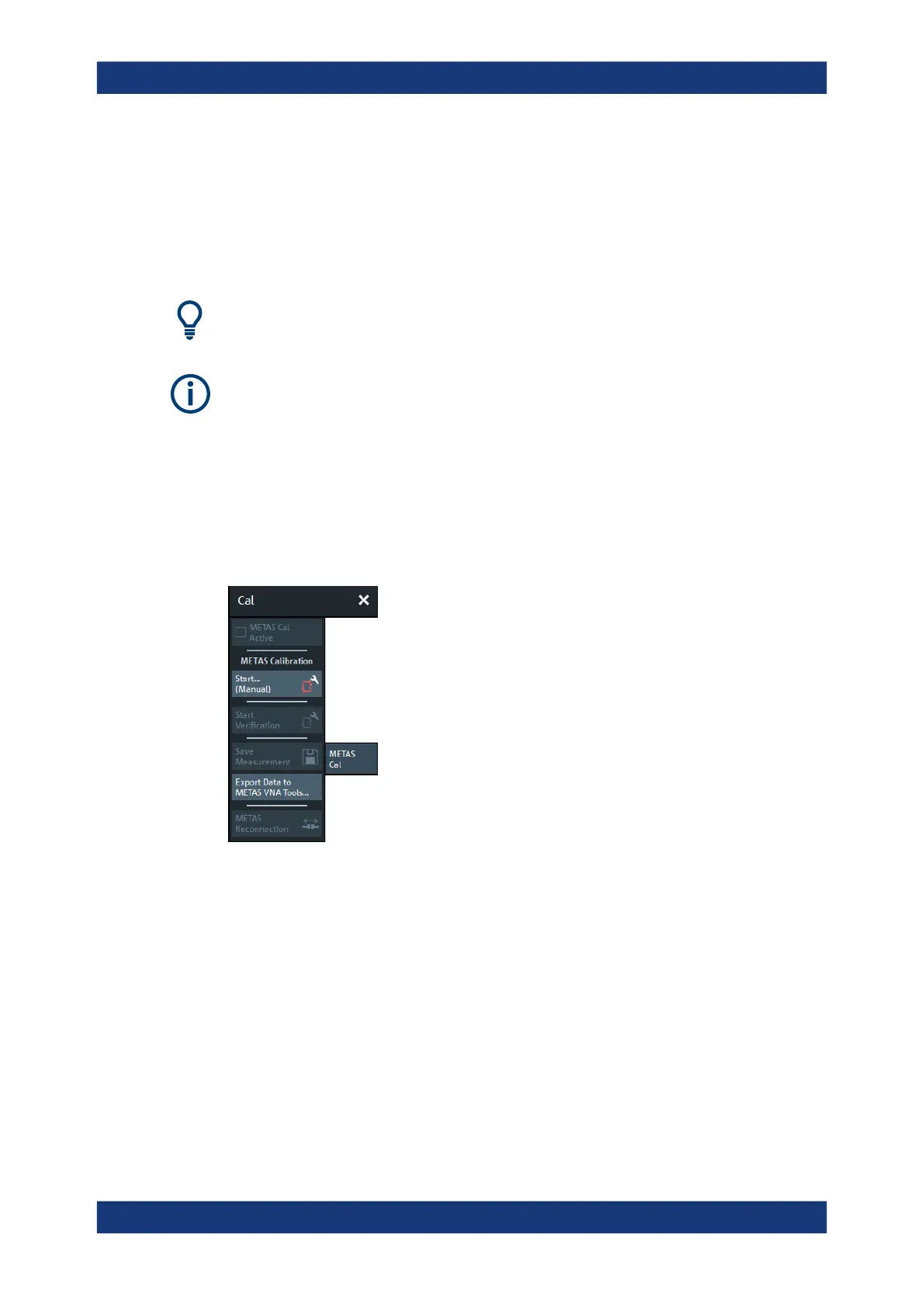

Cal softtool
