A TTL signal indicating pass or fail can be generated in addition.
Remote command:
CALCulate<Chn>:EYE:MASK:STATe
CALCulate<Chn>:EYE:MASK:DATA?
CALCulate<Chn>:EYE:MASK:FAIL?

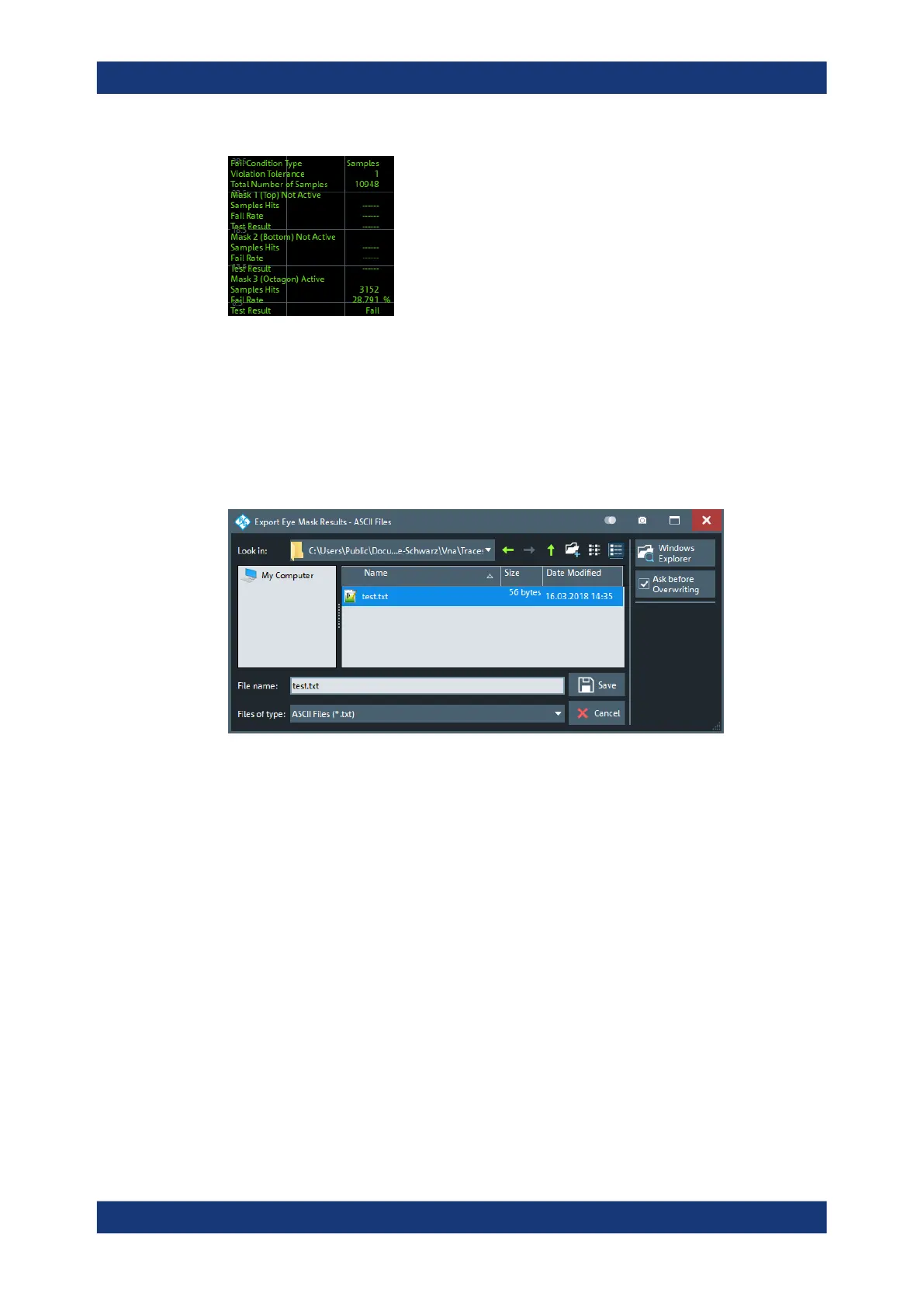

Export Test Results
Opens a dialog that allows the user to save the mask test results to an ASCII file.
Remote command:
MMEMory:STORe:EYE:MASK:RESults
Global Check, TTL1 Pass, TTL2 Pass
see Chapter 5.6.1, "Limit Test tab", on page 373
5.16.2.8 Define Mask Configuration dialog
Allows you to set up the mask the simulated eye diagram shall be tested against.
Access: System – [Applic] > "TDR" > "Eye Mask Test" > "Define Mask..."
There are three mask areas that can be set up for the eye diagram test: center poly-
gon, top rectangle, and bottom rectangle. Testing against these mask areas can be
selectively enabled.
