Configured External Switch Matrices

The "Hardware" tab also provides information about connected switch matrices. In par-

ticular, for mechanical matrices the current relay switch counts are reported (if suppor-

ted by the matrix).

Remote command:

SYSTem:COMMunicate:RDEVice:SMATrix<Matr>:RELays:SWITch:COUNt?

Selftest tab

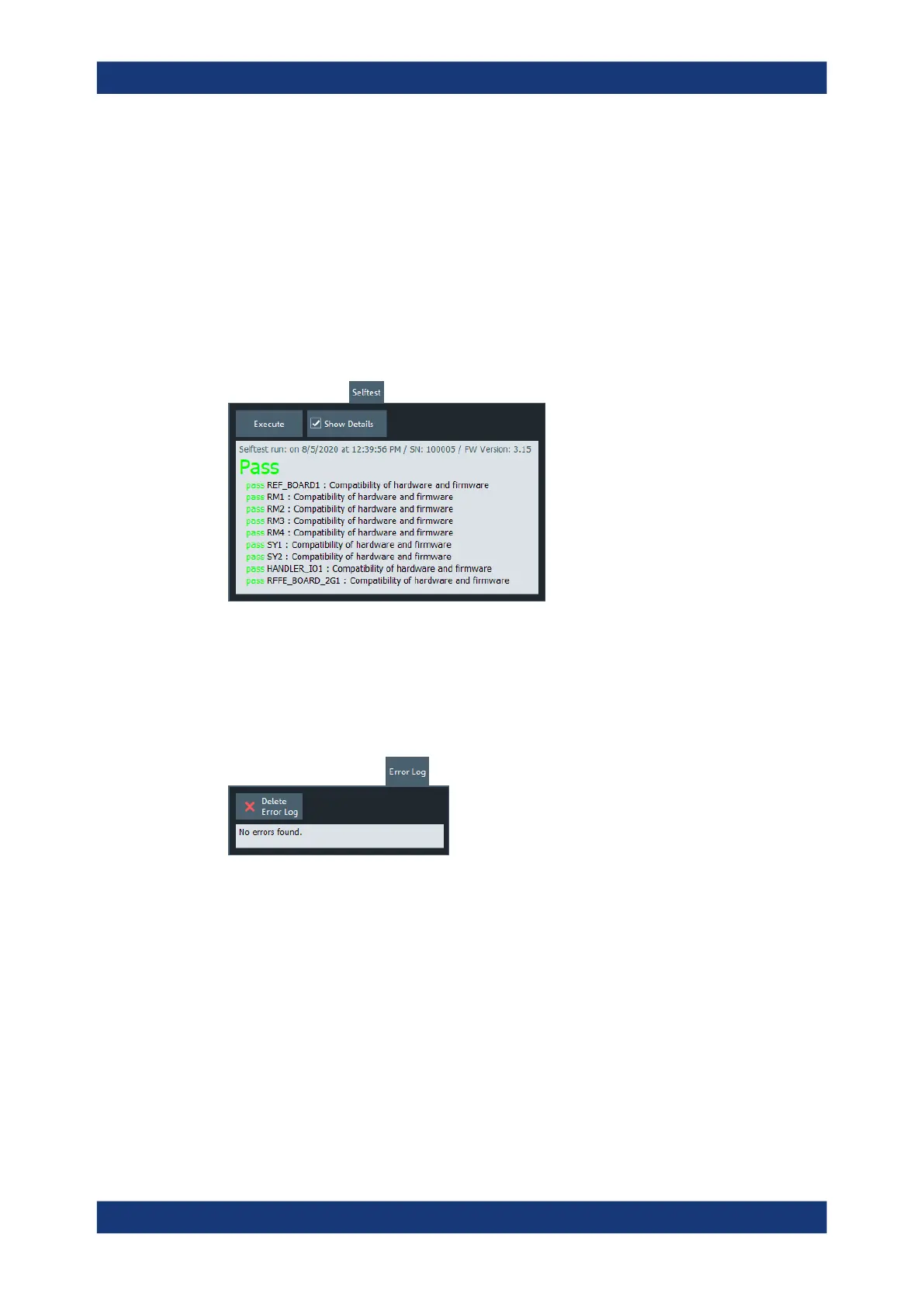

Allows you to run an automatic selftest on the analyzer, and to display its results.

Check "Show Details" to see the detailed test results.

Error Log tab

Contains a chronological record of errors that occurred in the current and in previous

sessions (see Chapter 9.1, "Errors during firmware operation", on page 1528).

The "Error" tab comes with an additional button for clearing the log ("Delete Error

Log").

Cal Validation tab

Displays the result of the last cal validation. See "Cal Validation ..." on page 447.
