R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
598User Manual 1173.9163.02 ─ 62
Depending on your selection, the wizard either closes without calibration or
launches one of the mixer measurement-specific SMARTerCal wizards (see Chap-
ter 5.12.6.4, "SMARTerCal (Cal Unit) wizard for mixer mode", on page 602 and
Chapter 5.12.6.5, "SMARTerCal (Manual) wizard for mixer mode", on page 603).

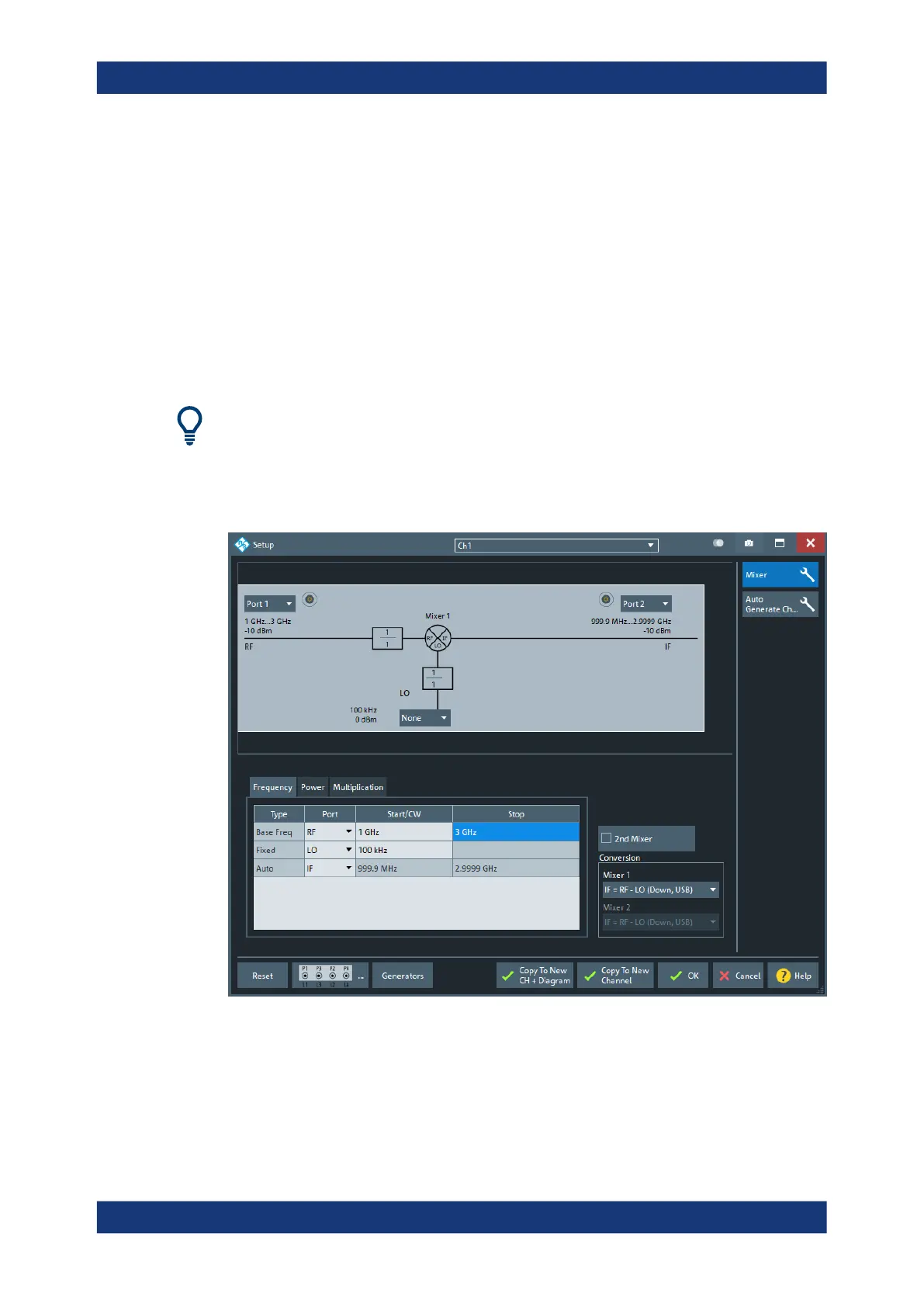

5.12.6.3 (Mixer) Setup dialog
The "(Mixer) Setup" dialog is an example of a Multi-channel setup dialog. It lets you set
up one or more channels for mixer measurements.
Access: Channel – [Channel Config] > "Mixer Mode" > "Mixer Meas..."
Background information
Refer to the following sections:
●
Chapter 4.7.4.2, "Scalar mixer measurements", on page 238
●
"Two-stage mixer measurements" on page 239
The upper part the "Define Mixer Meas" dialog shows a diagram with the RF and LO
signals, the mixing product (IF), and the current frequency and power ranges for all sig-
nals. The diagram is adjusted according to the "2nd Mixer" selection; see "Two-stage
mixer measurements" on page 239.
In the lower part of the dialog, the frequency and power settings are performed.
Channel Config softtool
