GUI reference
R&S
®
ZNB/ZNBT
777User Manual 1173.9163.02 ─ 62
Remote command:
[SENSe:]ROSCillator:EXTernal:FREQuency

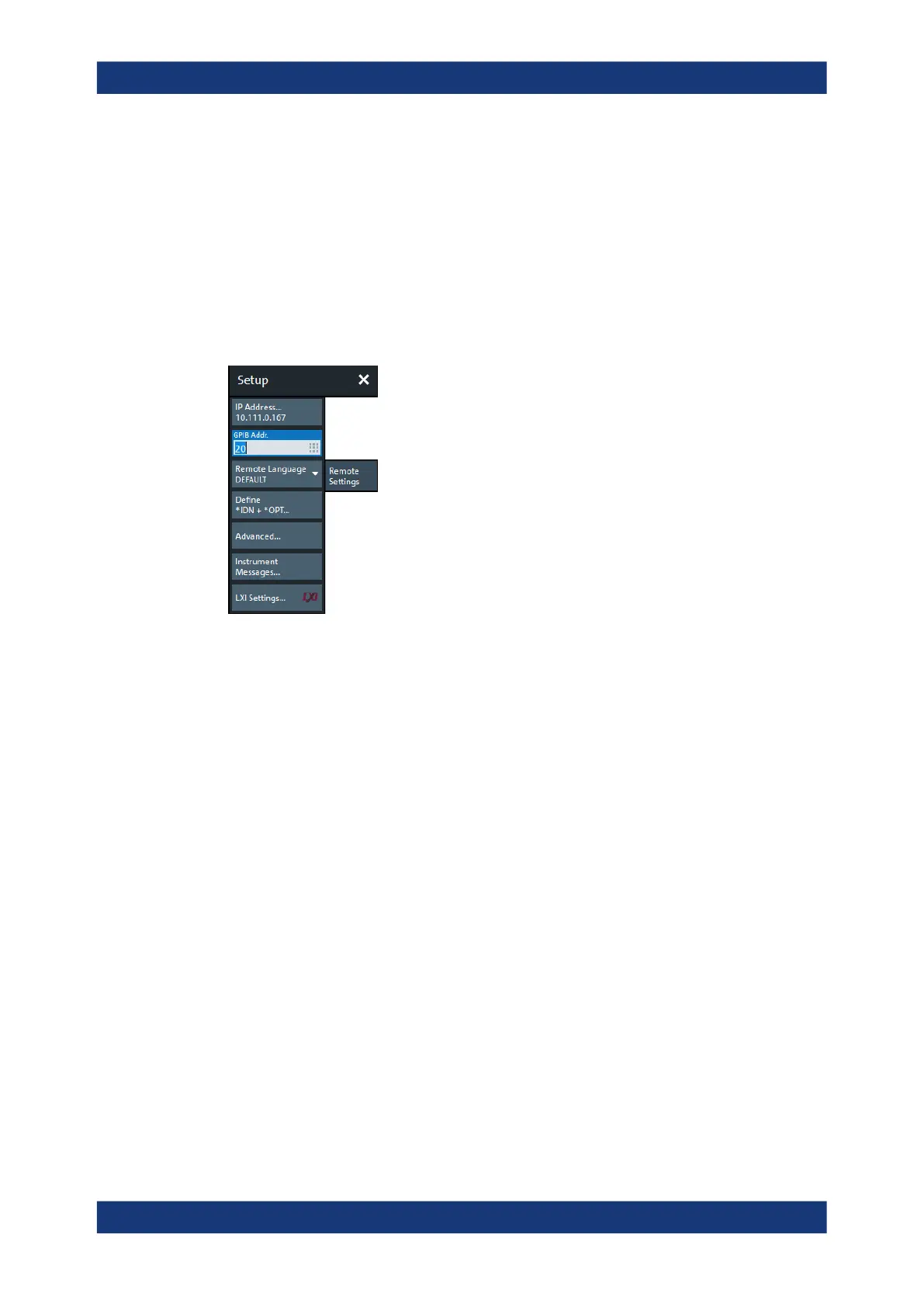

5.18.3 Remote Settings tab
Configures the remote control interfaces of the R&S ZNB/ZNBT.
5.18.3.1 Controls on the Remote Settings tab
IP Address
Displays the current IP4 address of the R&S ZNB/ZNBT. By default, the analyzer is
configured to use dynamic TCP/IP configuration (DHCP) and obtain all IP address
information automatically. See Chapter 3.1.12.1, "Assigning an IP address",
on page 35.
The button opens the Windows "Network Connections" system config dialog that
allows you to configure the IP4 (and IP6) settings of your instrument.
GPIB Address
Defines the analyzer's GPIB address. The address must be in the range between 0
and 30.
Remote command:
SYSTem:COMMunicate:GPIB[:SELF]:ADDRess
SYSTem:COMMunicate:GPIB[:SELF]:DCLear:SUPPress
Remote Language
Selects the syntax of the R&S ZNB/ZNBT's instrument control commands.
●
The DEFAULT language corresponds to the commands reported in this documen-
tation; see Chapter 7.3, "SCPI command reference", on page 843.
●
The ZVABT language ensures compatibility with network analyzers of the R&S
ZVA/B/T family. E.g., compared to the DEFAULT language, the command set does
not include INITiate:CONTinuous:ALL and INITiate[:IMMediate]:ALL.
The function of INITiate:CONTinuous and
Setup softtool
