Imported cal kits with uncertainties are preserved and added to the Cal Kit selection

combo-box. There and in the Calibration Kits dialog, they appear with an "Uncertainty"

flag.

Start

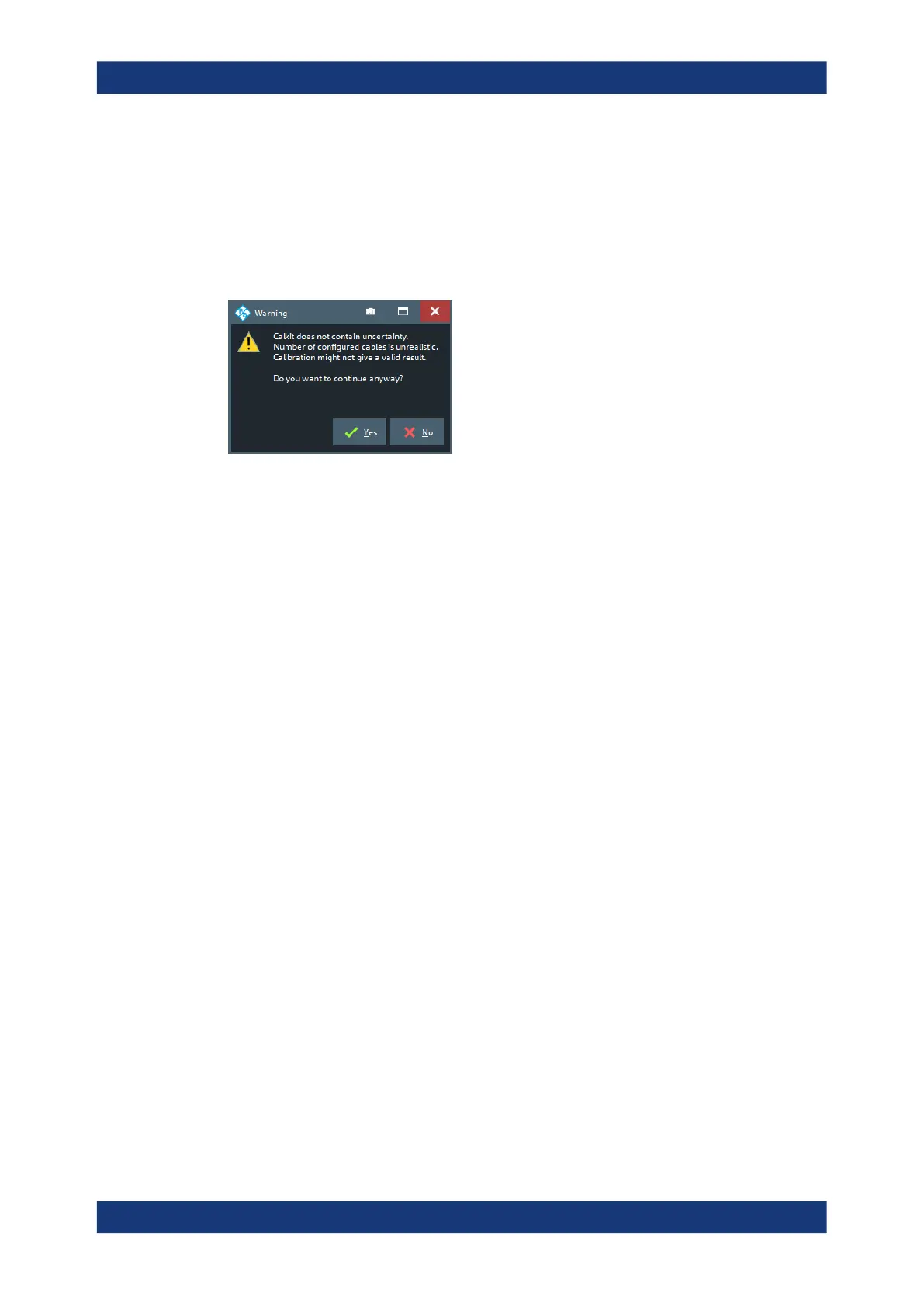

Proceeds to Step 3: Calibration. If the configuration is not plausible, a warning is dis-

played:

Step 3: Calibration

In step 3, the calibration is performed. The procedure is the same as for regular cali-

brations of the selected type (see "Step 3: Calibration" on page 468).

On "Apply", the raw calibration data are transferred to METAS VNA Tools, which take

over the calculation of measurement results and uncertainties: METAS Cal Active is

enabled automatically.

In parallel to the "METAS Calibration", a regular VNA calibration without uncertainties

is created. This calibration can be activated if "METAS Cal Active" is unchecked.

5.11.5.3 METAS Verification dialog

This dialog allows you to set up and perform a Verification of a METAS Calibration.

For background information see "Verification" on page 249.

Access: Channel – [Cal] > "METAS Cal" > "Start Verification"

Step 1: Verification Kit

Allows you to select the verification kit to be used. All other settings are taken from the

active METAS calibration and cannot be changed.
