R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
374User Manual 1173.9163.02 ─ 62

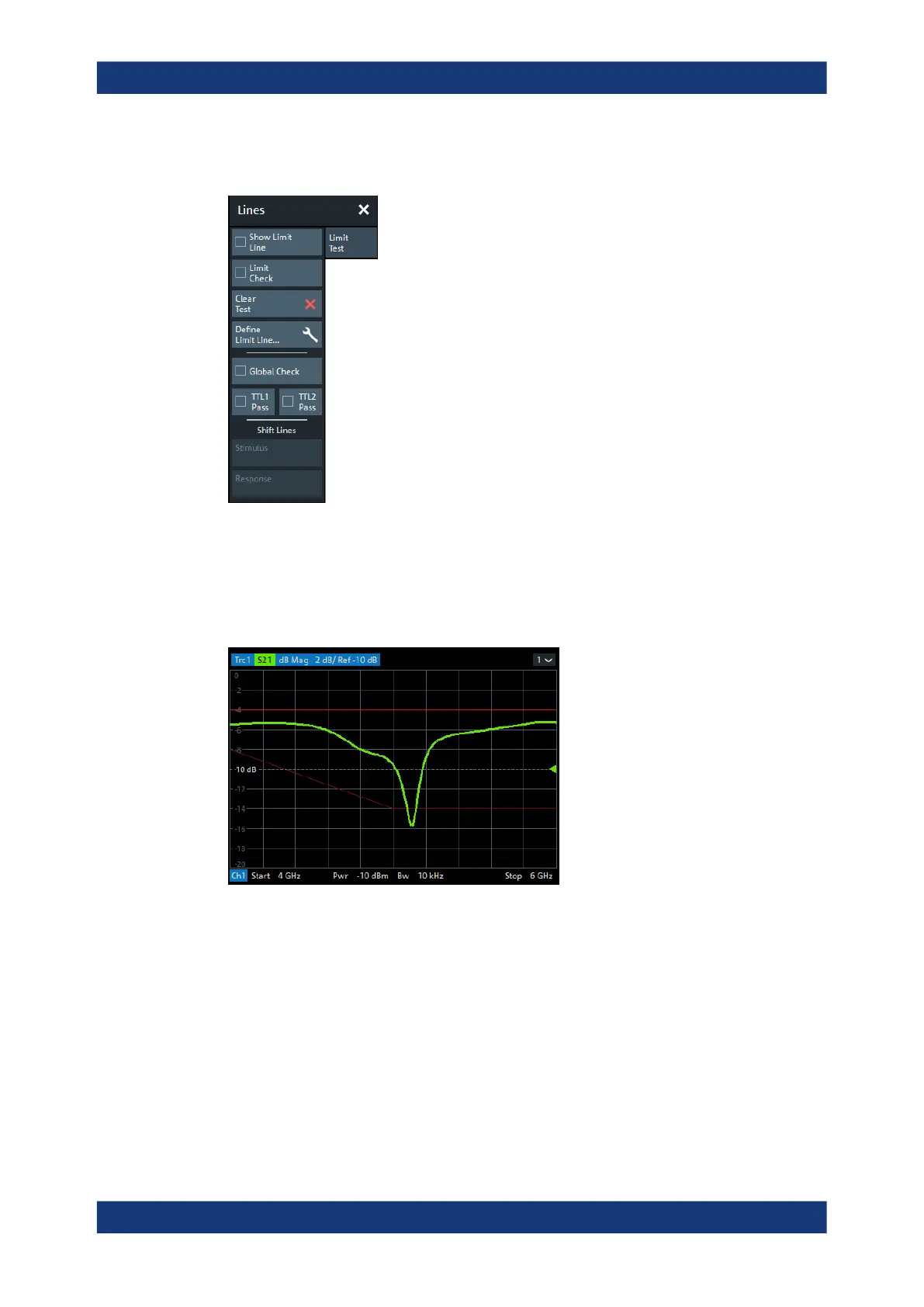

5.6.1.1 Controls on the Limit Test tab
The "Define Limit Line..." button opens the "Define Limit Lines" dialog (see Chap-
ter 5.6.1.2, "Define Limit Lines dialog", on page 377).
Show Limit Line
Shows or hides the limit line associated with the active trace in a Cartesian diagram
area.
The limit line colors are defined in the Define User Color Scheme dialog (System >
[Display] > "Config" > "Define User Color..."). You can choose between various options:
●
Display upper and lower limit lines with different colors.
●
Assign the same color to traces and associated limit lines.
●
Assign different colors to limit line segments with disabled limit check.
Note: Displaying the limit line and limit check are independent of each other: Hiding
the limit line does not switch off the limit check.
Remote command:
CALCulate<Chn>:LIMit:DISPlay[:STATe]
Lines softtool
