Sweep Sequencer tab
Gives access to the "Sweep Sequencer" functionality, see Chapter 5.12.1.6, "Sweep
Sequencer", on page 558.

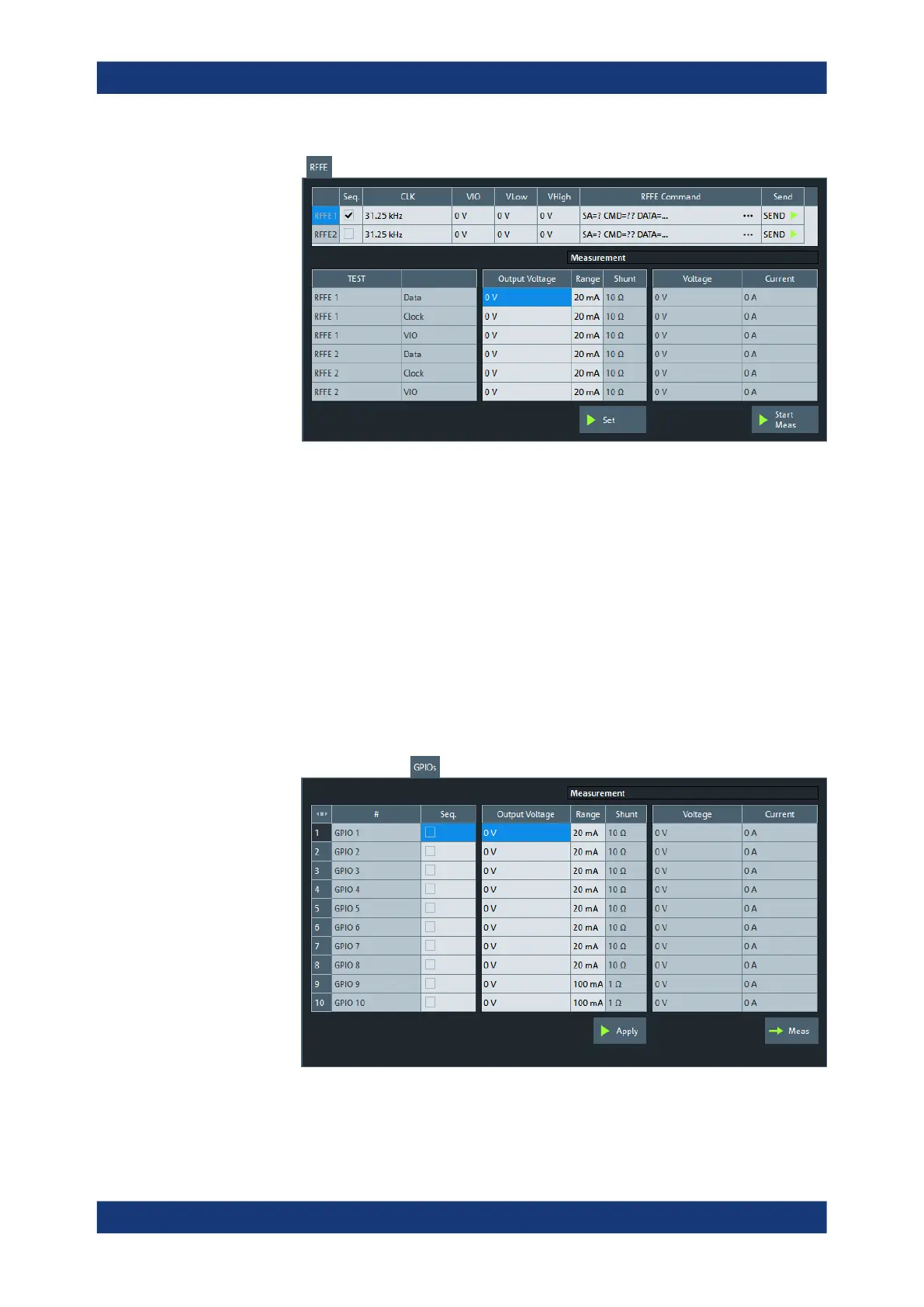

GPIOs tab
The "GPIOs" tab is split into two parts:
●
The left part of the table area (up to column "Output Voltage") allows you to define
and apply the GPIO pin voltages (see "Basic GPIO configuration" on page 556).
●
The right part allows you to define and execute voltage and current measurements
on the GPIO pins (see "GPIO voltage and current measurements" on page 557)
The "Apply" button activates both the "Output Voltage" and "Range" ("Shunt" resist-
ance) settings. The "Meas" button starts the voltage and current measurements.
