Furthermore, provides functions for renumbering the logical ports.
Remote command:
SOURce<Ch>:LPORt<LogPt>
SOURce<Ch>:LPORt<LogPt>:CLEar
Reference Impedance tab
The "Reference Impedance" tab of the "Balanced Ports" dialog allows you to define (or
redefine) the impedances of the logical ports.
Background information
Refer to Chapter 4.3.2, "Reference impedances", on page 128.

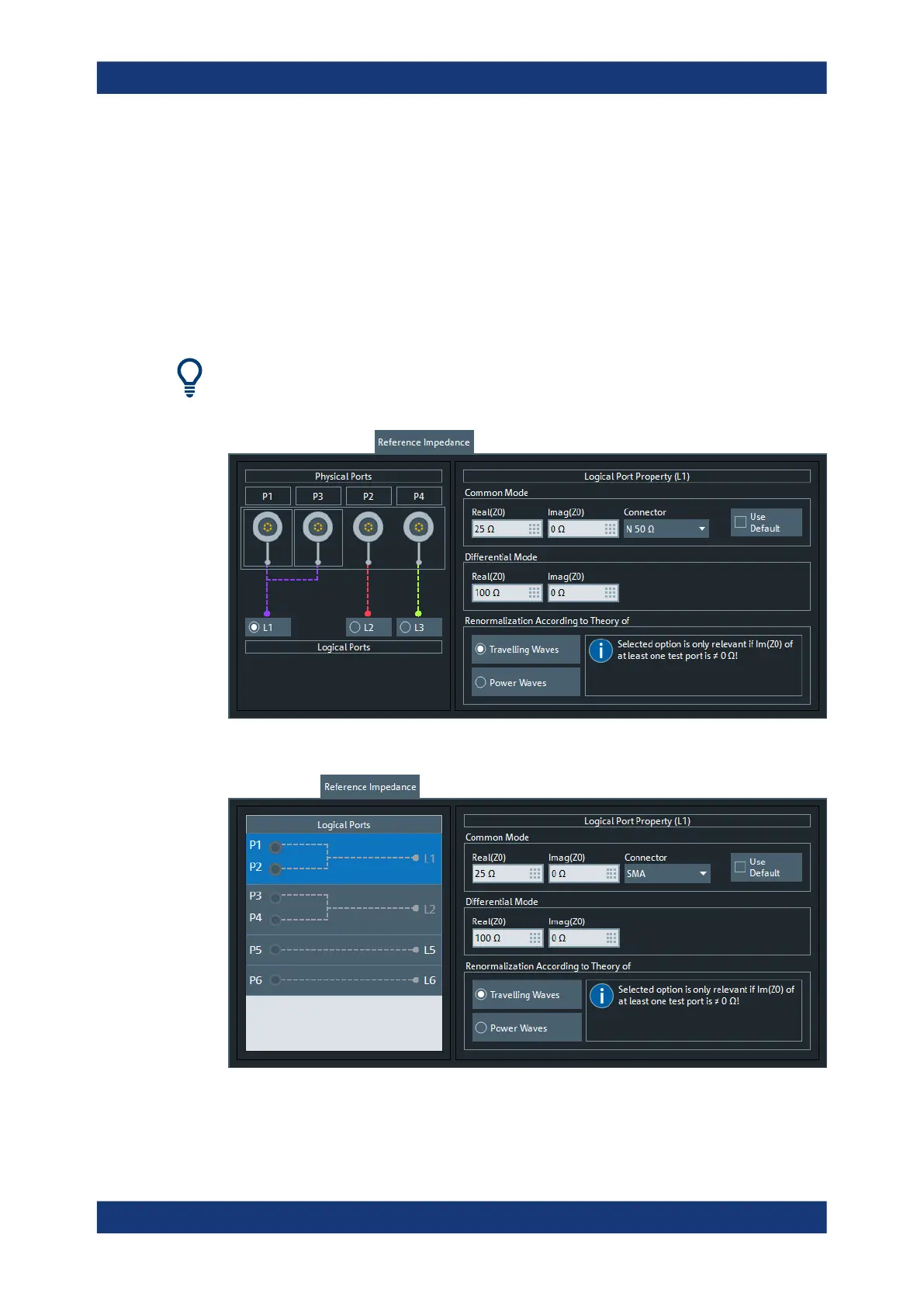

Figure 5-1: Reference Impedance Tab (4 physical ports)
Figure 5-2: Reference Impedance Tab (>4 physical ports)
