GUI reference
R&S
®
ZNB/ZNBT
724User Manual 1173.9163.02 ─ 62
Data of completed calibrations are saved, data of incomplete calibrations are discar-
ded.

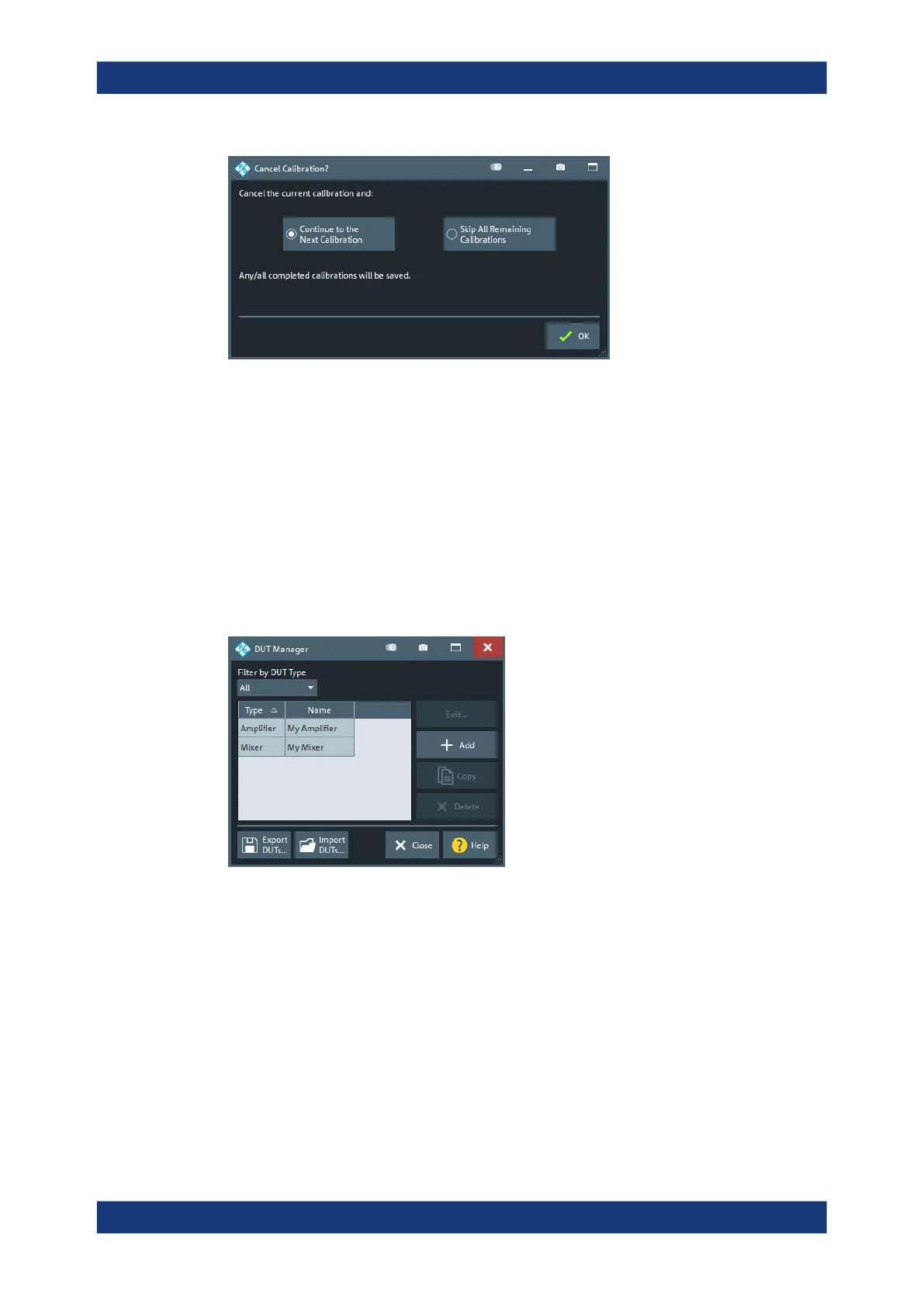

5.16.3.2 DUT Manager dialog
The DUT manager allows you to create, configure, and manage DUTs.
Access:
System – [Applic] > "Application: DUT Centric" > "DUT Manager..."
DUT Centric Wizard > "Define DUT" > "DUT Manager..."
Controls on the DUT Manager dialog
Filter by DUT Type
Use this filter to focus on DUTs of a particular type.
With a particular DUT type selected, the table area only shows DUTs of this type and
the "Add" button creates DUTs of this type without further inquiry.
If the "DUT Manager" is opened from the "DUT Centric Wizard", the filter is set to the
DUT type that is being configured.
Edit...
This button is only active, if exactly one row is selected in the table area. It allows you
to edit the selected DUT.
Depending on the type of the selected DUT, "Edit..." opens the Amplifier Configuration
dialog or Mixer Configuration dialog.
Applic softtool
