GUI reference
R&S
®
ZNB/ZNBT
453User Manual 1173.9163.02 ─ 62
These buttons are only shown if more than 4 ports are available.
Next
Proceeds to Step 2: Connections. "Next" is unavailable (and a warning is displayed) if
the following happens:
●
The selected characterization data do not cover all the ports to be calibrated.
●
The selected characterization data do not contain all standards needed for the
selected calibration type.
Step 2: Connections
Defines the port assignments between the R&S ZNB/ZNBT and the calibration unit.
Background information
Refer to:
●
Chapter 4.5.5.6, "Multiple port assignments", on page 191 for details on multiple
port assignments
●
"Step 2: Connections" on page 487 for SMARTerCal.
Depending on the number of test ports, the user interface is slightly different:

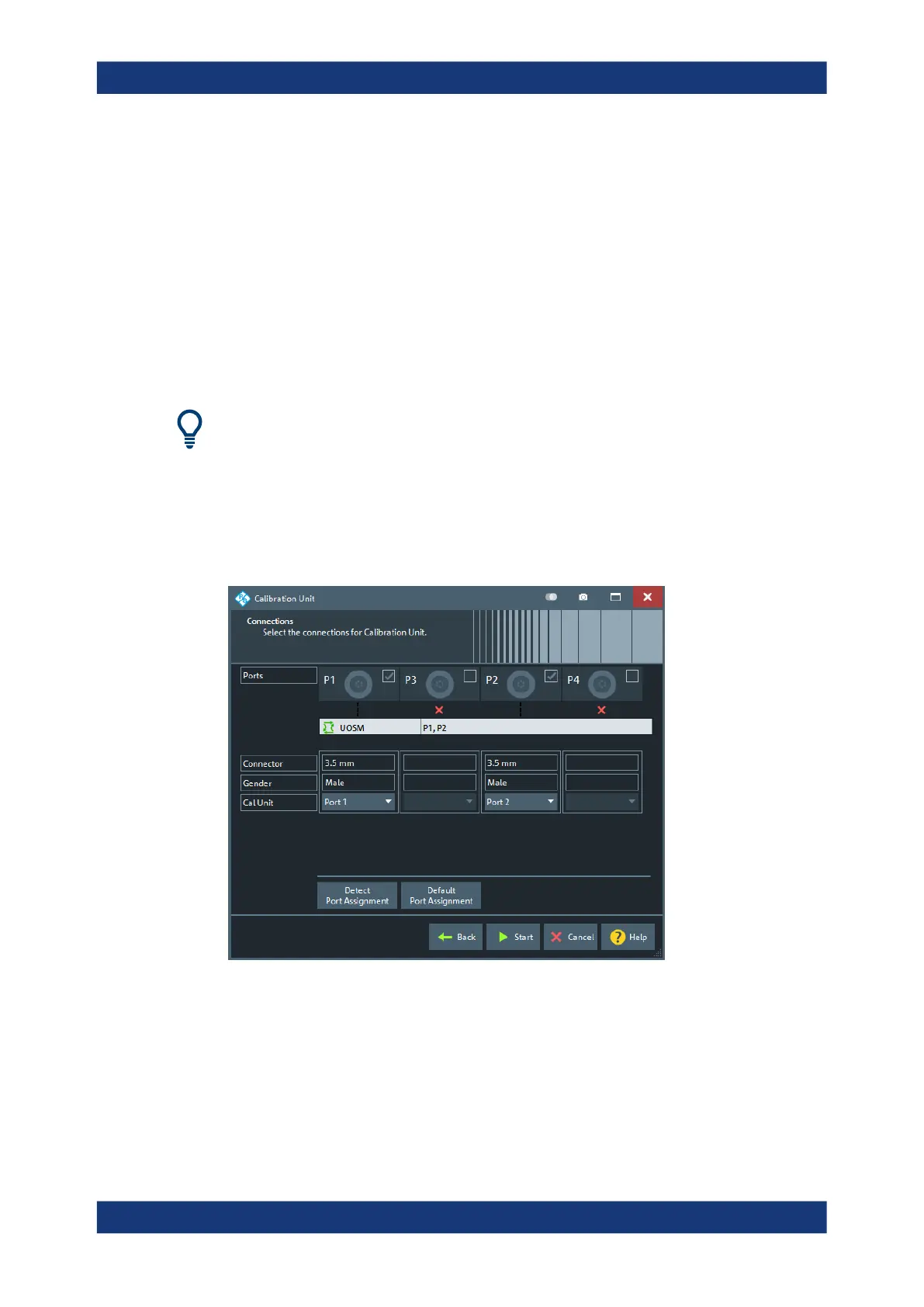

Figure 5-14: Calibration Unit wizard, step 2: Connections
Cal softtool
