R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
541User Manual 1173.9163.02 ─ 62
Note: Calibration and port de-/activation.
The analyzer fimware automatically activates/deactivates ports during/after a (success-
ful) calibration:
●
Calibrated ports that were previously disabled, are automatically enabled as single-
ended logical ports.
●
An uncalibrated port that is not used by a measurement (i.e. the port is not required
by any trace of the related channel) is disabled.
Remote command:
The port parameters in many calibration commands define the calibrated ports.
Type
Selects the calibration type.
Remote command:
[SENSe<Ch>:]CORRection:COLLect:METHod:DEFine <CalName>, MTOSm |
MUOSm | MOSM | MTRL, ...

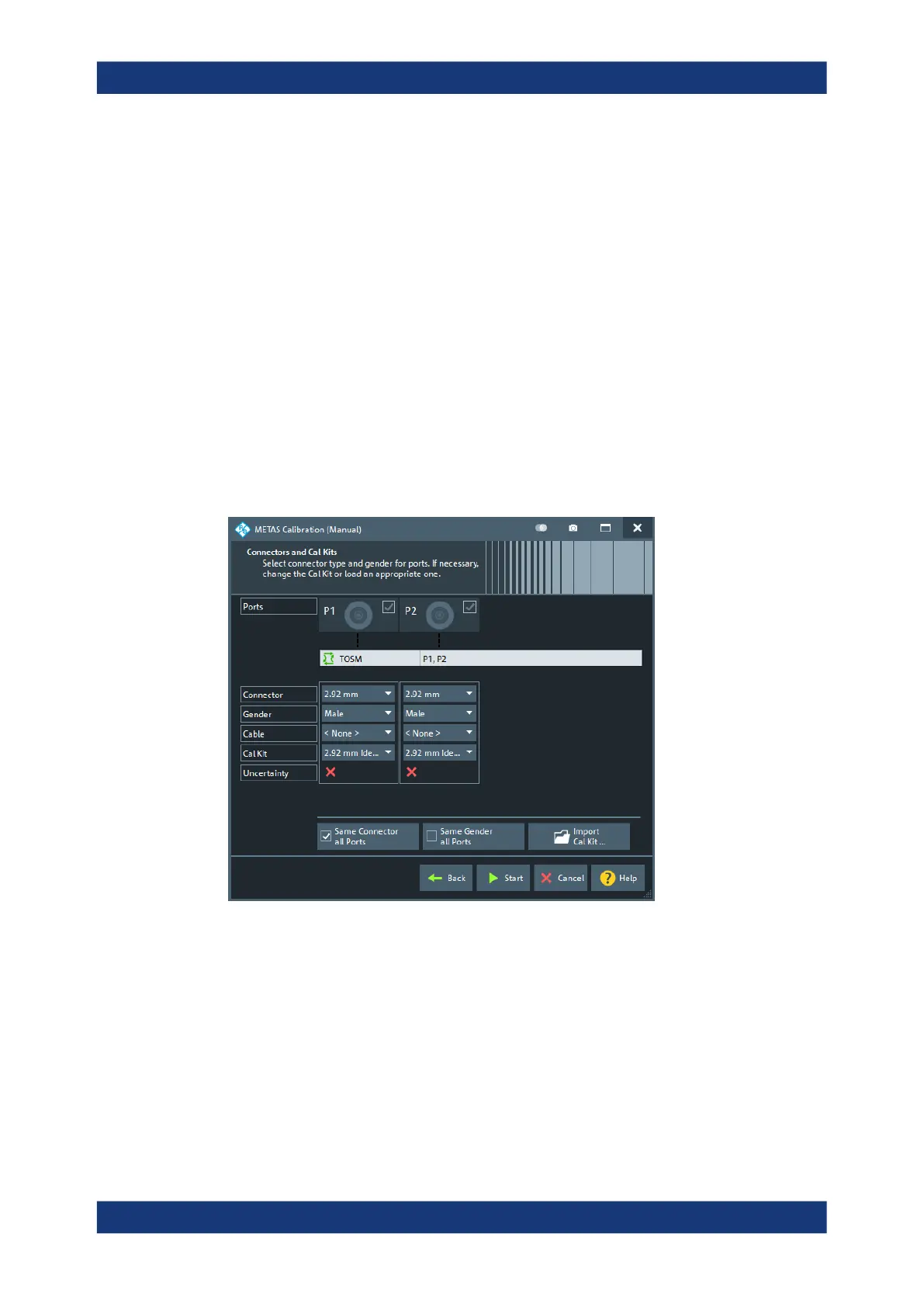

Step 2: Connectors and Cal Kits
Connector/Gender
Specifies the connector and gender of the ports selected in Step 1: Ports and Type.
Note that METAS compatible file formats do not contain information about the related
connector type, so you have to make sure to choose a suitable Cal Kit.
Remote command:
see Connector / Gender
Cable
Allows you to specify which cables are connected to the related ports.
