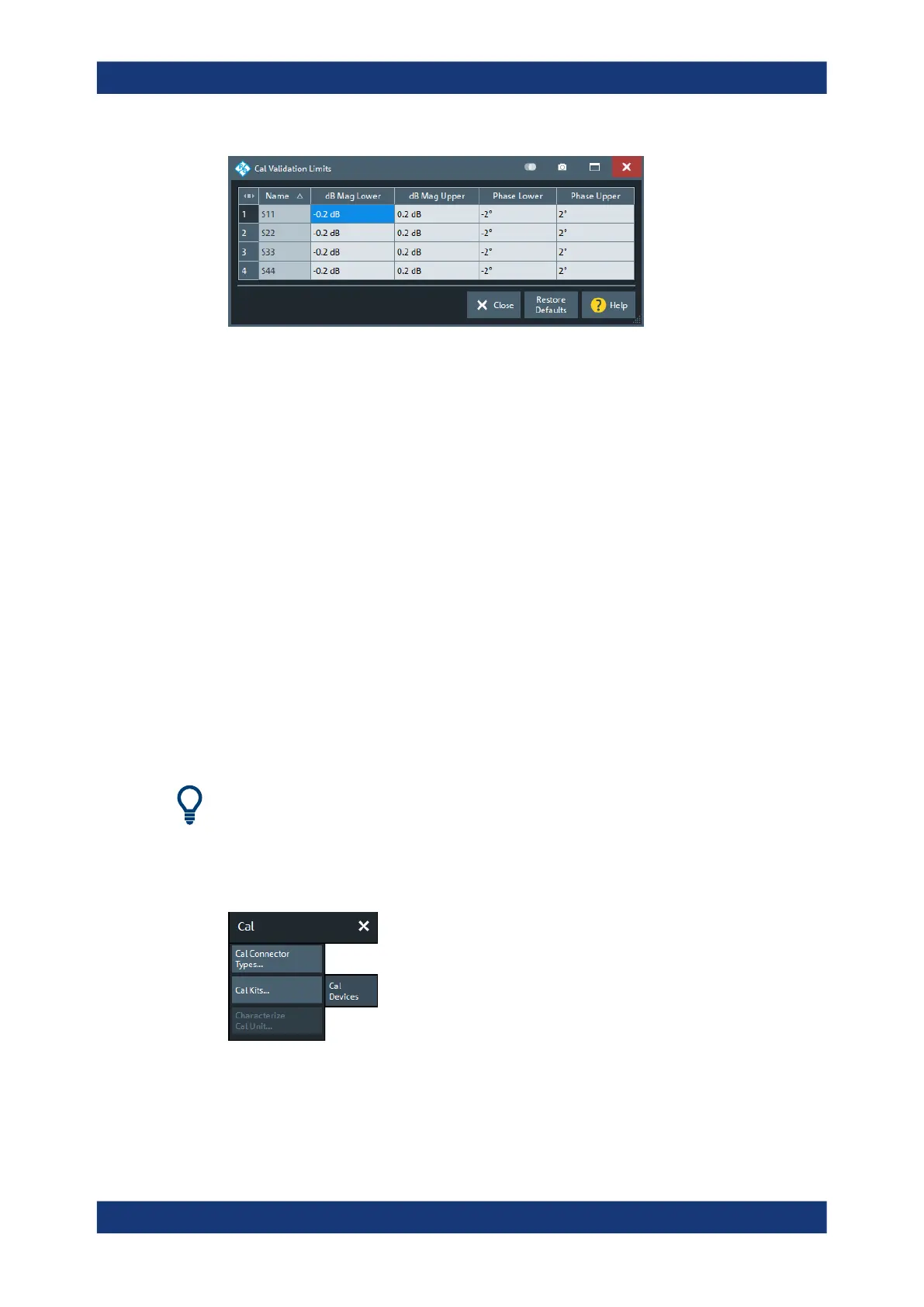

Defaults are ±0.2 dB for magnitude and ±2° for phase deviations.
Remote command:
CALCulate:CALValidate:RESPonse:MAGNitude:LOWer
CALCulate:CALValidate:RESPonse:MAGNitude:UPPer
CALCulate:CALValidate:RESPonse:PHASe:LOWer
CALCulate:CALValidate:RESPonse:PHASe:UPPer
Preferences
Allows you to configure the behavior of the validation diagrams and traces.
Unchecking "Auto Scale" prevents the traces from scaling as the measurement and/or
standard changes. Unchecking "Average On" turns off averaging.
Basic Mode
Switches to Basic mode
5.11.2 Cal Devices tab
Provides access to all functions for calibration kit management and cal unit characteri-
zation.
Background information
Refer to the following sections:
●
Chapter 4.5.2, "Calibration standards and calibration kits", on page 174
●
Chapter 4.5.5.3, "Characterization of calibration units", on page 185
The buttons in the "Cal Devices" tab open the following dialogs:
●
"Cal Connector Types...": See Chapter 5.11.2.1, "Cal Connector Types dialog",
on page 512
●
"Cal Kits...": See Chapter 5.11.2.2, "Calibration Kits dialog", on page 514
Cal softtool
