GUI reference
R&S
®
ZNB/ZNBT
320User Manual 1173.9163.02 ─ 62

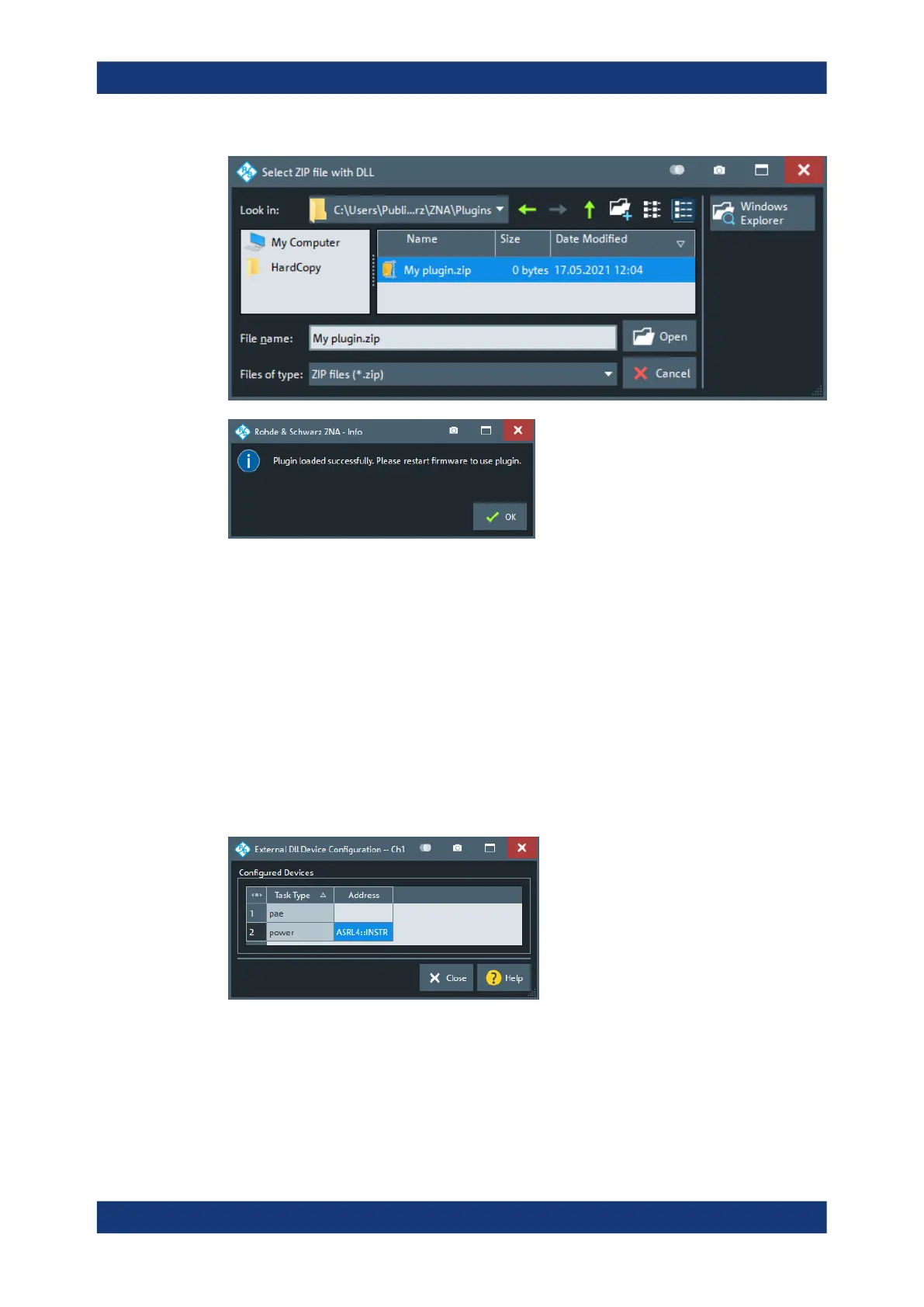

The firmware must be run as administrator to add or remove custom plugins. Once
installed, standard user privileges are sufficient to use a plugin's functionality.
Remote command:
[SENSe:]CDLL:ADD
[SENSe:]CDLL:REMove
Configure Device Adress
Opens an additional dialog that allows you to specify the addresses of external devices
the external DLL requires to complete its tasks. For each task type, a single device
address can be configured.
The address syntax is DLL-specific: the DLL manages the connection to the external
device. In the example below, the DLL expects a VISA resource string and the VNA
operator indicates that the device is connected to (virtual) COM port 4.
Remote command:
[SENSe<Ch>:]CDLL:TASK:ADDRess
5.2.12.3 Trace Definition Dialog
Specifies a custom trace that is provided by an external DLL.
Meas softtool
