GUI reference
R&S
®
ZNB/ZNBT
458User Manual 1173.9163.02 ─ 62
Remote command:
[SENSe:]CORRection:COLLect:AUTO:PORTs:CONNection?

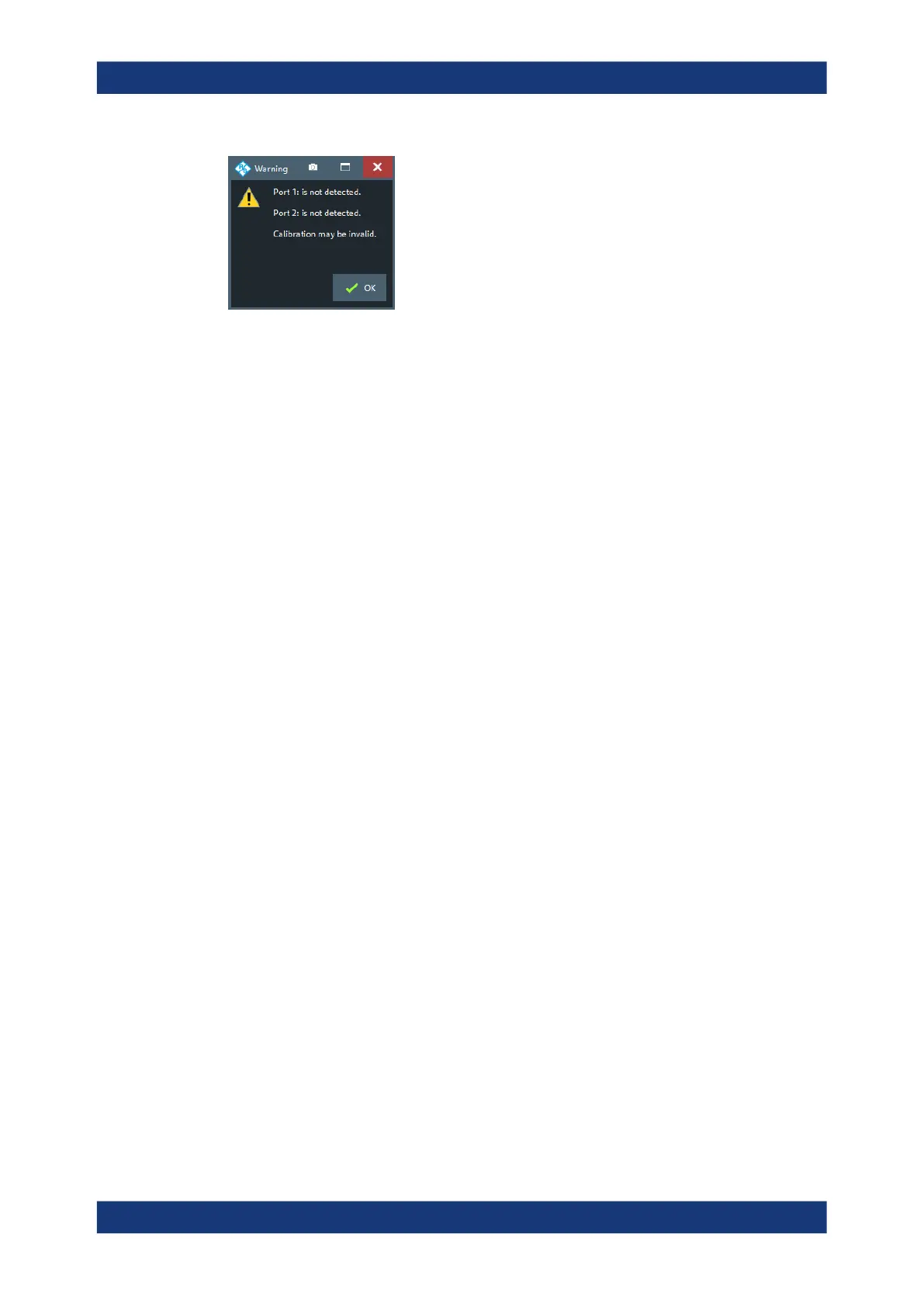

Prev/Next
Navigates between the port assignments. Only available if multiple port assignments
are required.
Apply/Cancel
Apply the calculated system error correction to the active channel (or to all channels in
the active recall set, if all channels were calibrated).
The Apply button is enabled when calibration sweeps have been successfully per-
formed for all required port assignments.
Remote command:
[SENSe<Ch>:]CORRection:COLLect:AUTO
[SENSe<Ch>:]CORRection:COLLect:AUTO:PORTs
[SENSe<Ch>:]CORRection:COLLect:AUTO:PORTs:TYPE
[SENSe<Ch>:]CORRection:COLLect:AUTO:TYPE
[SENSe<Ch>:]CORRection:COLLect:AUTO:SAVE
Extended cal unit settings:
MMEMory:AKAL:FACTory:CONVersion
MMEMory:AKAL:USER:CONVersion
SYSTem:COMMunicate:AKAL:CONNection
SYSTem:COMMunicate:AKAL:MMEMory[:STATe]
5.11.1.4 Calibration Unit wizard (MultiCal)
The "MultiCal" version of the Calibration Unit wizard guides you through the setup and
simultaneous acquisition of multiple automatic system error corrections.
Access: Channel – [Cal] > "Start Cal" > "Calibration" – "Start... (Cal Unit)"
The wizard proceeds through the following steps:
1. "Ports": Allows you to define the system error corrections (test ports, calibration
unit, characterization, calibration type).
2. "Connections": Allows you to define the port assignments between the R&S ZNB/
ZNBT and the calibration unit or units.
3. "Cal Unit": Allows you to acquire measurement data for the selected port assign-
ments and the required calibration standards (provided by the calibration unit). Cal-
Cal softtool
