5.11.1 Start Cal tab
The "Start Cal" tab provides access to all functions for automatic or manual calibration.
Calibration of the R&S ZNB/ZNBT is a fully guided process.
Background information
Refer to the following sections:
●
Chapter 4.5, "Calibration", on page 162
●
Chapter 4.5.5, "Automatic calibration", on page 181
●
Chapter 4.5.6, "Scalar power calibration", on page 193
●
Chapter 4.5.7, "SMARTerCal", on page 199
●
Chapter 4.1.5, "Data flow", on page 98
It is possible to set up, perform and activate multiple system error corrections or
SMARTerCals in a single calibration procedure. However, this Multiple Cal in Calibra-
tion Wizard feature is disabled by default and has to be activated in the "Calibration"
tab of the "System Config" dialog.
5.11.1.1 Controls on the Start Cal tab
●
The "Start Auto Cal" and "Start... (Cal Unit)" buttons are only active if a calibration
unit is connected to the analyzer.
●
If there is more than one channel in the current recall set at the time you initiate a
calibration, the Channel Selection for Calibration dialog is opened.

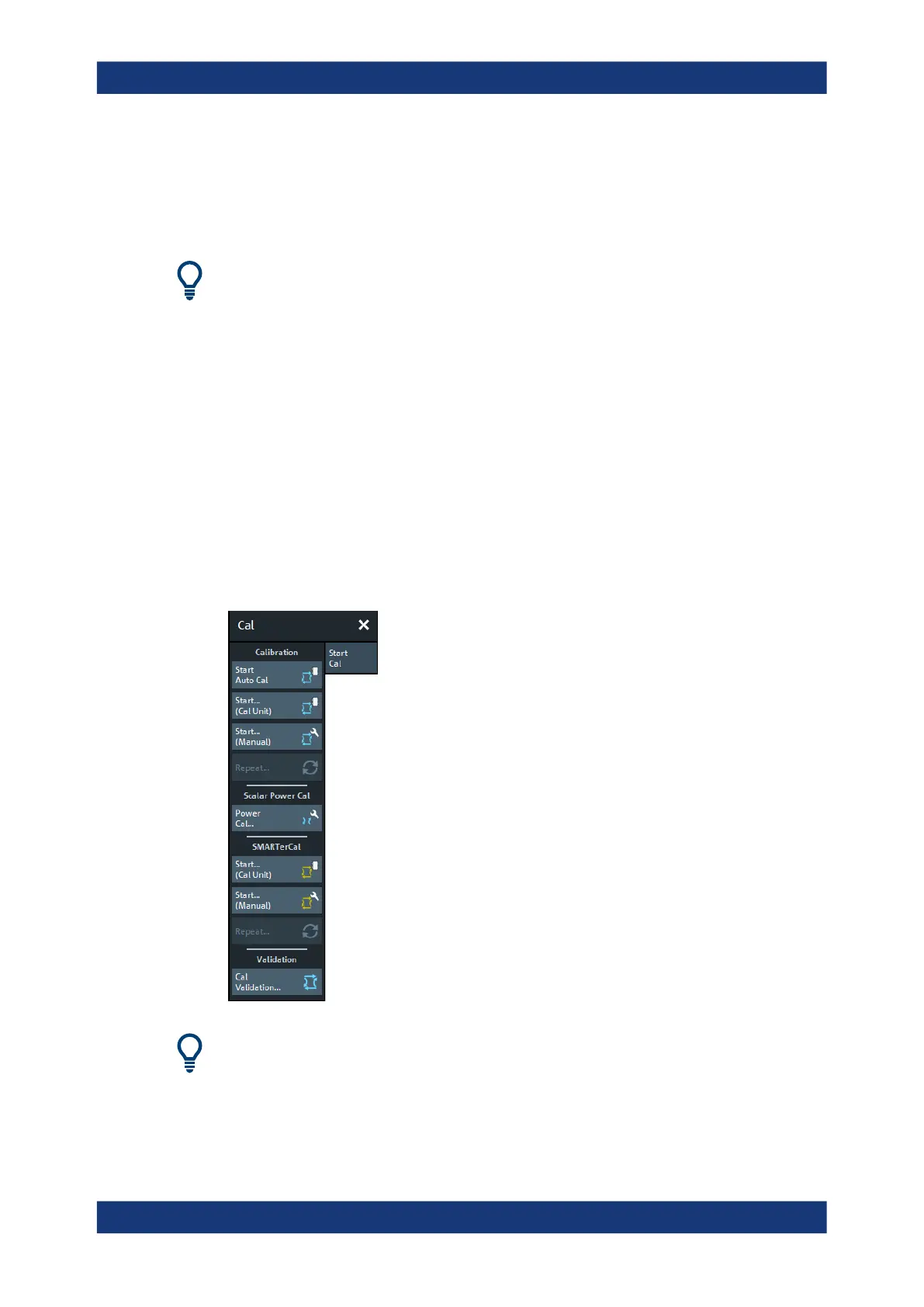

Cal softtool
