Access: [Applic] key or "Application > Rise Time" menu

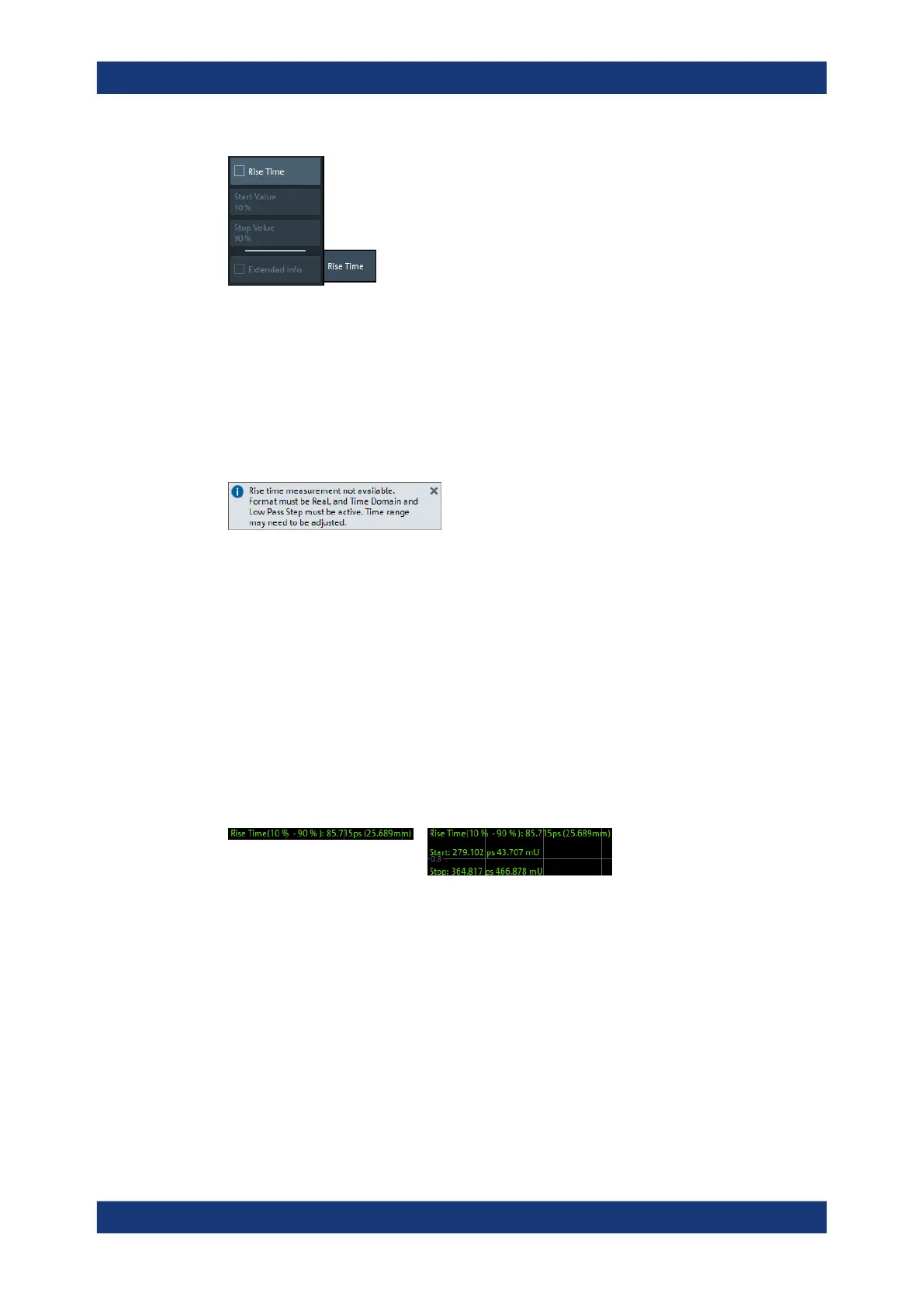

Rise Time
Enables/disables the rise time measurement.
The rise time measurement can only be performed if the active trace is Real, Time
Domain is enabled, and the transformation Type "Low Pass Step" is used. The latter, in
turn, requires the stimulus grid to be harmonic.
If the rise time measurement cannot be enabled, a message is displayed:
Instead of performing the required configuration changes manually, you may also use
the "Auto Setup" button of the info field to let the firmware do this for you.
Remote command:
CALCulate<Chn>:TTIMe:STATe
Start Value / Stop Value
Defines the lower/upper percentage for the rise time measurement.
Remote command:
CALCulate<Chn>:TTIMe:THReshold
Extended Info
Defines whether the info field for the rise time measurement should only provide basic
information (default) or extended information:
Figure 5-80: Rise time info, basic vs. extended
Remote command:
CALCulate<Chn>:TTIMe:DATA?
5.16.2.10 Skew tab
The "Skew" tab allows you to enable and configure the Skew Measurement.
Access: System – [Applic] > "TDR" > "Skew"
Applic softtool
