R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
684User Manual 1173.9163.02 ─ 62

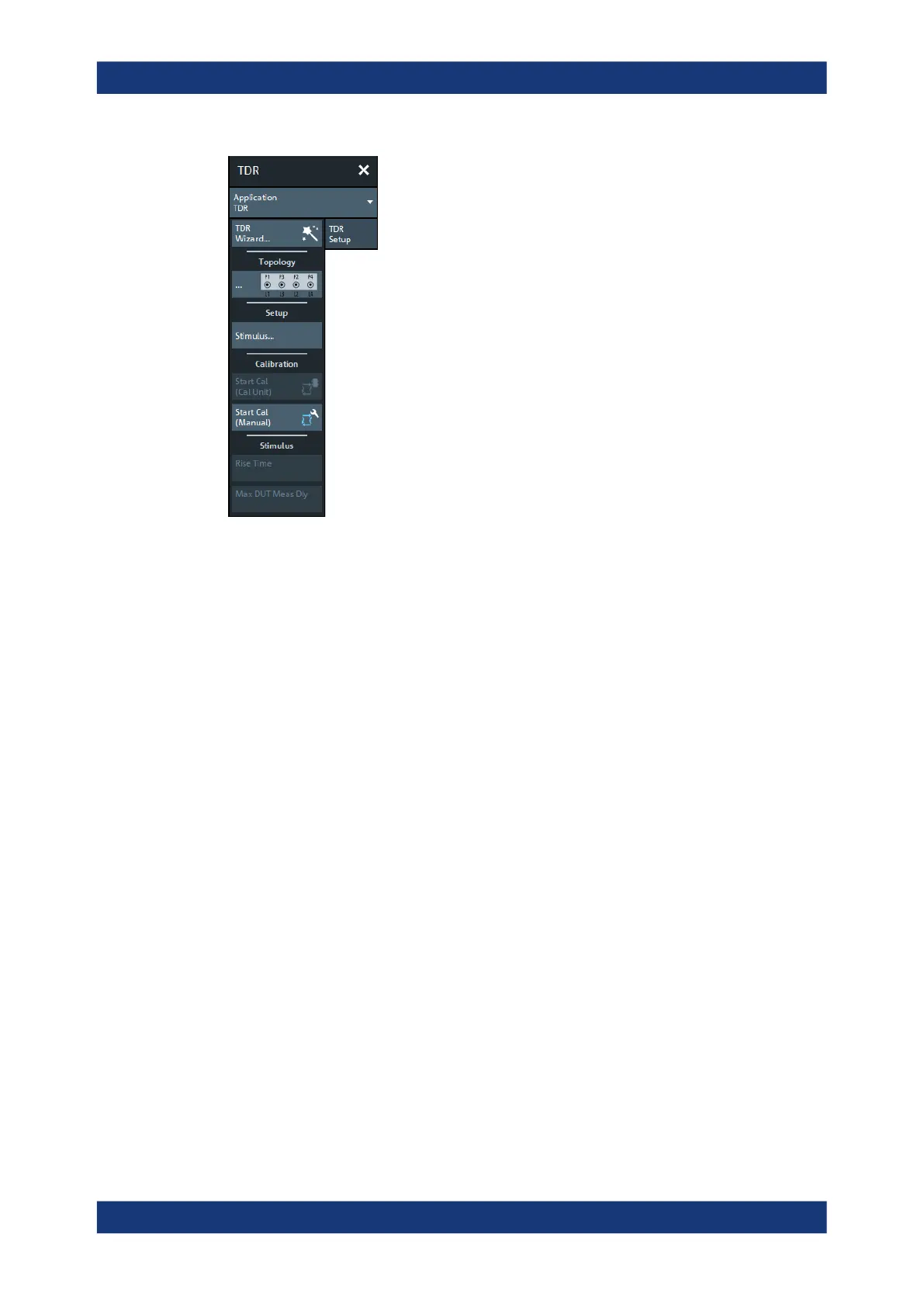

The "TDR Setup" contains the following sections/controls:
●
"TDR Wizard..."
Opens the "TDR Wizard" (see Chapter 5.16.2.2, "TDR Wizard", on page 684)
●
"Topology"
Opens the "Balanced Ports" dialog that allows to configure the logical DUT ports
(see Chapter 5.2.1.3, "Balanced Ports dialog", on page 289)
●
"Stimulus..."
Opens the TDR Stimulus Settings dialog that allows to configure the frequency
sweep whose results are then used for the time domain transformation
●
"Calibration"
The "Calibration" section provides easy access to (basic) manual and automatic
calibration functions (see Chapter 5.11.1, "Start Cal tab", on page 446)
●
"Stimulus"
The "Stimulus" section provides quick access to settings that are also available in
the TDR Stimulus Settings dialog. These settings are only available in Automatic
Harmonic Grid mode, which is activated automatically when opening the "TDR
Stimulus Settings" dialog.
5.16.2.2 TDR Wizard
With the "TDR Wizard", you can quickly set up and calibrate a TDR measurement. It
comprises the following steps:
●
Step 1: Port Topology
●
Step 2: Stimulus Settings
Access: System – [Applic] > "TDR" > "TDR Setup" > "TDR Wizard..."
Applic softtool
