GUI reference

R&S

ZNB/ZNBT

611User Manual 1173.9163.02 ─ 62

Note: The loaded file is stored in the active recall set. Persisted recall sets contain the

full (de-)embedding data so that they can be transferred to other instruments.

Remote command:

MMEMory:LOAD:VNETworks<Ch>:PPAir:DEEMbedding<ListId>

MMEMory:LOAD:VNETworks<Ch>:PPAir:EMBedding<ListId>

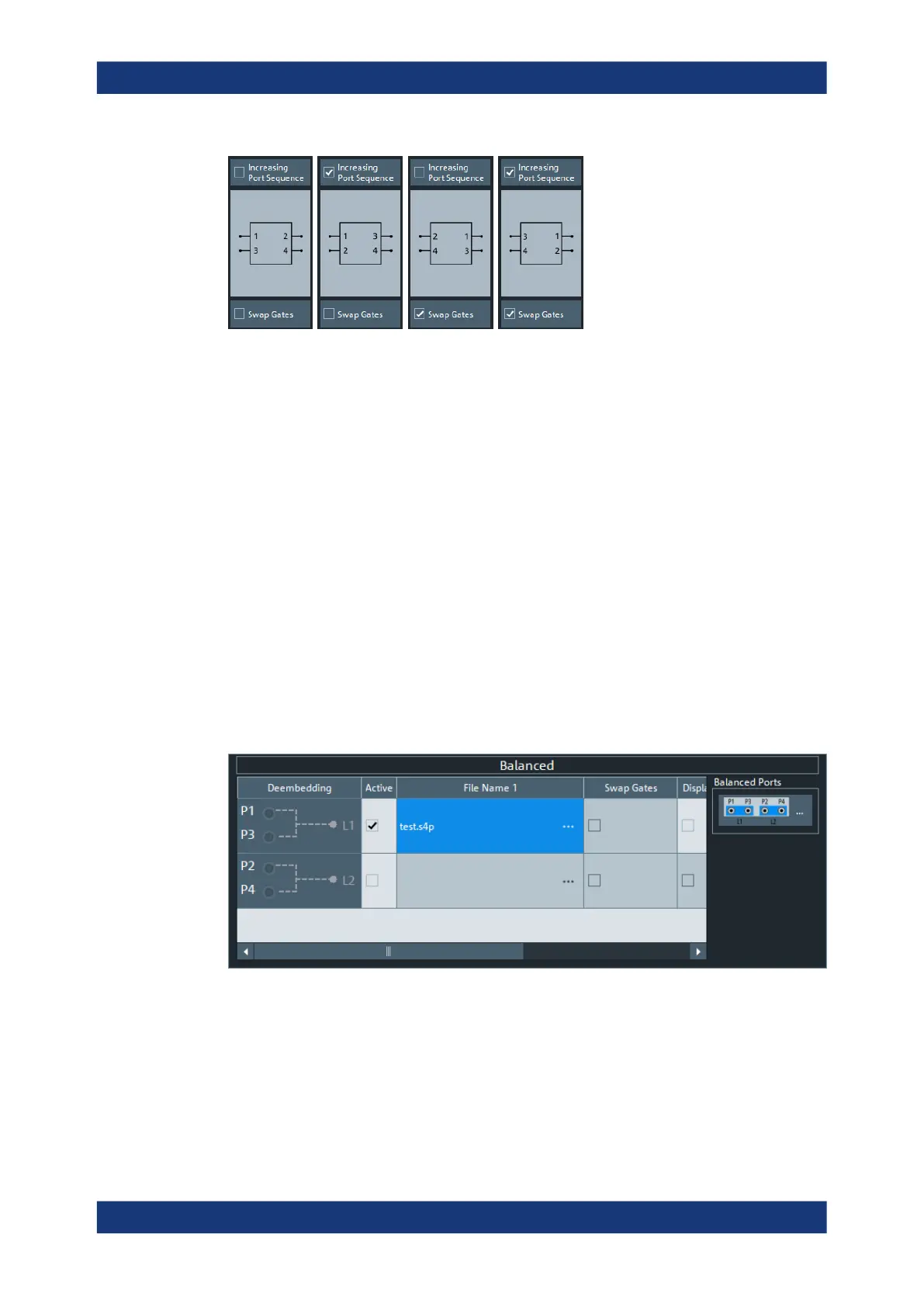

5.13.1.5 Balanced panel

This panel allows you to activate or deactivate deembedding/embedding of balanced

ports.

Access: Overview panel > "Balanced"

If the selected Balanced tab is defined using one or more touchstone files, these files

can be selected from the dock widget ("...").

For network types that are defined using one or more touchstone files, the required

files can also be selected from here ("...").

If necessary, use the button on the right-hand side to open the Balanced Ports dialog

and change the balanced port configuration.

This panel can also be activated by selecting the Balanced tab. Refer to its description

for background information, parameters and additional remote commands.

Active

The checkboxes in the "Active" column activate or deactivate the configured de-/

embeding for the related balanced port (i.e. adds or removes it to/from the calculation

flow) without changing its parameters.

Offset Embed softtool
