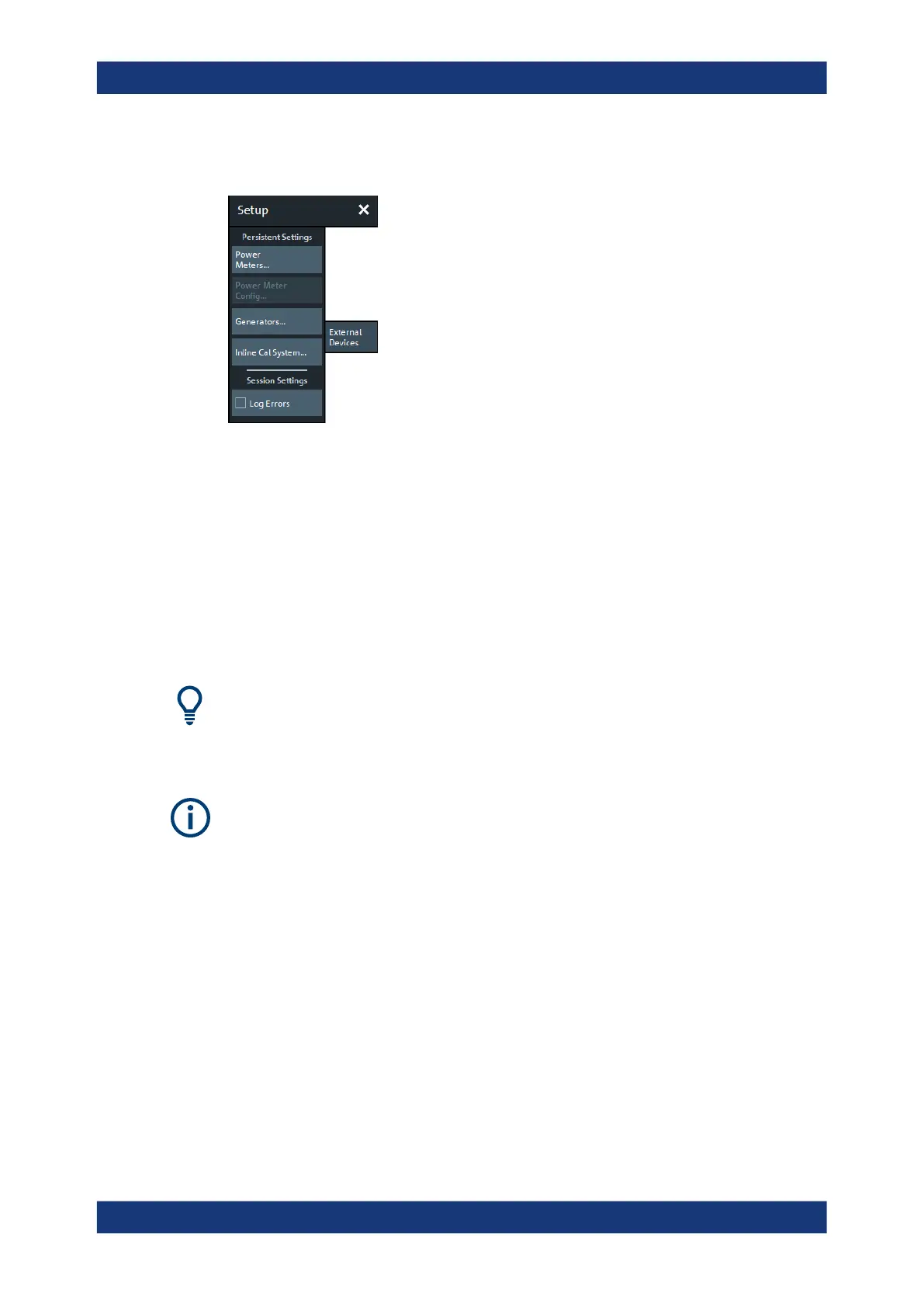

5.18.4.1 Controls on the External Devices tab
The buttons in the "External Devices" panel open the following dialogs:
●
"Power Meters...", see Chapter 5.18.4.2, "External Power Meters dialog",
on page 780
●
"Power Meter Config...", see Chapter 5.18.4.3, "External Power Meter Config dia-
log", on page 784
This button is active only if at least one external power meter is online (physically
connected, switched on, ready to be used).
●
"Generators...", see Chapter 5.18.4.4, "External Generators dialog", on page 785
●
"Inline Cal Systems", see Chapter 5.18.4.5, "Inline Calibration Systems dialog",
on page 789
Switch matrices can be configured on the "External Ports" tab, see Chapter 5.18.5.3,
"External Matrices dialog", on page 791 and Chapter 5.18.5.5, "Switch Matrix RF
Connections dialog", on page 796.
Remote control via GPIB
To control external devices via GPIB, you have to use an Chapter 4.7.26, "USB-to-IEC/
IEEE adapter", on page 265.
Log Errors
Enables the transfer of error messages for external devices (e.g. connection errors) to
the error log. The error log appears in the "Info" dialog; see Chapter 5.18.1.3, "Info dia-
log", on page 766.
Remote command:
n/a
5.18.4.2 External Power Meters dialog
The "External Power Meters" dialog configures external power meters so that they can
be used for measurements and power calibrations.
Access: System – [Setup] > "External Devices" > "Power Meters..."
Setup softtool
